Sensor - Crash Accelerometer - Front Bumper - Remove And Replace: Remove
- Remove the front fascia. See Fascia Assembly - Front (Remove and Replace) .

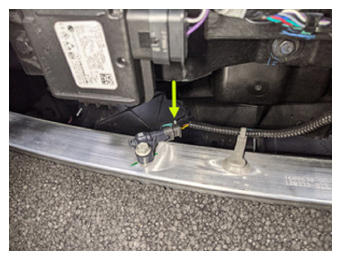

- Release the locking tab, and then disconnect the LH front bumper crash accelerometer sensor connector.

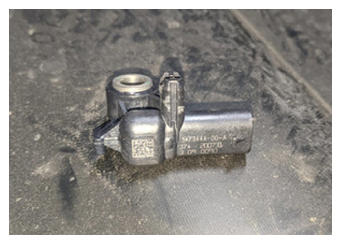

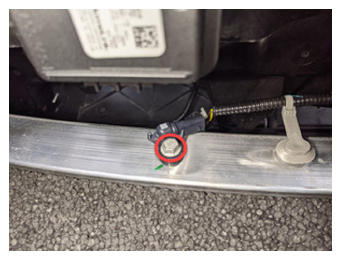

- Remove the bolt that attaches the LH front bumper crash accelerometer sensor to the vehicle, and then remove the sensor from the vehicle.
10 N.m (7.4 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
