Sensor - Pressure Tube - Remove and Replace: Removal

  1. Remove the front fascia. See Fascia Assembly - Front (Remove and Install) .
  2. Remove the front bumper beam foam from the front bumper beam. See Foam - Bumper Beam - Front (Remove and Replace) .

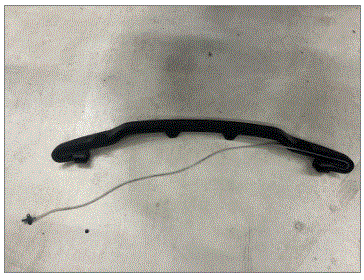

  3. Remove the pressure tube sensor from the front bumper beam foam.
    G00660938Courtesy of TESLA, INC.
