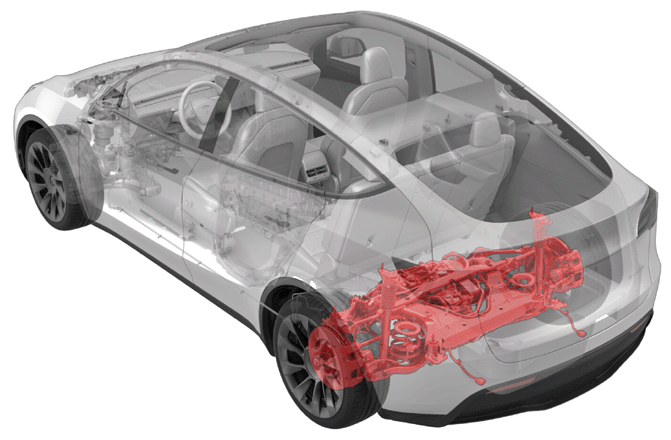

Subframe Assembly - Rear (3DU) - Remove And Install: Notes
Last modified: 24/07/2023 17:10:10
NOTE:
See PERSONAL PROTECTION
to make sure wearing proper PPE when performing the below procedure.
Revision History:
- 2023-06-15: Added shear plate small bolts torque figure for Structural Pack vehicles.
- 1134520-00-A Kit, EPB Release, Handheld
- 1129348-00-A XP-10 Power Supply, XP-10
- 1099645-00-B Fixture, Subframe, Model 3
- 1140311-00-A Lever Lock, HV Connector, Model 3
