IP Carrier - Remove And Install: Install
- Install IP carrier onto cross car beamNOTE: Recommend assistance, Be cautious to clear harness clipped at top center of HVAC assembly

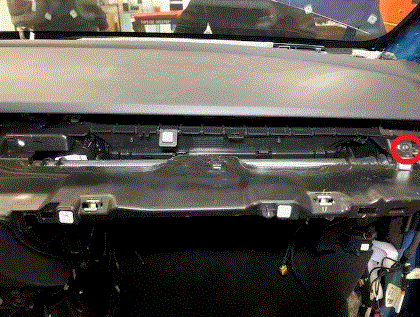

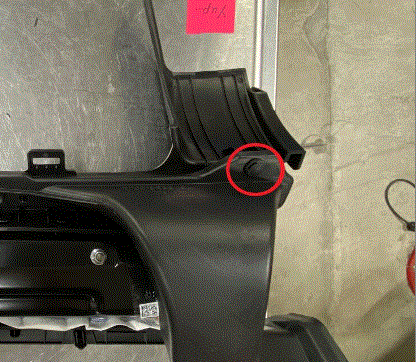

- Install screw securing IP carrier to cross car beam on upper RH sideNOTE: 1x screw, T20, 2.3 Nm

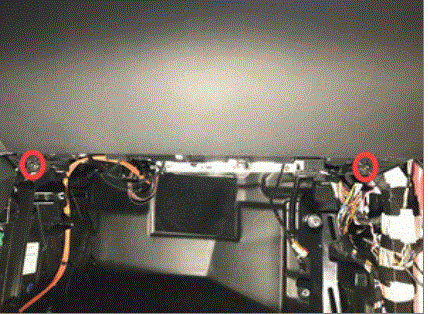

- Install screws securing IP carrier to cross car beam at upper centerNOTE: 2x screws, T20, 2.3 Nm

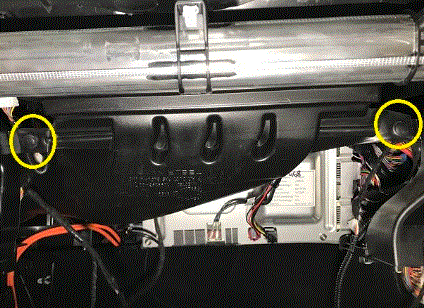

- Install screws securing IP carrier to cross car beam at lower centerNOTE: 2x screws, T20, 2.3 Nm

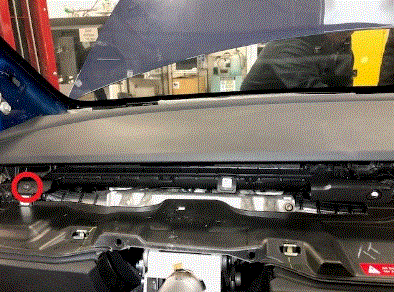

- Install screw securing IP carrier to cross car beam on upper LH sideNOTE: 1x screw, T20, 2.3 Nm
- Install screws securing IP carrier to cross car beam on lower LH sideNOTE: 2x screws, T20, 2.3 Nm

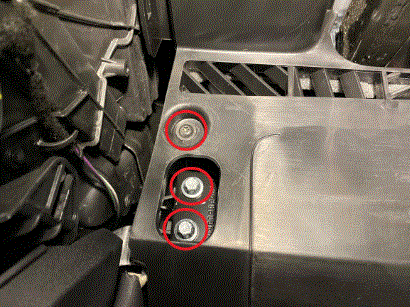

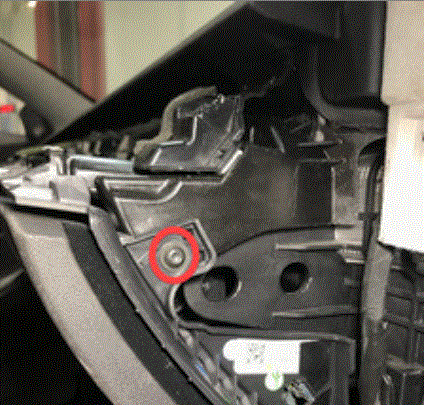

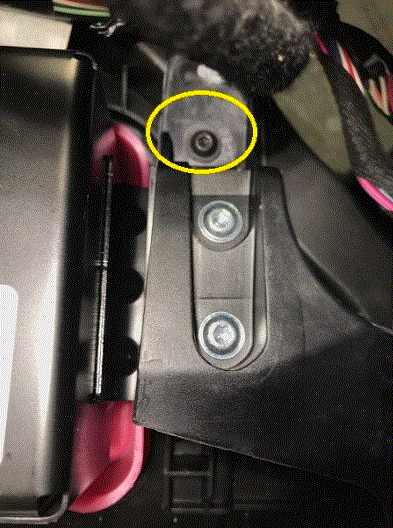

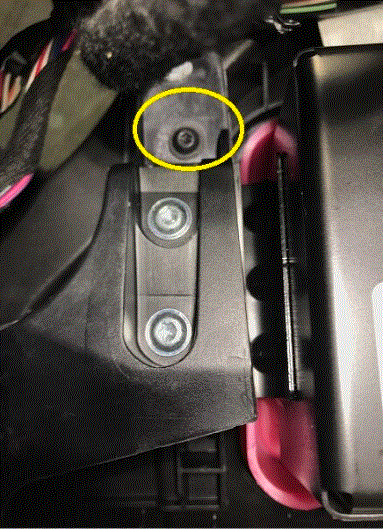

- Install screws securing LH side of IP carrier to cross car beam near passenger air bagNOTE: 2x screws, T20, 2.3 Nm

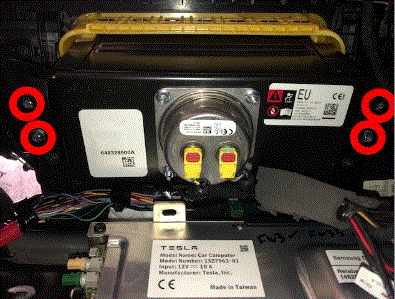

- Install passenger air bag into IP carrier and secure boltsNOTE: 4x patch bolts, E10, 8 Nm, Install new patch bolts

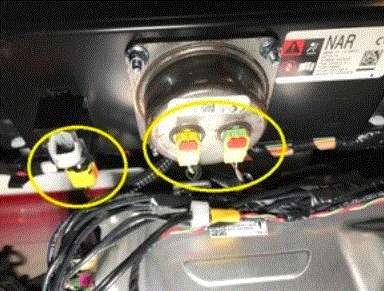

- Install connectors for passenger air bagNOTE: 3x connectors, 2x connectors for regions other than North America
- Install RH speaker to IP carrierNOTE: 3x screws, T20, 2.3 Nm, 1x connector

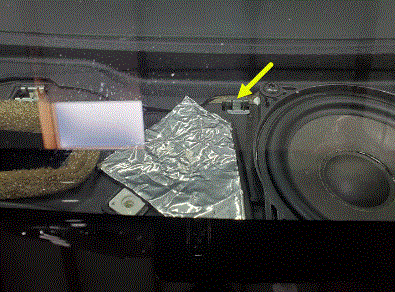

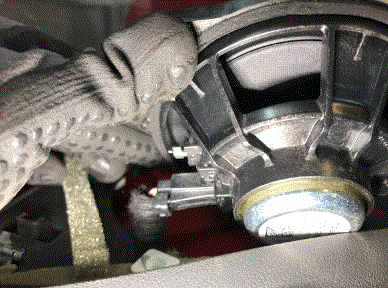

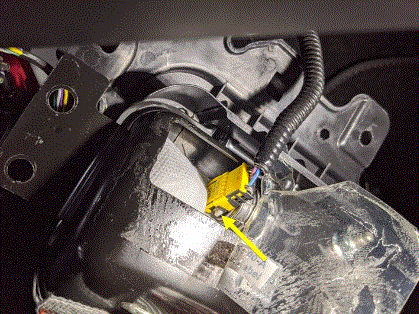

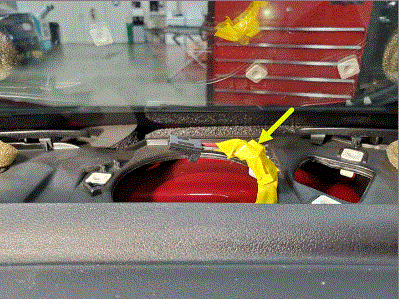

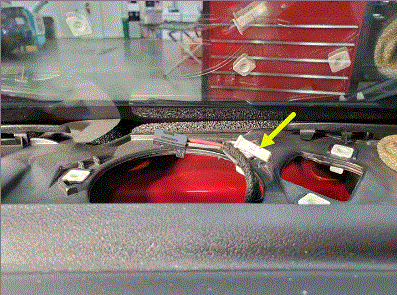

- Secure center tweeter connector onto speaker harnessNOTE: Do not install center tweeter, Use black tape, Yellow tape used in picture for demonstration purposes only

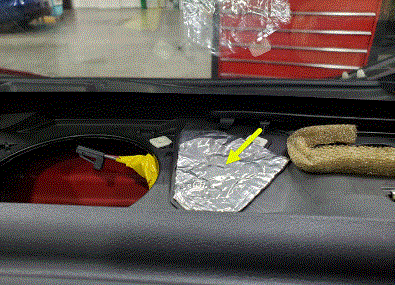

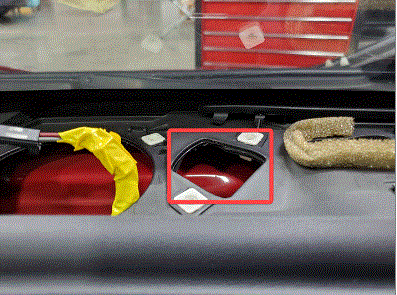

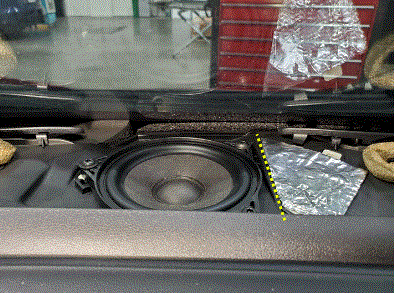

- Cover center tweeter holeNOTE: Cut butyl then install, Make sure butyl does not cover IP clips or interfere with speaker perimeter

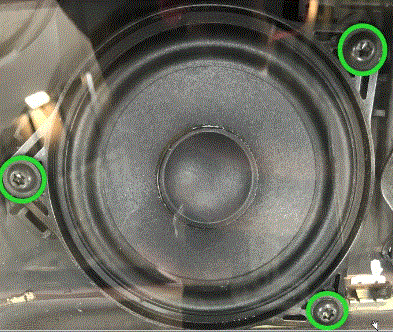

- Install center speaker to IPNOTE: 3x screws, T20, 2.3 Nm, 1x connector
- Install LH speaker to IP carrierNOTE: 3x screws, T20, 2.3 Nm, 1x connector
- Position defroster grill and lower tabs into position on IPNOTE: 6x tabs
- Secure clips securing defroster grill
9x clips

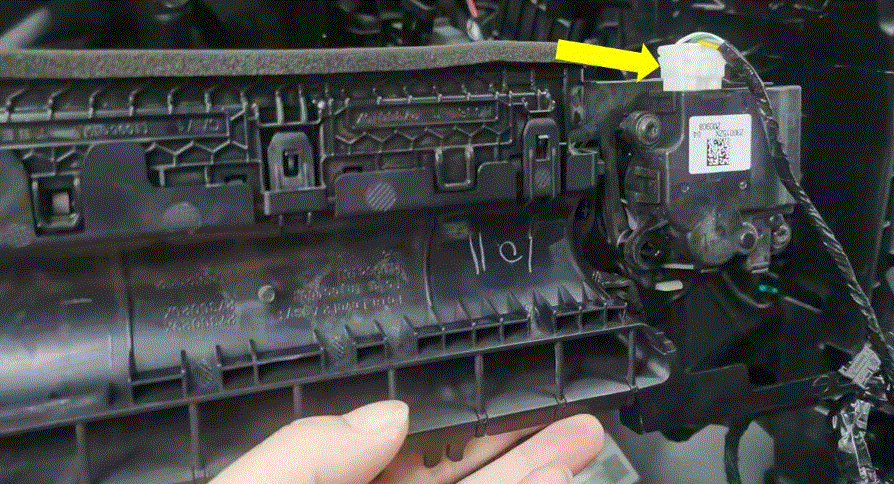

- Position LH air duct into IP and connect harness connector
1x connector
- Install LH air duct into IPNOTE: 1x screw, T20, 2.3 Nm
- Position RH air duct into IP and connect harness connectorNOTE: 1x connector
- Install RH air duct into IPNOTE: 1x screw, T20, 2.3 Nm

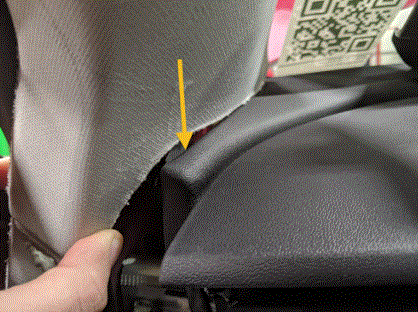

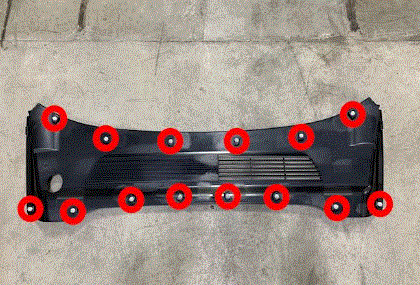

- Install IP brow finisher into vehicleNOTE: 16x clips, Need to lift top pad up slightly to slide IP brow finisher into position
- Install screws securing RH side of IP brow finisherNOTE: 4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws
- Install screws securing LH side of IP brow finisherNOTE: 4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws
- Install the RH IP air wave ductNOTE: 2x push clips

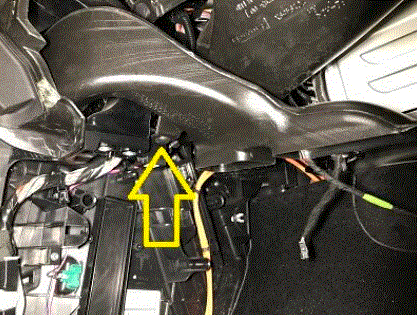

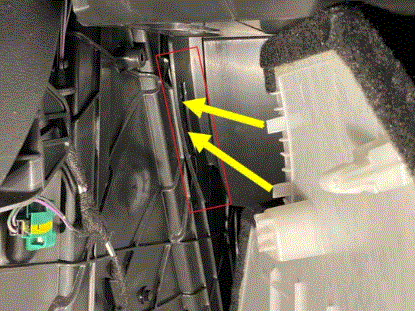

- Install the passenger footwell air ductNOTE: 1x push clip
- Install the glove box into IP carrierNOTE: 3x clips

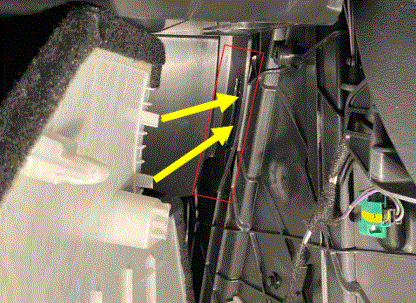

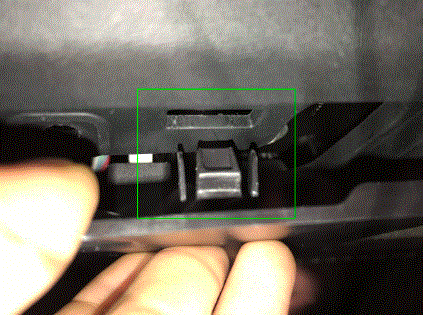

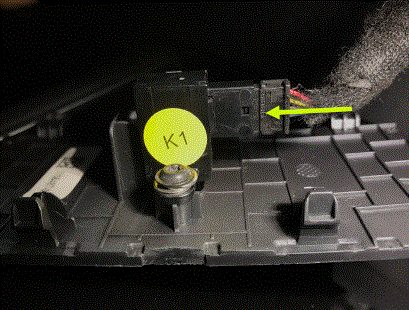

- Connect glove box assembly connectorsNOTE: 3x connectors, New puddle lamp harness routing prevent blocking movement of pawls

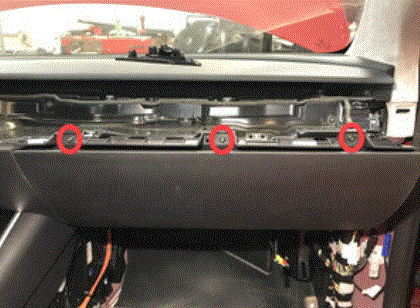

- Install screws securing glove box assembly to IP carrierNOTE: 6x screws, T20, 2.3 Nm
- Position center display neck housing into vehicle
- Position center display into vehicle

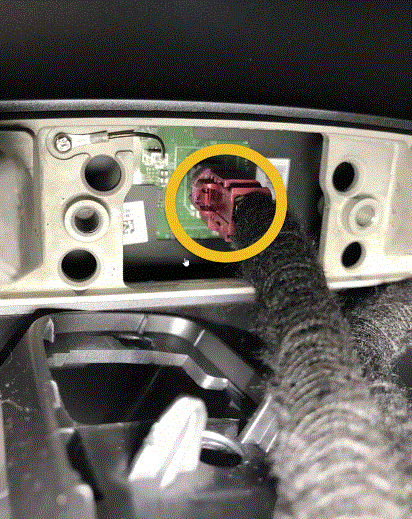

- Connect center displayNOTE: 1x connector
- Install retaining clip to center display connectorNOTE: 1x clip

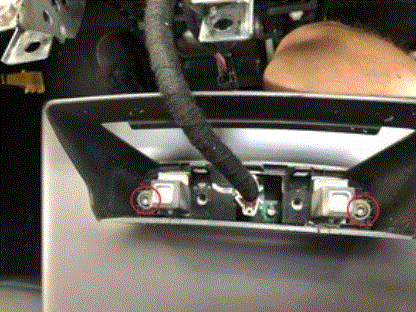

- Slide down neck housing and install bolts securing neck housing to center displayNOTE: 2x bolts, T30, 3 Nm,

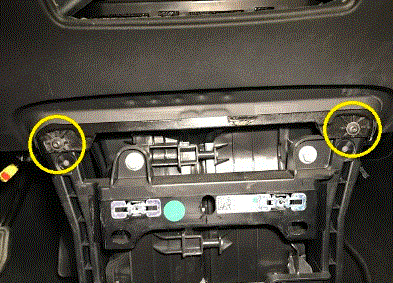

- Install center display to IP carrierNOTE: 2x patch bolts, 10mm, 16 Nm, Install new patch bolts, Slide towards front of vehicle

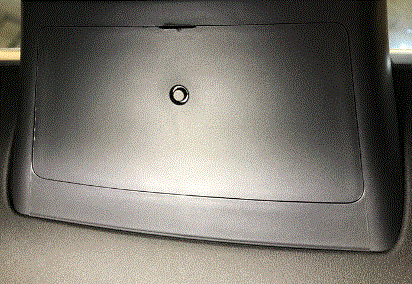

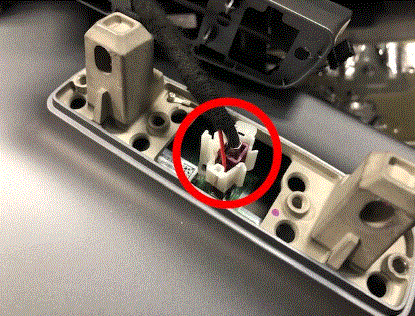

- Connect temperature sensor connector and install IP service panel into IPNOTE: 4x clips, 4x tabs, 1x connector

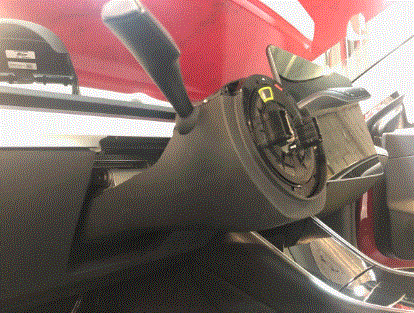

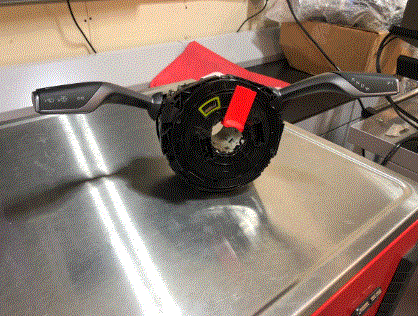

- Install SCCM onto steering column

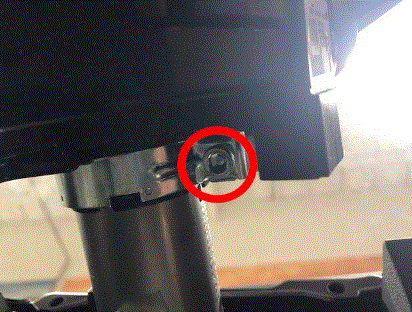

- Install bolt securing SCCM to steering columnNOTE: 1x bolt, 5mm allen, 9 Nm

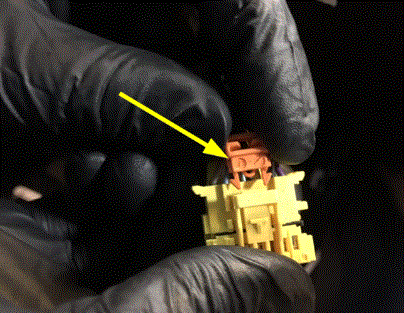

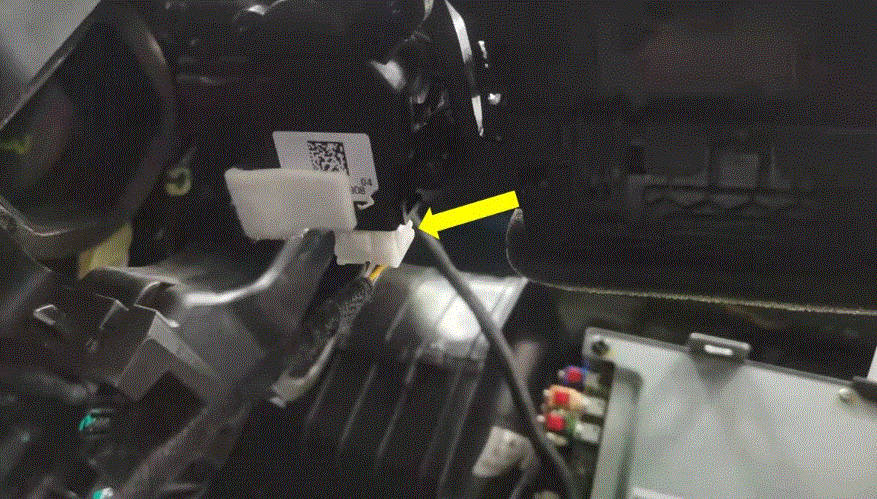

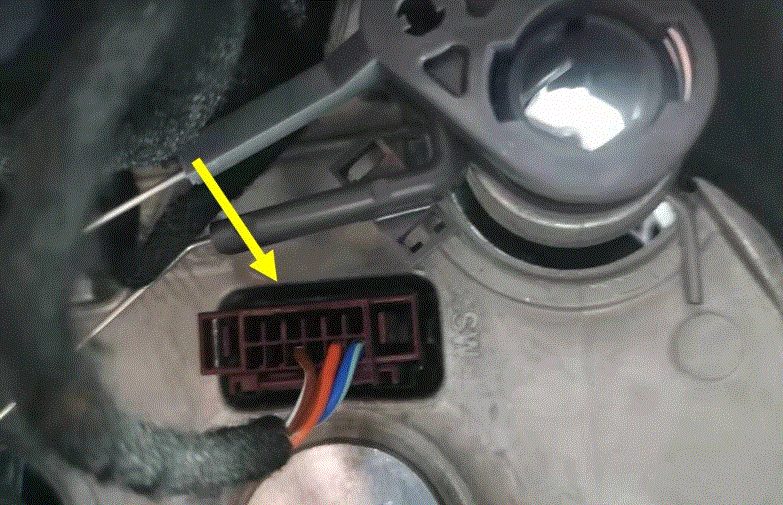

- Connect steering column control module (SCCM) assembly connectorNOTE: 1x connector, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly

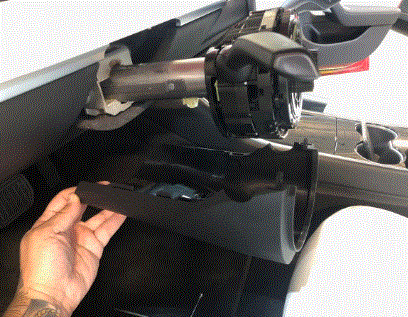

- Install lower shroud onto steering column
- Install lower screw securing lower shroud to steering columnNOTE: 1x screw, T20, 1.5 Nm

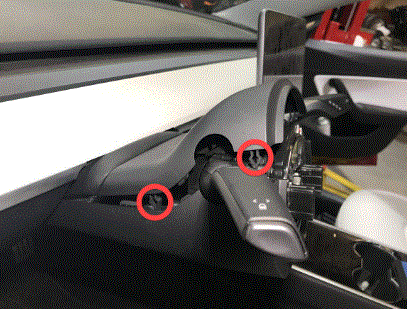

- Install upper screws securing lower shroud to steering columnNOTE: 2x screws, T20, 1.5 Nm
- Align the clips then press downward to install upper shroud onto lower shroudNOTE: 4x clips

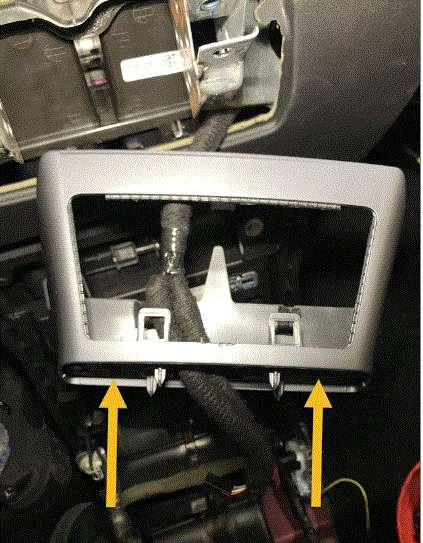

- Install main decor assemblyNOTE: 15x clips, 1x center clip
- Install RH air wave bezel cap to main decor assemblyNOTE: 2x clips
- Install LH air wave bezel cap to main decor assemblyNOTE: 2x clips

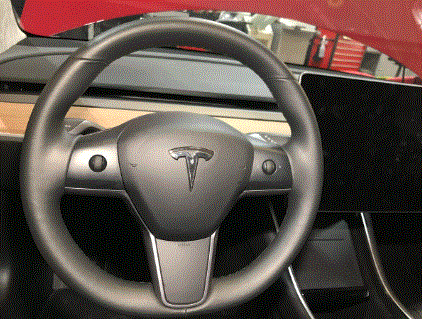

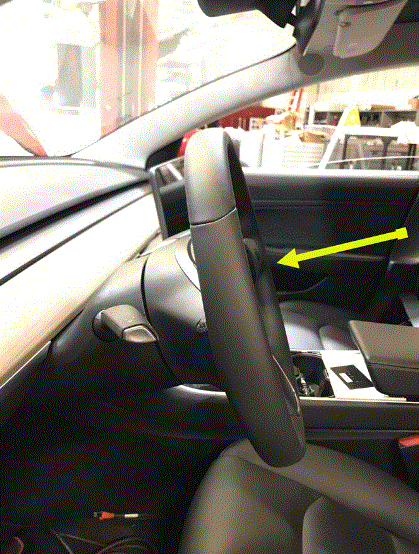

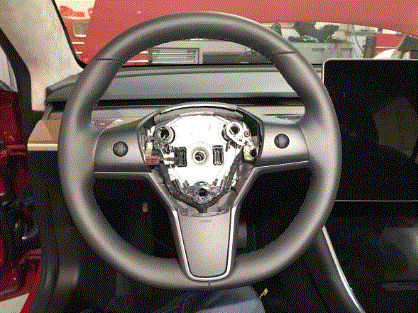

- Align steering wheel to steering column then position it for installationNOTE: Steering wheel and column are keyed

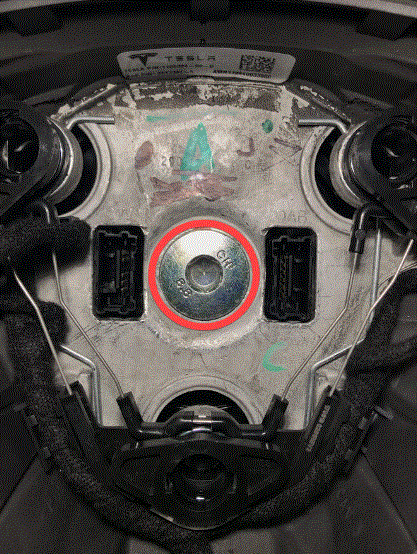

- Install bolt securing steering wheel to steering columnNOTE: 1x patch bolt, 10mm hex, 80 Nm, Install new patch bolt

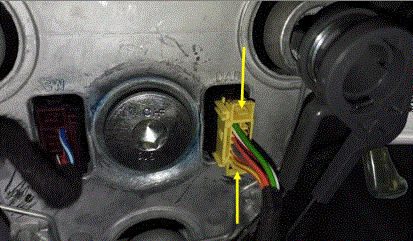

- Connect steering wheel connectorNOTE: 1x connector

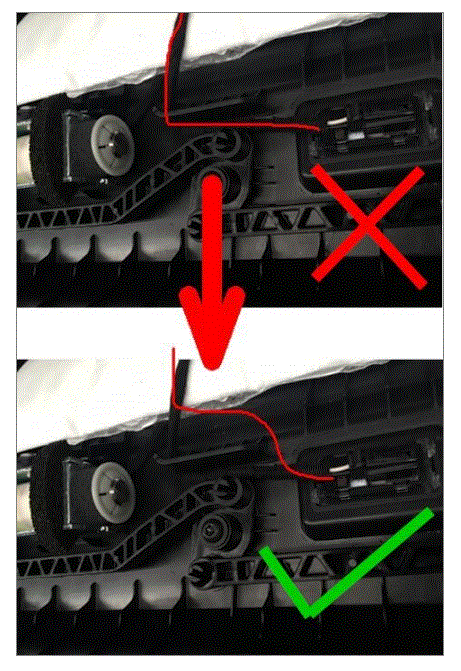

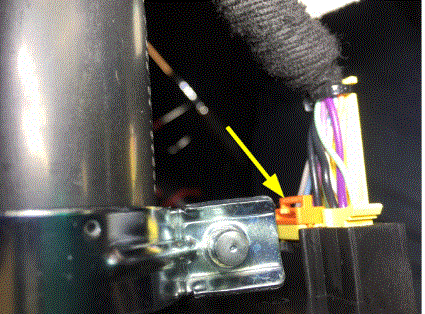

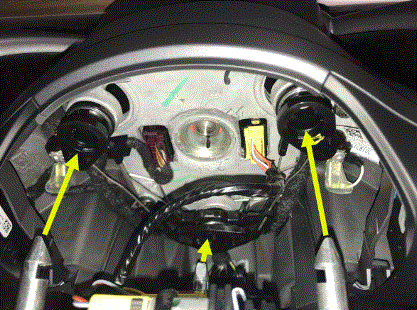

- Connect driver air bag connectorNOTE: 1x connector, 2x tabs, Make sure air bag harness doesn't get caught between driver air bag and horn mechanism

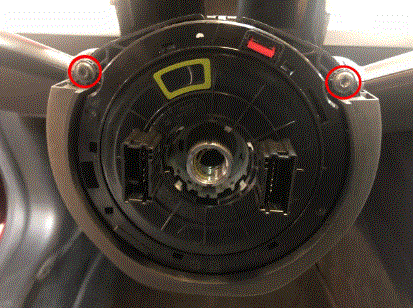

- Secure driver air bag assembly to steering wheel and verify it is fully engagedNOTE: 3x datums, 1x spring clip, Inspect to make sure lower horn bracket is properly secured to steering wheel before installing driver air bag

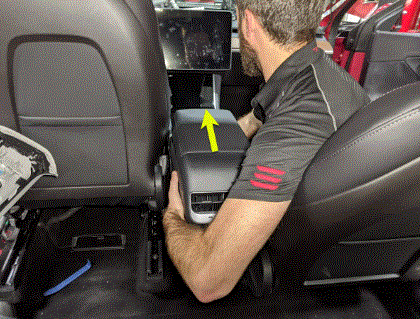

- Install center console onto vehicleNOTE: Recommend assistance, Tilt front of console downward, Slide assembly towards front of vehicle and tilt rear of console down into place

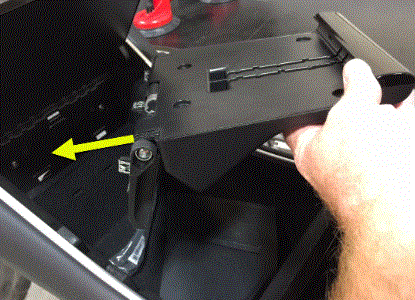

- Open front console rotating lidNOTE: Push down lightly to open

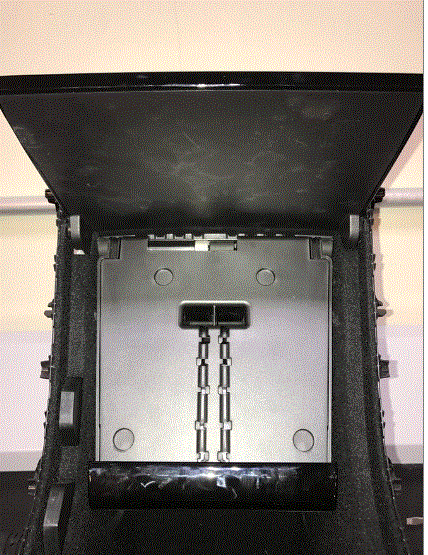

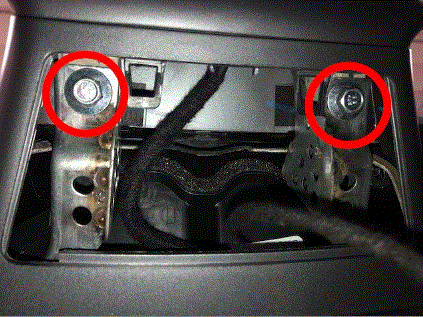

- Install console lid interior fastenersNOTE: 2x bolts, T20, 1.7 Nm, Top photo is early production vehicles, Bottom is for later production vehicles
- Install the phone dock tray with lower trim to the center consoleNOTE: 5x clips
- Install fasteners securing phone dock tray to center consoleNOTE: 2x screws, T20, 1 Nm, This step is only for early production vehicles
- Install charge cables into the USB portsNOTE: 2x cables
- Lower phone dock to original position
- Close rear console rotating lid
- Close front console rotating lidNOTE: This will avoid lid getting hung up on center display upon removal
- Install passenger knee air bagNOTE: 1x connector, Engage locking tab, Use caution not to damage connector/harness, Support air bag while connecting connector

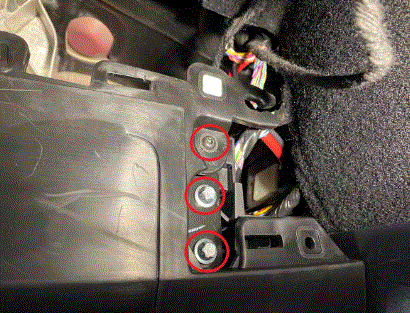

- Install fasteners securing passenger knee air bag to vehicleNOTE: 4x patch bolts, E10, 8 Nm, 2x screws, T20, 2 Nm, 1x push clip, Install new patch bolts

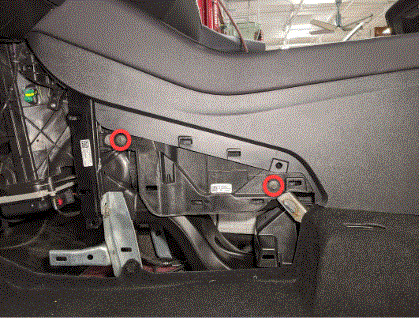

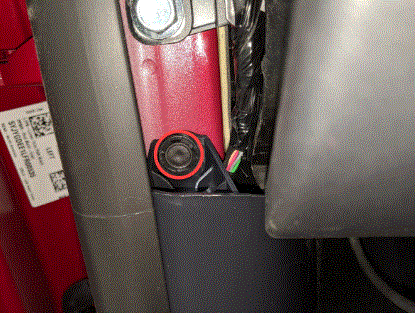

- Install RH front exterior hardware to center consoleNOTE: 2x bolts, 10mm, 7 Nm
- nstall RH console side panel carpetNOTE: 12x clips, 2x locating pins, Position side panel and align the front locator, then the rear locator, Push side panel towards console to install

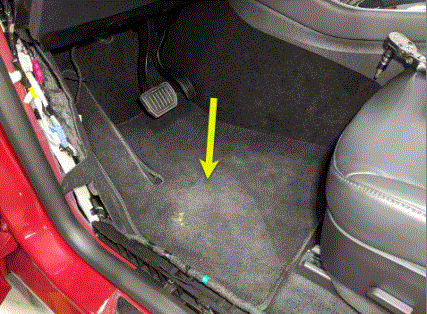

- Install RH front floor mat

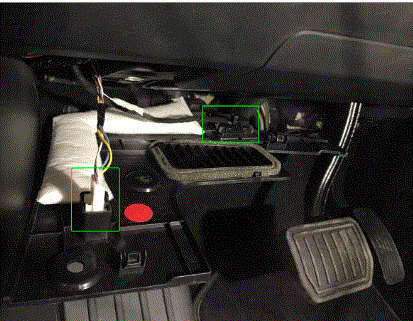

- Connect the RH footwell assembly connectorsNOTE: 2x connectors
- Install clips securing RH footwell assemblyNOTE: 4x push clips
- Install RH lower A-pillar trimNOTE: 6x clips, 2x locating pins, Align front locating pin first
- Install clip securing RH lower A-pillar trimNOTE: 1x clip

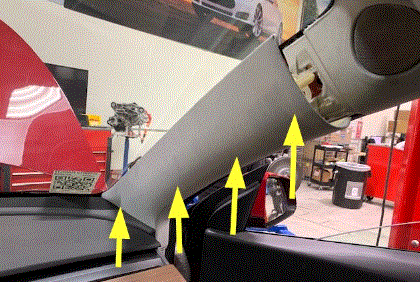

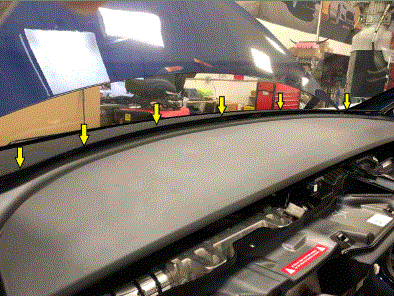

- Install RH upper A-pillar trimNOTE: 3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim

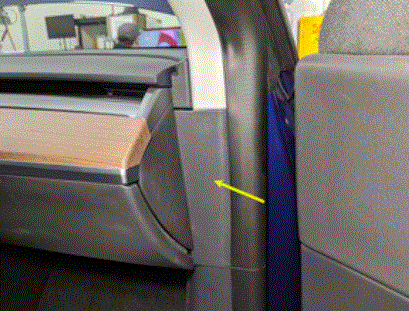

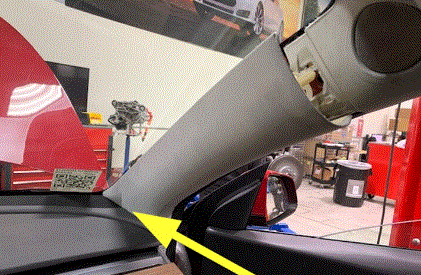

- Install RH mid A-pillar assemblyNOTE: 1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Make sure the seal seat on top of the trim

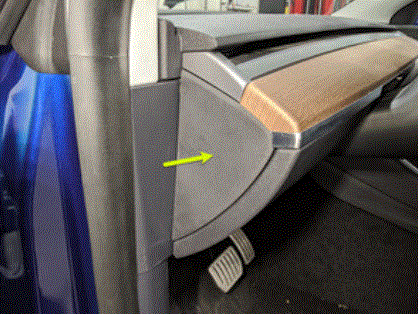

- Install RH IP end capNOTE: 3x clips
- Install driver knee air bagNOTE: 1x connector, Engage locking tab, Use caution not to damage connector/harness, Support air bag while connecting connector

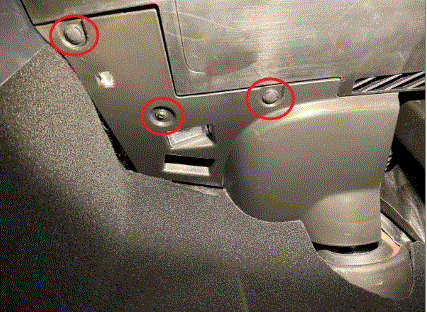

- Install fasteners securing driver knee air bag to vehicleNOTE: 4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 2x push clips
- Install LH front exterior hardware to center consoleNOTE: 2x bolts, 10mm, 7 Nm

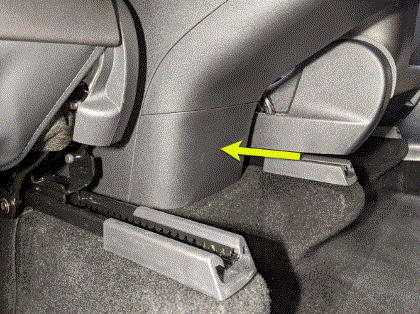

- Install LH console side panel carpetNOTE: 11x clips, 2x locating pins, Position side panel and align the front into front locator, then the rear locator, Push side panel towards console to install
- Install LH console side panel carpetNOTE: 11x clips, 2x locating pins, Position side panel and align the front into front locator, then the rear locator, Push side panel towards console to install
- Install LH front floor mat

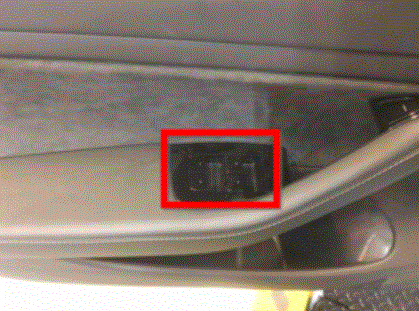

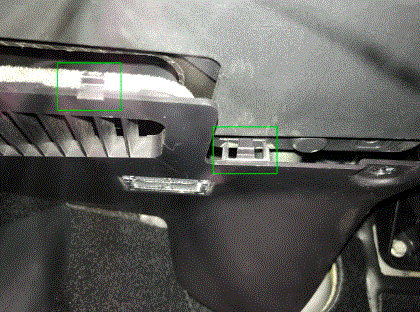

- Install connectors to LH footwell cover and position for installationNOTE: 3x tabs, 1x Ethernet connector, 1x puddle light connector
- Install screw and clips securing LH footwell coverNOTE: 1x screw, T20, 2.5 Nm, 2x push clips
- Install LH lower A-pillar trimNOTE: 6x clips, 2 locating pins, Align front locating pin first
- Install clip securing LH lower A-pillar trimNOTE: 1x push clip

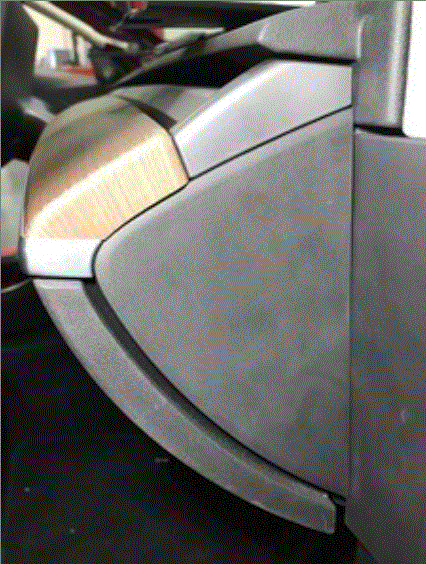

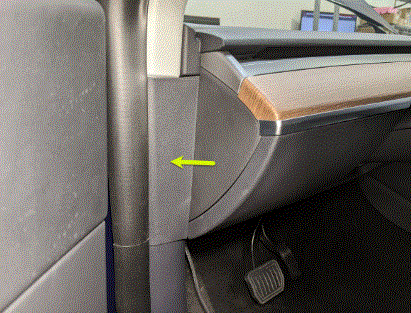

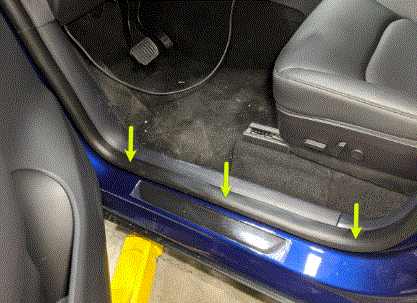

- Reseat LH front door seal along lower A-pillar trim
- Install LH mid A-pillar assemblyNOTE: 1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim
- Install LH IP end capNOTE: 3x clips

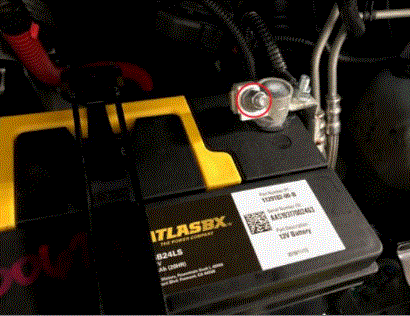

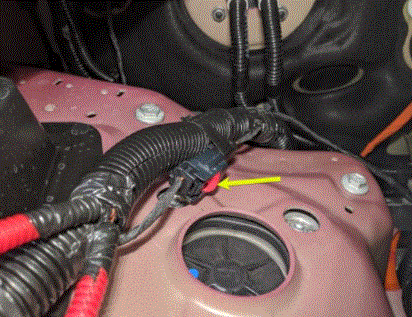

- Connect the First Responder Loop and 12V negative battery cable.

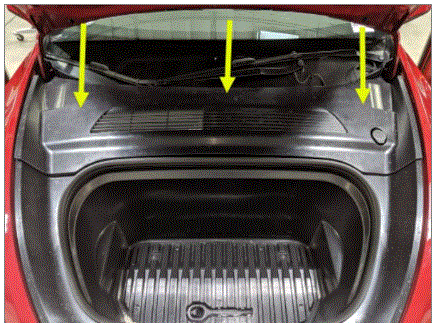

- Install the rear apron.

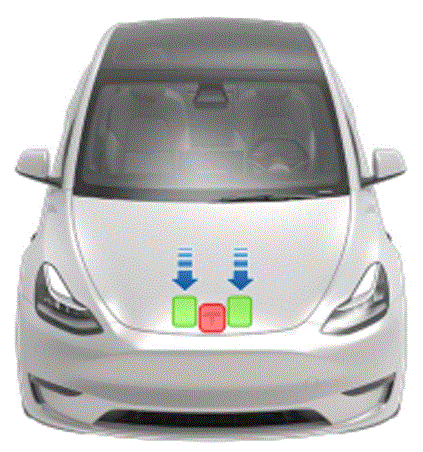

- Close the hood.

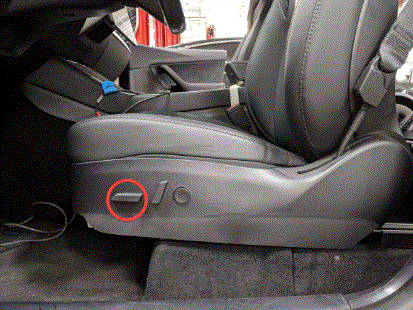

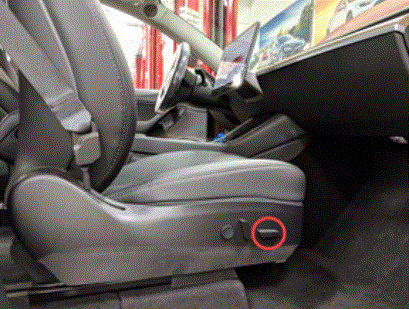

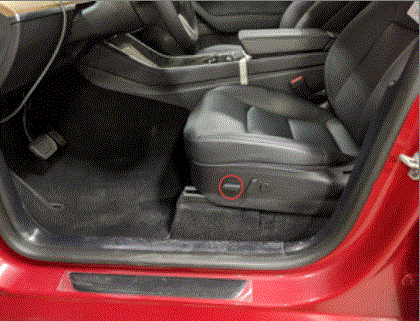

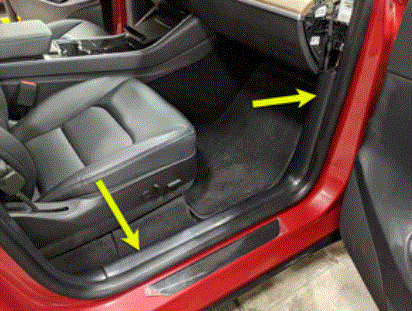

- Move LH front seat forward
- Move RH front seat forward

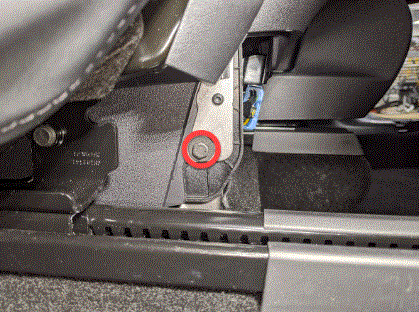

- Install RH rear exterior hardware to center console

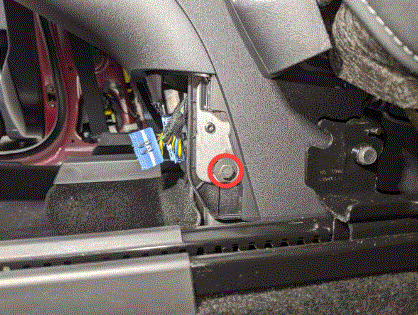

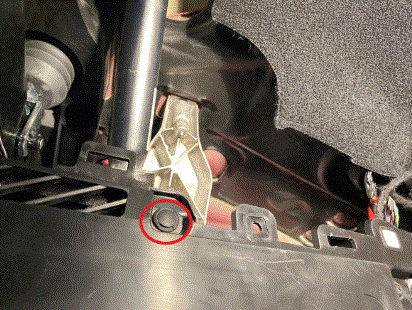

- Install LH rear exterior hardware to center consoleNOTE: 1x bolt, 10mm, 7 Nm

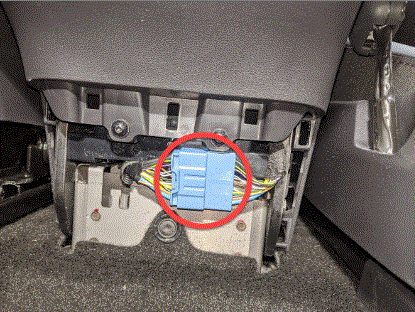

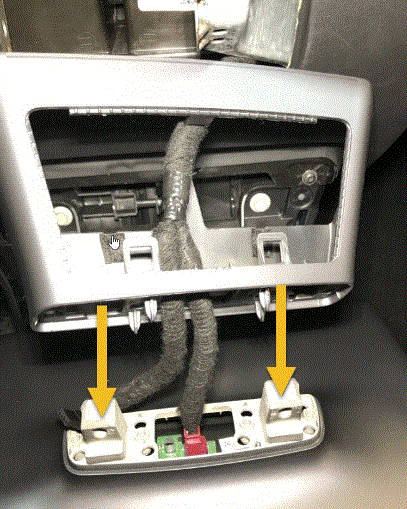

- Connect harness to rear of center consoleNOTE: 1x connector
- Install console lower rear panelNOTE: 5x clips
- Move the RH front seat to its original position.
- Move LH front seat to original position
- Raise all four windows

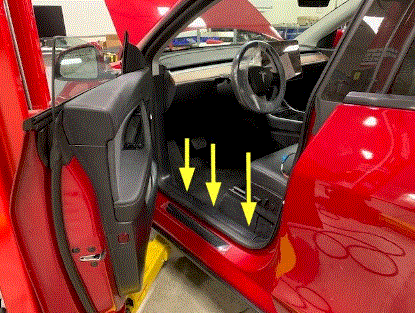

- Close all four doorsNOTE: If 12V is powered up, Unlatch rear doors before closing
