IP Carrier - Remove And Install: Remove

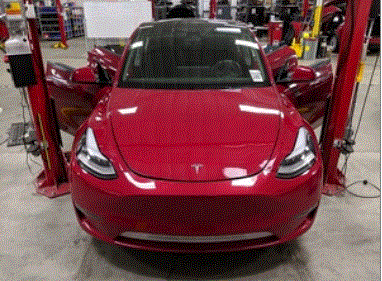

  1. Open all four doors
    G00651022Courtesy of TESLA, INC.

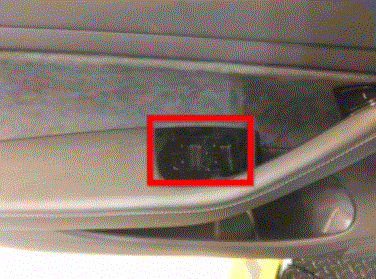

  2. Lower all four windows
    G00651024Courtesy of TESLA, INC.

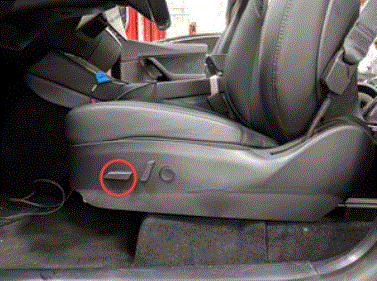

  3. Move LH front seat forward
    G00651025Courtesy of TESLA, INC.

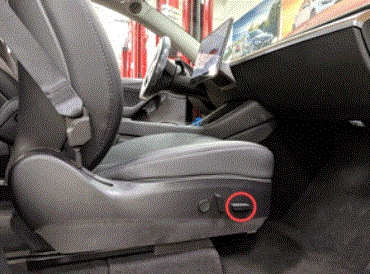

  4. Move RH front seat forward
    G00651026Courtesy of TESLA, INC.

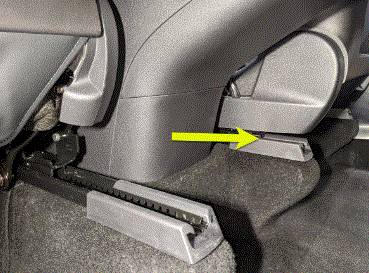

  5. Remove console lower rear panel
    NOTE: 5x clips
    G00651023Courtesy of TESLA, INC.

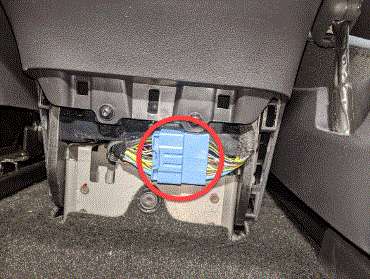

  6. Disconnect harness from rear of center console
    NOTE: 1x connector
    G00651027Courtesy of TESLA, INC.

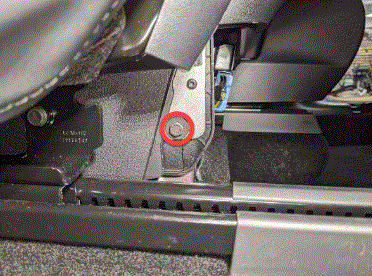

  7. Remove LH rear exterior hardware from center console
    NOTE: 1x bolt, 10mm, 7 Nm
    G00651028Courtesy of TESLA, INC.

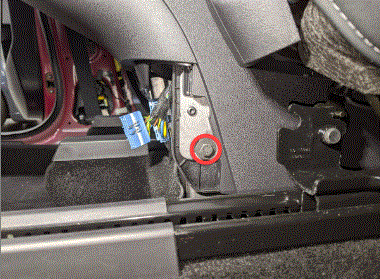

  8. Remove RH rear exterior hardware from center console
    NOTE: 1x bolt, 10mm, 7 Nm
    G00651029Courtesy of TESLA, INC.

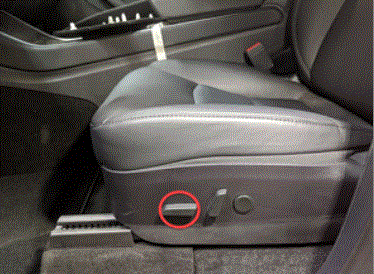

  9. Move LH front seat backward
    G00651030Courtesy of TESLA, INC.
  10. Move the RH front seat back.

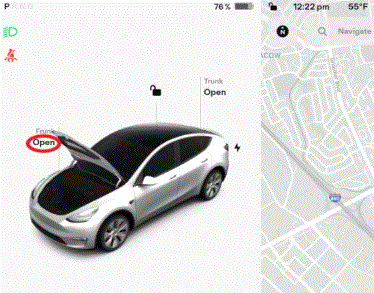

  11. Open the hood.
    G00651031Courtesy of TESLA, INC.

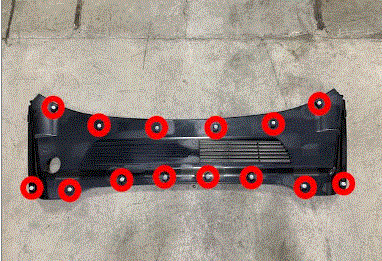

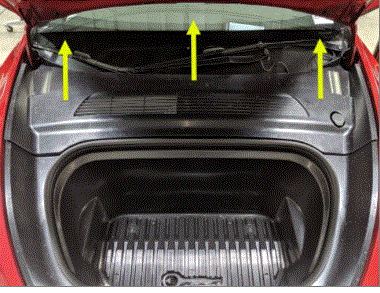

  12. Remove the rear apron.
    G00651032Courtesy of TESLA, INC.
    G00651033Courtesy of TESLA, INC.

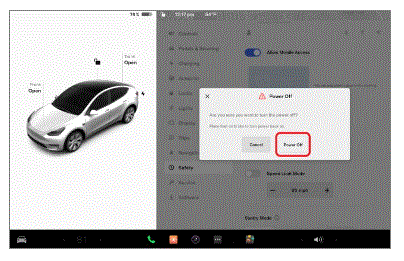

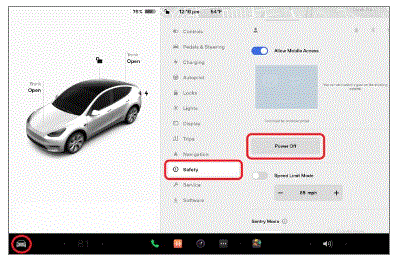

  13. Power off the vehicle using the touchscreen.
    G00651034Courtesy of TESLA, INC.
    G00651035Courtesy of TESLA, INC.

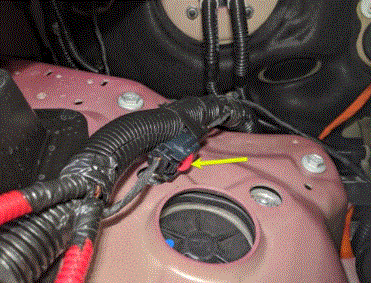

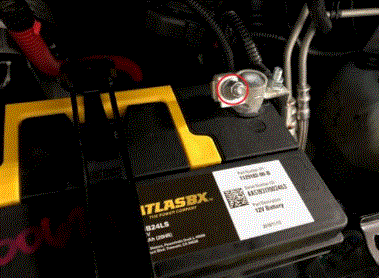

  14. Disconnect the 12V negative battery cable and First Responder Loop.
    G00651036Courtesy of TESLA, INC.
    G00651037Courtesy of TESLA, INC.

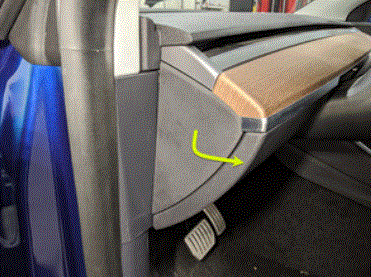

  15. Remove LH IP end cap
    NOTE: 3x clips
    G00651038Courtesy of TESLA, INC.

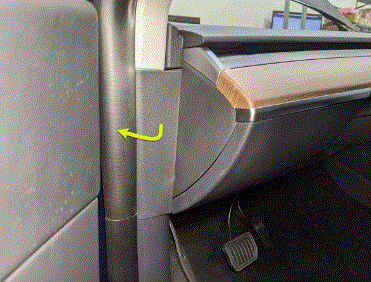

  16. Remove LH mid A-pillar assembly
    NOTE: 1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
    G00651039Courtesy of TESLA, INC.

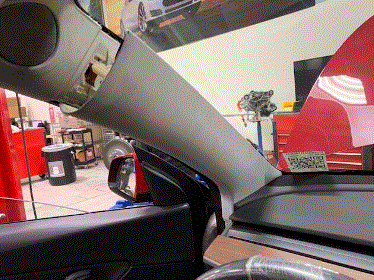

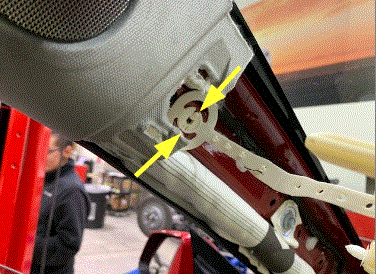

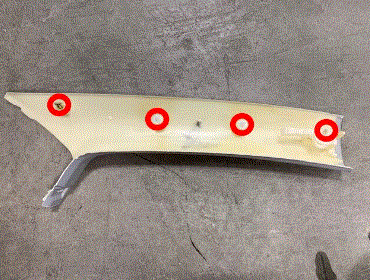

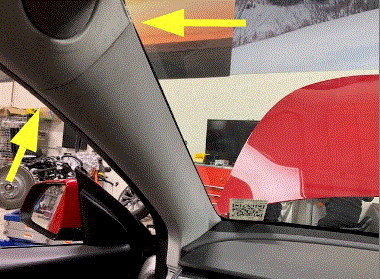

  17. Remove LH upper A-pillar trim
    NOTE: 3x clips, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove
    G00651040Courtesy of TESLA, INC.
    G00651041Courtesy of TESLA, INC.
    G00651042Courtesy of TESLA, INC.
    G00651043Courtesy of TESLA, INC.

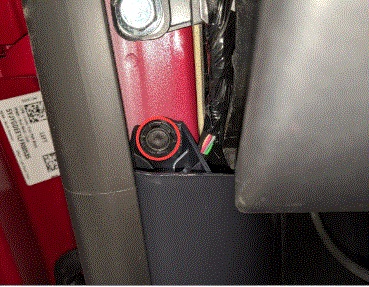

  18. Remove clip securing LH lower A-pillar trim
    NOTE: 1x push clip
    G00651044Courtesy of TESLA, INC.

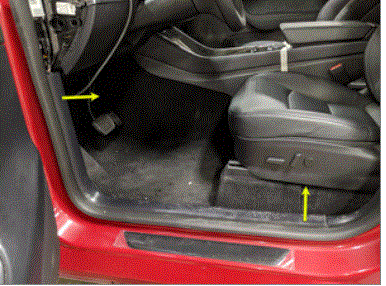

  19. Remove LH lower A-pillar trim
    NOTE: 6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel
    G00651045Courtesy of TESLA, INC.

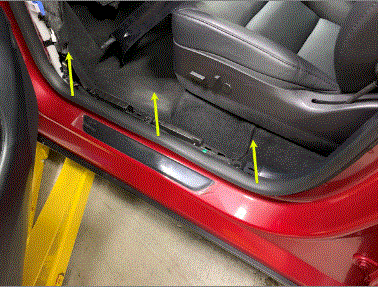

  20. Release LH front door seal from body
    G00651046Courtesy of TESLA, INC.

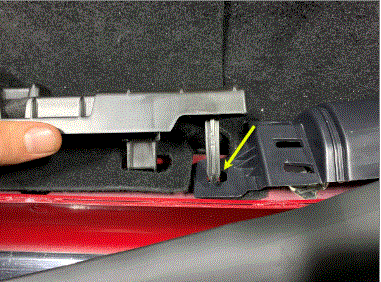

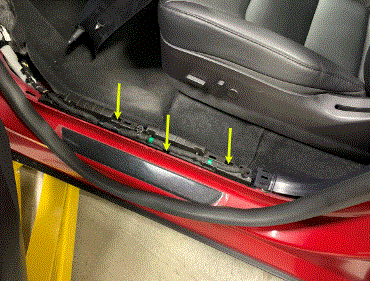

  21. Release LH front seat harness and guide from body
    NOTE: 3x clips, 1 datum, Datum goes through access hole on LH lower B-pillar
    G00651047Courtesy of TESLA, INC.
    G00651048Courtesy of TESLA, INC.

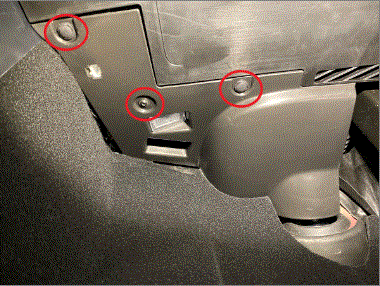

  22. Remove screw and clips securing LH footwell cover
    NOTE: 2x push clips, 1x screw, T20, 2.5 Nm
    G00651049Courtesy of TESLA, INC.

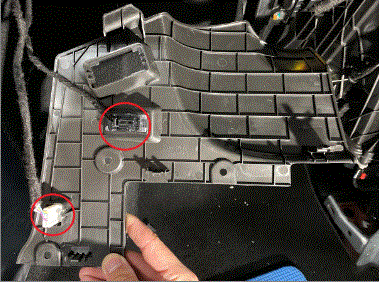

  23. Remove connectors from LH footwell cover and remove from vehicle
    NOTE: 3x tabs, 1x Ethernet connector, 1x puddle light connector
    G00651050Courtesy of TESLA, INC.

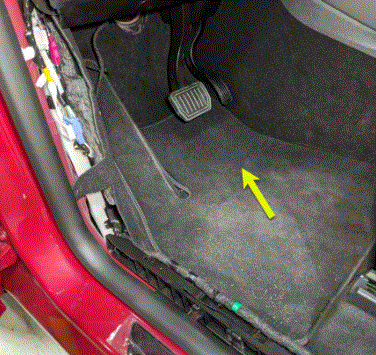

  24. Remove LH front floor mat
    G00651051Courtesy of TESLA, INC.

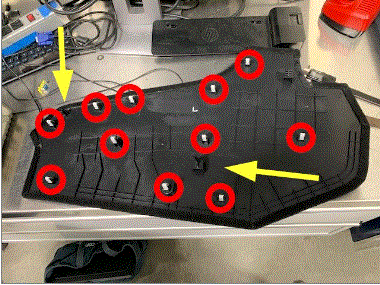

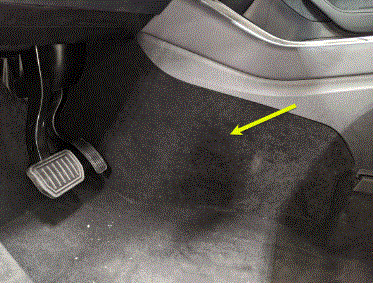

  25. Remove LH console side panel carpet
    NOTE: 11x clips, 2x guide pins, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
    G00651052Courtesy of TESLA, INC.
    G00651053Courtesy of TESLA, INC.

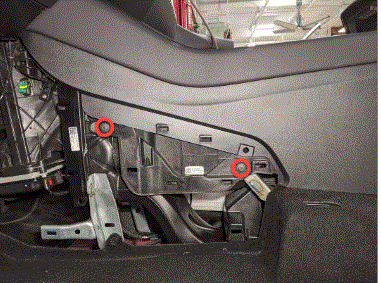

  26. Remove LH front exterior hardware from center console
    NOTE: 2x bolts, 10mm, 7 Nm
    G00651054Courtesy of TESLA, INC.

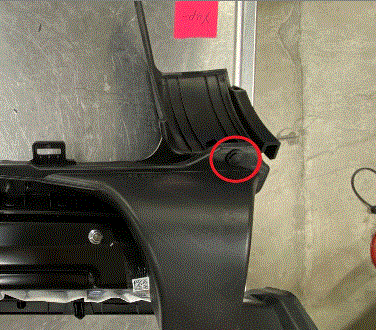

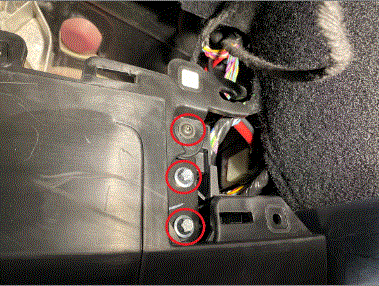

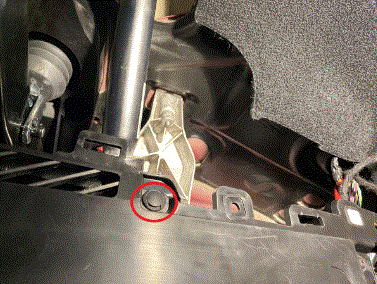

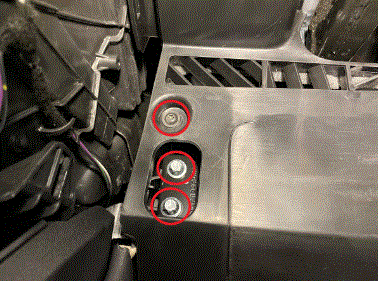

  27. Remove fasteners securing driver knee air bag to vehicle
    NOTE: 2x push clips, 2x screws, T20, 2 Nm, 4x patch bolts, E10, 8 Nm, Discard after removal, Support the knee air bag while lowering, The connector / harness length is very short
    G00651055Courtesy of TESLA, INC.
    G00651056Courtesy of TESLA, INC.
    G00651057Courtesy of TESLA, INC.
    G00651058Courtesy of TESLA, INC.

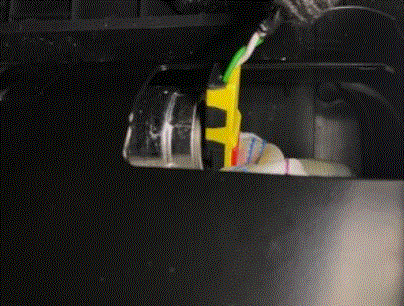

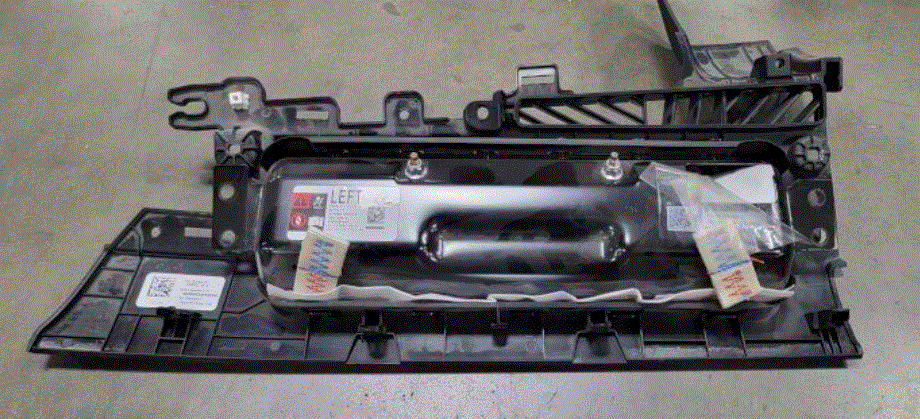

  28. Remove driver knee air bag
    NOTE: 1x connector, Release locking tab, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary
    G00651059Courtesy of TESLA, INC.
    G00651060Courtesy of TESLA, INC.
    G00651061Courtesy of TESLA, INC.

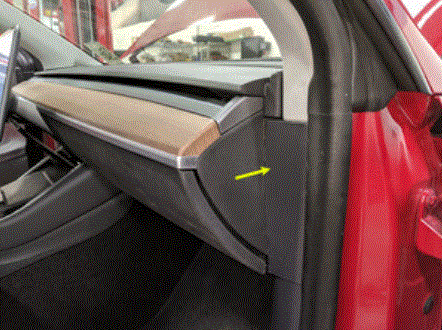

  29. Remove RH IP end cap
    NOTE: 3x clips
    G00651062Courtesy of TESLA, INC.

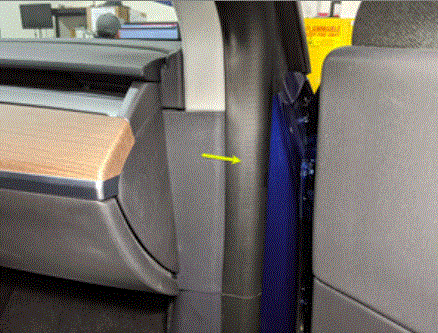

  30. Remove RH mid A-pillar assembly
    NOTE: 1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
    G00651063Courtesy of TESLA, INC.

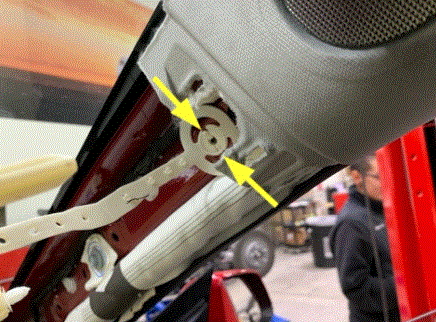

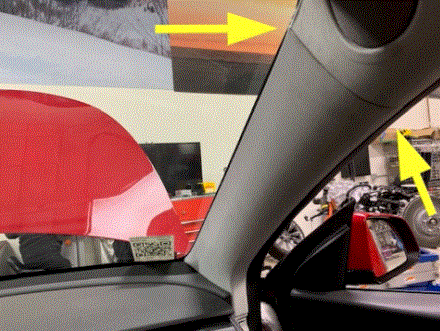

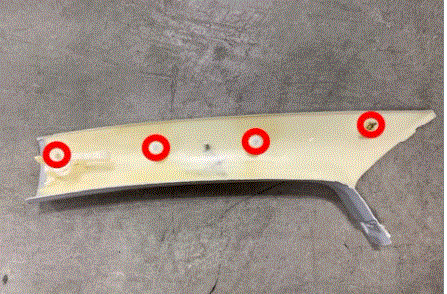

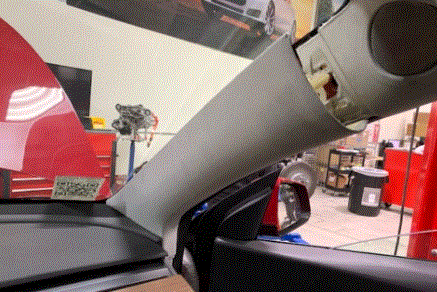

  31. Remove RH upper A-pillar trim
    NOTE: 3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove
    G00651064Courtesy of TESLA, INC.
    G00651065Courtesy of TESLA, INC.
    G00651066Courtesy of TESLA, INC.
    G00651067Courtesy of TESLA, INC.

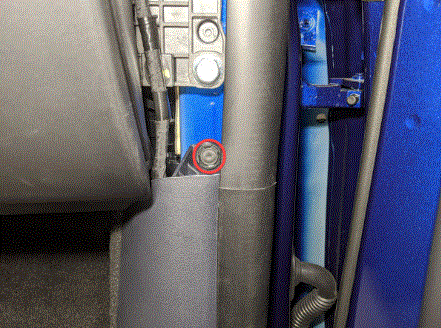

  32. Remove clip securing RH lower A-pillar trim
    NOTE: 1x push clip
    G00651068Courtesy of TESLA, INC.

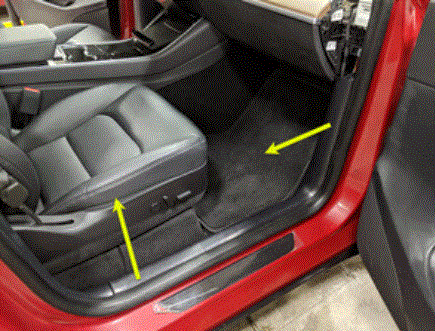

  33. Remove RH lower A-pillar trim
    NOTE: 6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel
    G00651069Courtesy of TESLA, INC.

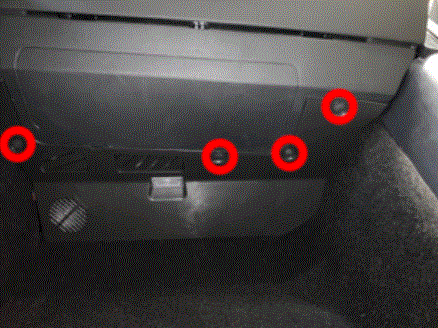

  34. Remove clips securing RH footwell assembly
    NOTE: 4x push clips, Clip count may vary depending on region
    G00651070Courtesy of TESLA, INC.

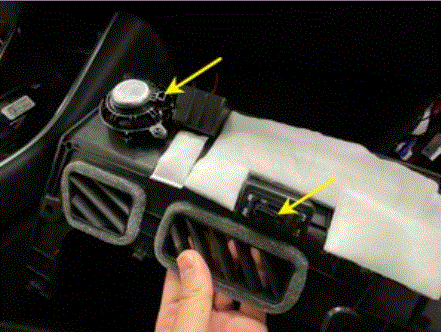

  35. Disconnect RH footwell assembly connectors and remove from vehicle
    NOTE: 2x connectors
    G00651071Courtesy of TESLA, INC.

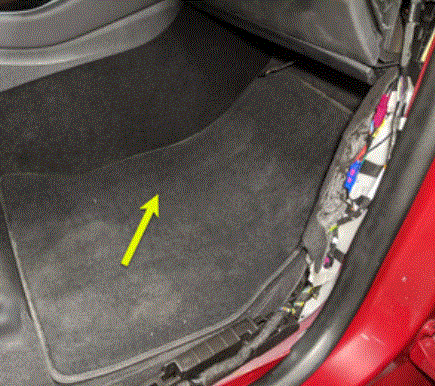

  36. Remove RH front floor mat
    G00651072Courtesy of TESLA, INC.

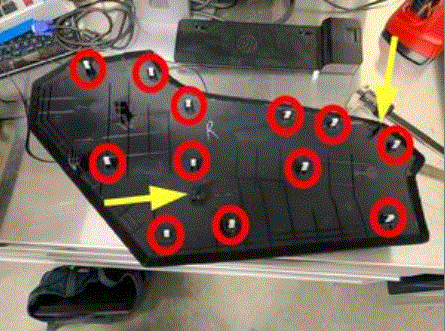

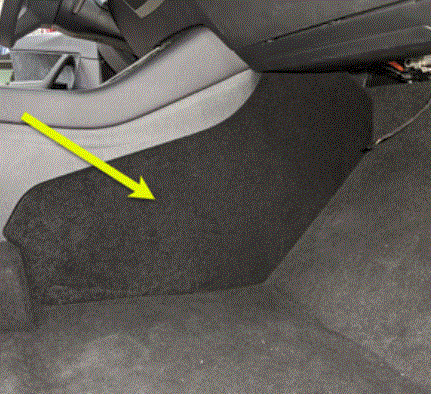

  37. Remove RH console side panel carpet
    NOTE: 12x clips, 2x locating pins, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
    G00651073Courtesy of TESLA, INC.
    G00651074Courtesy of TESLA, INC.

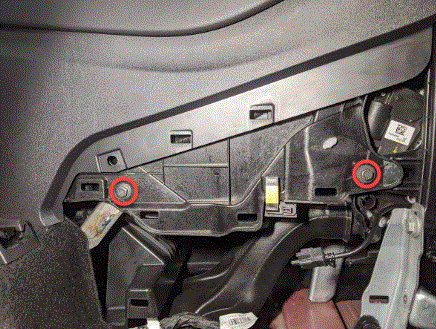

  38. Remove RH front exterior hardware from center console
    NOTE: 2x bolts, 10mm, 7 Nm
    G00651075Courtesy of TESLA, INC.

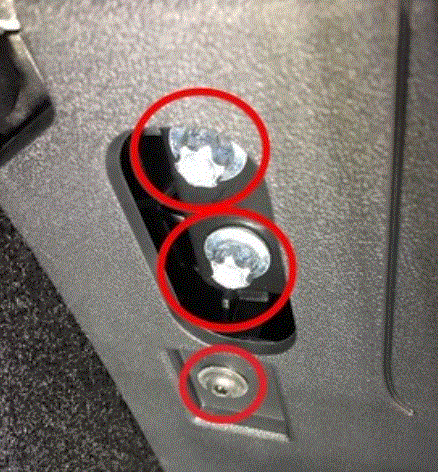

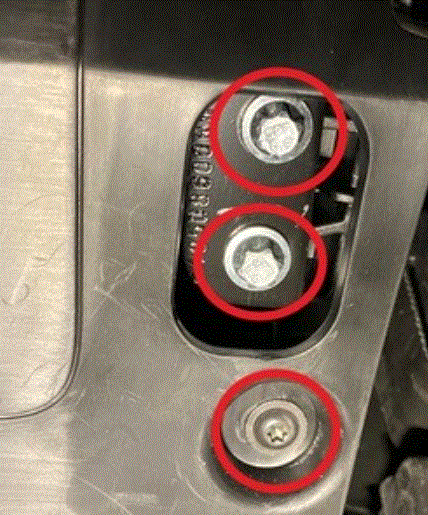

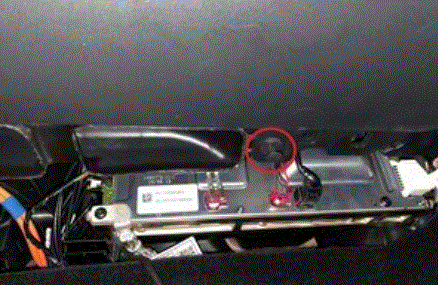

  39. Remove fasteners securing passenger knee air bag to vehicle
    NOTE: 2x screws, T20, 2 Nm, 1x push clip, 4x patch bolts, E10, 8 Nm, Discard patch bolts after removal, Support the knee air bag while lowering, The connector / harness length is very short
    G00651076Courtesy of TESLA, INC.
    G00651077Courtesy of TESLA, INC.
    G00651078Courtesy of TESLA, INC.

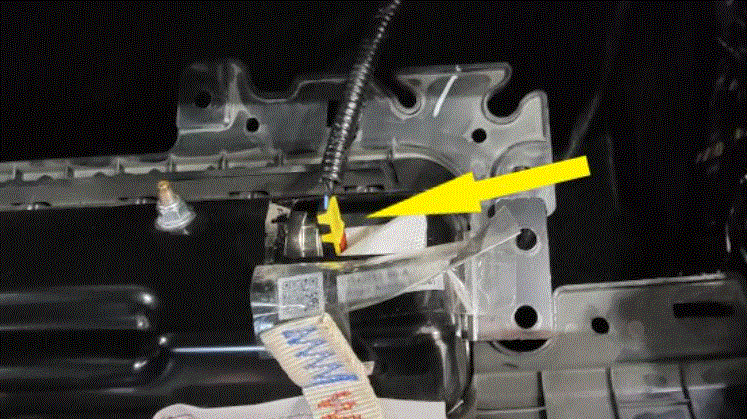

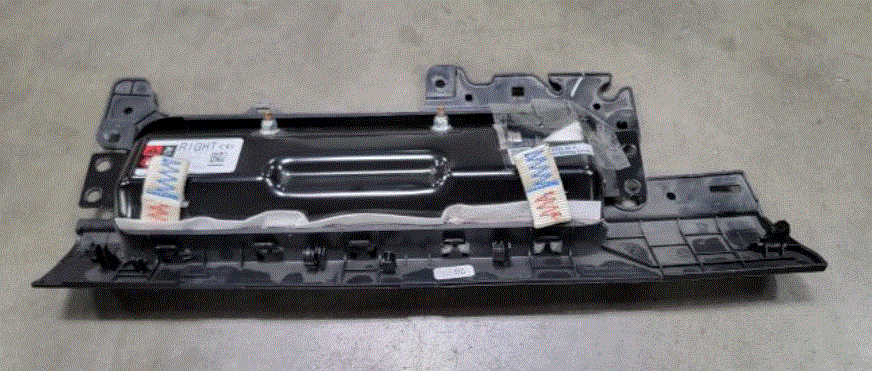

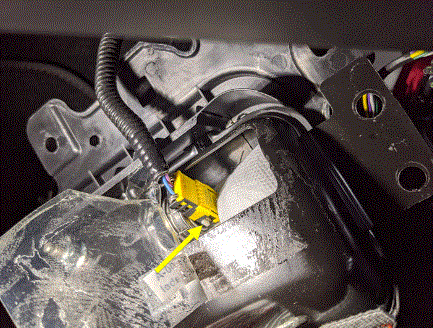

  40. Remove passenger knee air bag
    NOTE: 1x connector, Release locking tab, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary
    G00651079Courtesy of TESLA, INC.
    G00651080Courtesy of TESLA, INC.
    G00651081Courtesy of TESLA, INC.

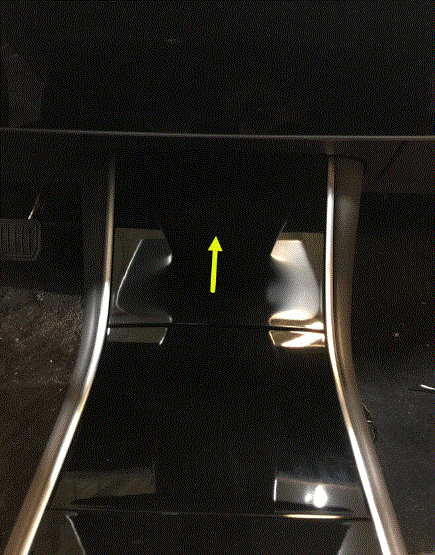

  41. Open front console rotating lid
    NOTE: Push down lightly to open
    G00651082Courtesy of TESLA, INC.

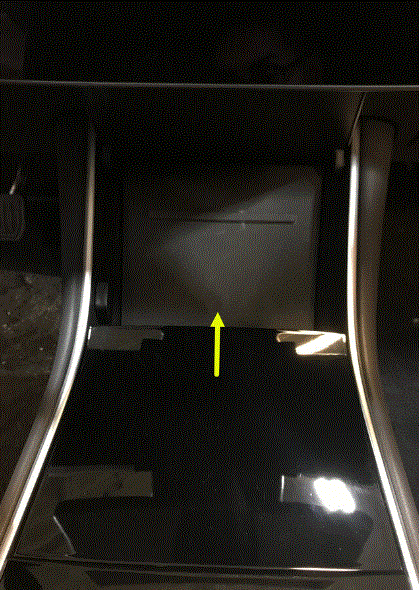

  42. Open rear console rotating lid
    NOTE: Push down lightly to open
    G00651083Courtesy of TESLA, INC.

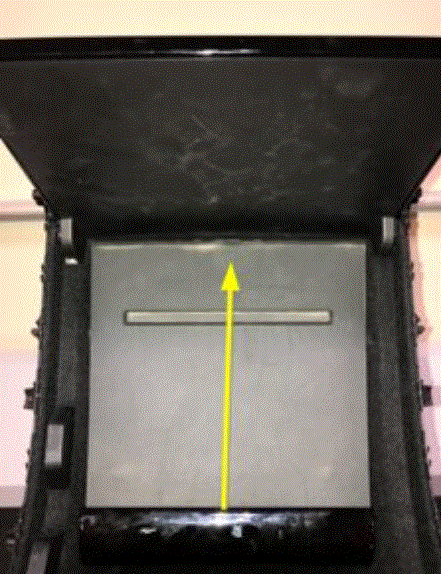

  43. Lift up phone dock for access
    G00651084Courtesy of TESLA, INC.

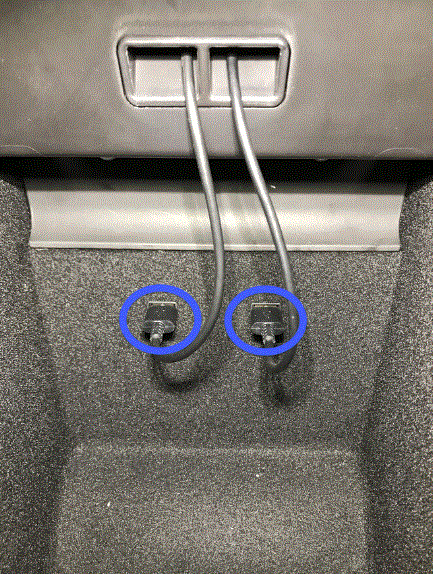

  44. Disconnect charge cables from USB ports Note 2x cables
    NOTE: 2x cables
    G00651085Courtesy of TESLA, INC.

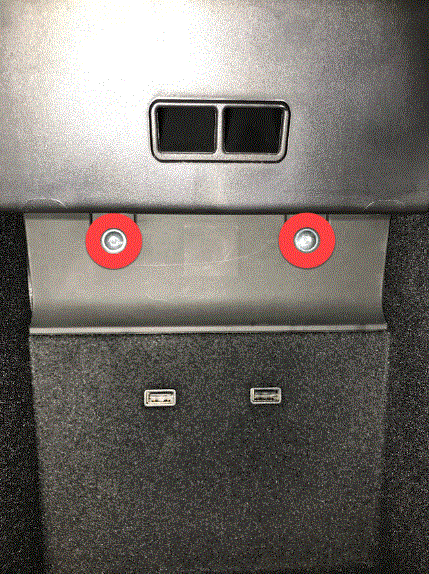

  45. Remove the fasteners securing the phone dock tray lower trim to the center console
    NOTE: 2x screws, T20, 1 Nm, This step is only for early production vehicles
    G00651086Courtesy of TESLA, INC.

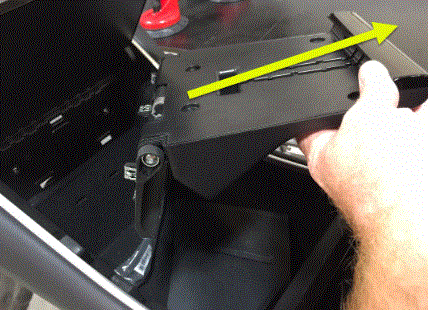

  46. Release the phone dock tray with lower trim from the center console
    NOTE: 5x clips, Pull dock towards rear of vehicle to release from console, This step is only for early production vehicles
    G00651087Courtesy of TESLA, INC.

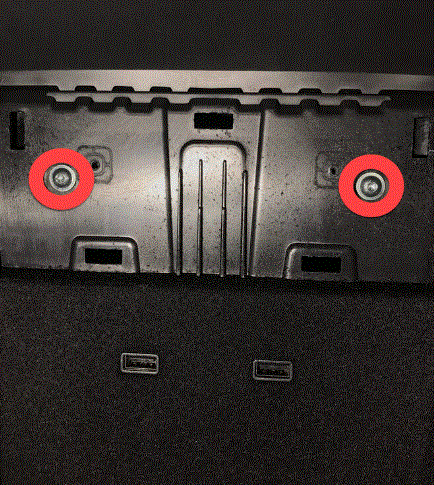

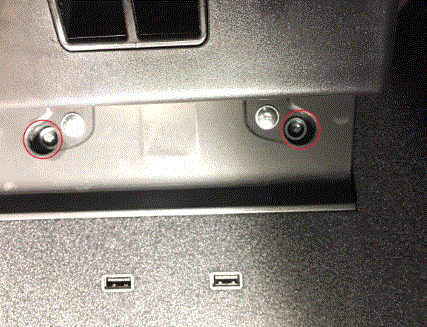

  47. Remove console lid interior fasteners
    NOTE: 2x screws, T20, 1.7 Nm, Top photo is early production vehicles, Bottom is for later production vehicles
    G00651088Courtesy of TESLA, INC.
    G00651089Courtesy of TESLA, INC.

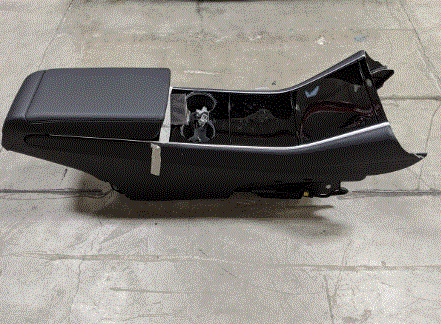

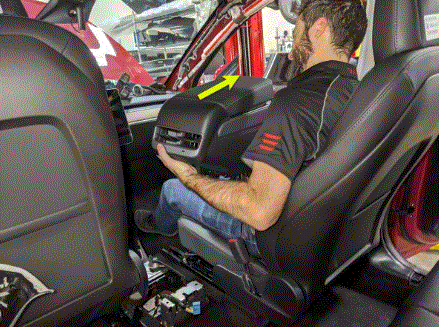

  48. Remove center console from vehicle
    NOTE: Verify rotating lids are in closed position, Recommend assistance, Tilt rear of console upward, Pull assembly towards rear of vehicle
    G00651090Courtesy of TESLA, INC.
    G00651091Courtesy of TESLA, INC.

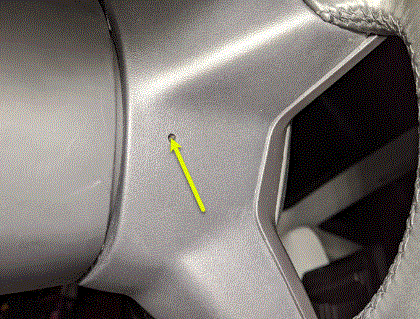

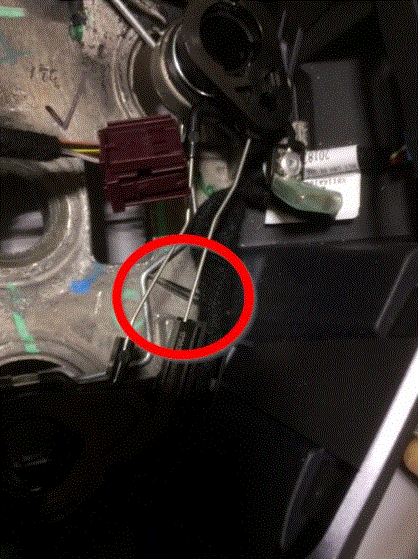

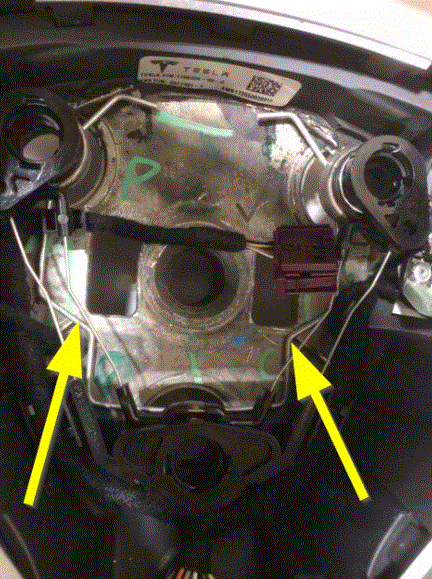

  49. Release spring clip securing driver air bag assembly to steering wheel and pull driver air bag assembly away from steering wheel
    NOTE: 1x spring clip, 3x datums, Press spring simultaneously from two access holes to release, Access holes located at 4 and 8 o'clock position
    G00651092Courtesy of TESLA, INC.
    G00651093Courtesy of TESLA, INC.
    G00651094Courtesy of TESLA, INC.

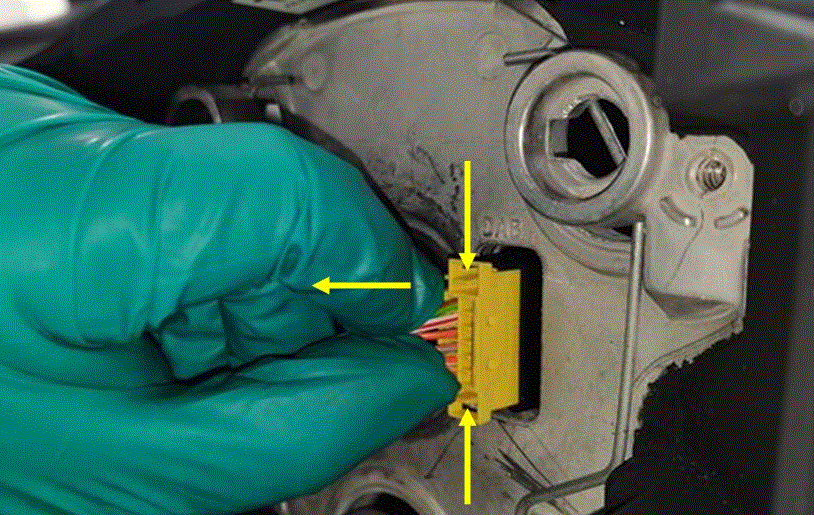

  50. Disconnect driver air bag connector and remove driver air bag assembly
    NOTE: 1x connector, 2x tabs
    G00651095Courtesy of TESLA, INC.

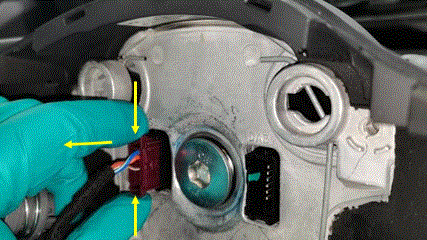

  51. Disconnect steering wheel connector

    1x connector, 2x tabs

    G00651096Courtesy of TESLA, INC.

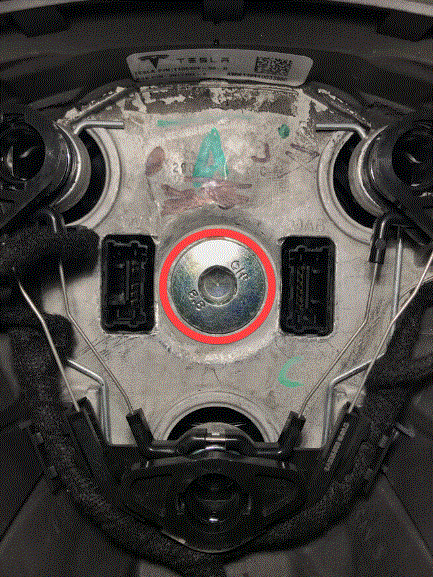

  52. Remove bolt securing steering wheel to steering column
    NOTE: 1x patch bolt, 10mm hex, 80 Nm, Discard after removal
    G00651097Courtesy of TESLA, INC.

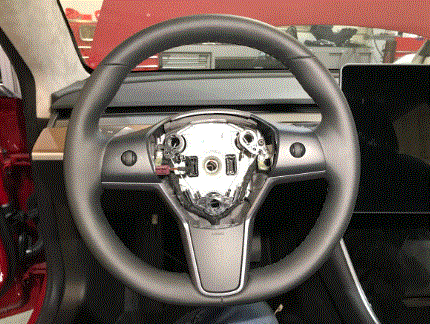

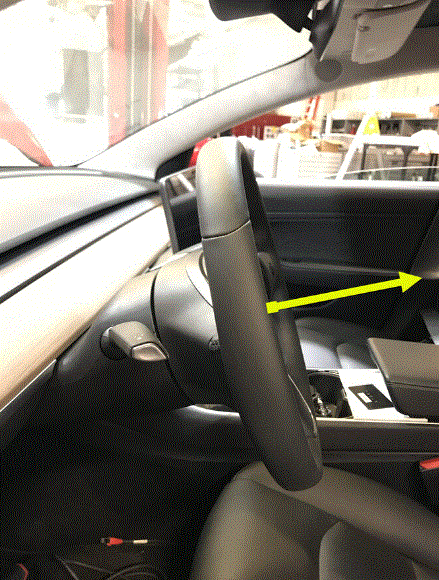

  53. Remove steering wheel from steering column
    NOTE: Mark splines to install into same position
    G00651098Courtesy of TESLA, INC.
    G00651099Courtesy of TESLA, INC.

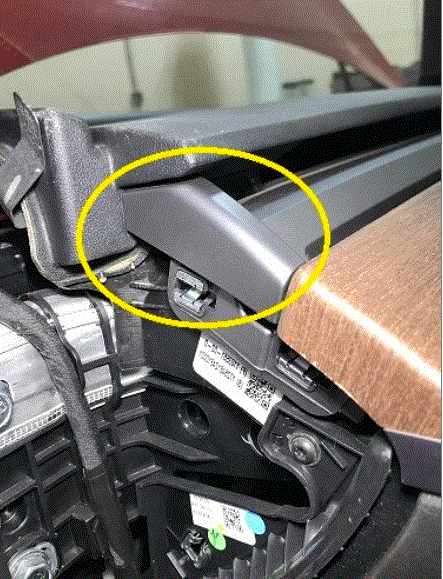

  54. Remove LH air wave bezel cap from main decor assembly
    NOTE: 2x clips
    G00651100Courtesy of TESLA, INC.

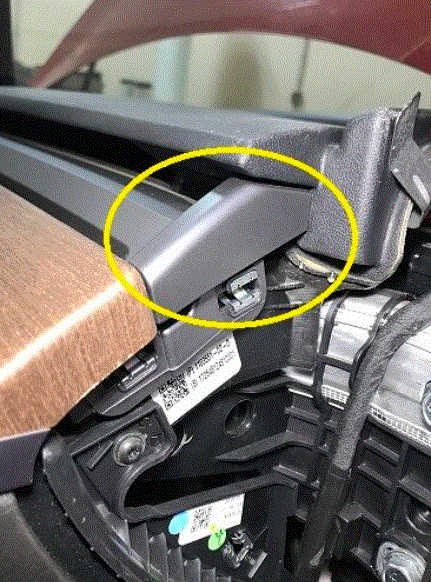

  55. Remove RH air wave bezel cap from main decor assembly
    NOTE: 2x clips
    G00651101Courtesy of TESLA, INC.

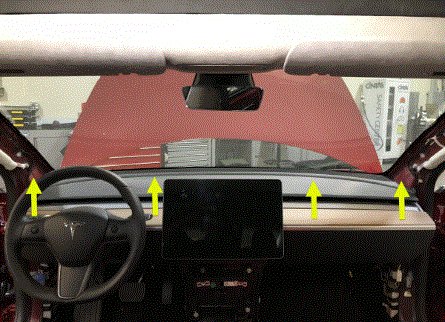

  56. Remove main decor assembly
    NOTE: 15x clips, 1x center clip, Replace securing clips as needed
    G00651102Courtesy of TESLA, INC.

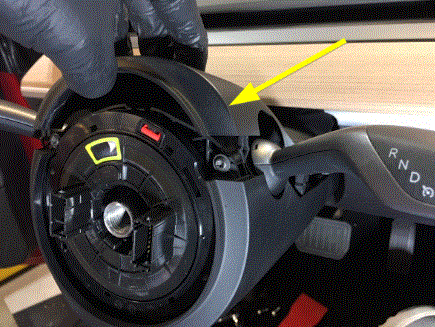

  57. Pull upward to release steering column upper shroud from lower shroud
    NOTE: 4x clips
    G00651103Courtesy of TESLA, INC.

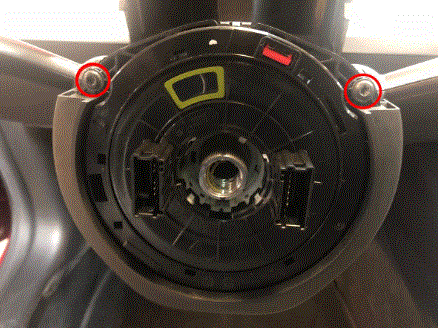

  58. Remove upper screws securing lower shroud to steering column
    NOTE: 2x screws, T20, 1.5 Nm
    G00651104Courtesy of TESLA, INC.

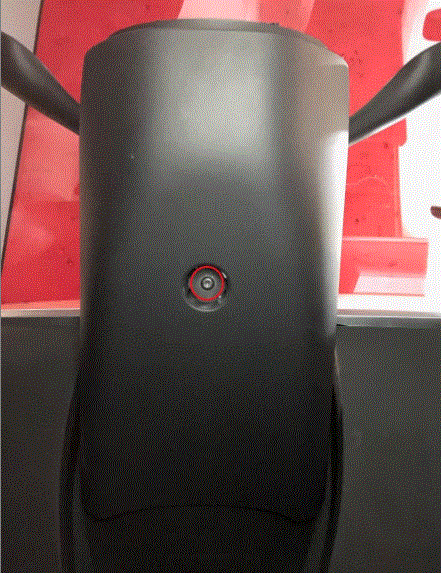

  59. Remove lower screw securing lower shroud to steering column
    NOTE: 1x screw, T20, 1.5 Nm
    G00651105Courtesy of TESLA, INC.

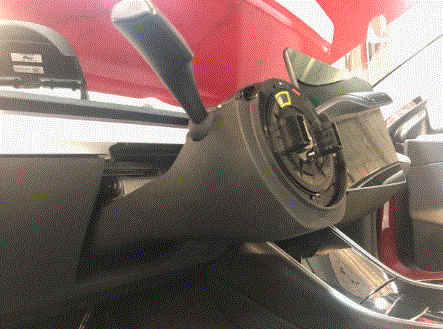

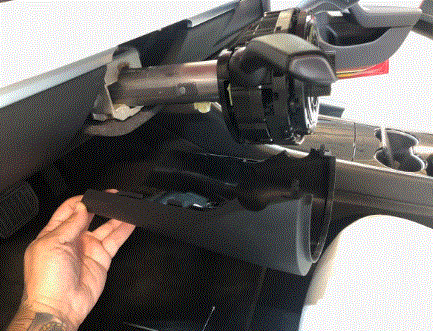

  60. Remove lower shroud from steering column
    G00651106Courtesy of TESLA, INC.
    G00651107Courtesy of TESLA, INC.

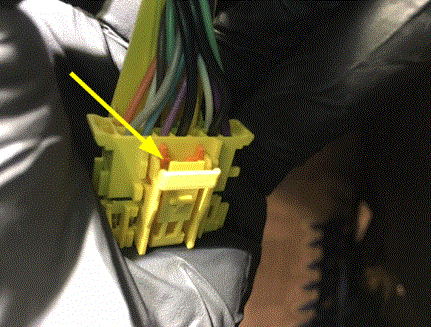

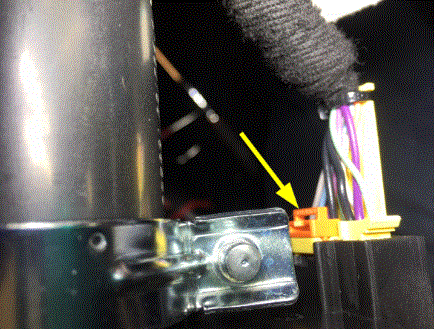

  61. Disconnect steering column control module assembly connector
    NOTE: 1x connector, Remove retaining clip on the connector, release connector, then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange
    G00651108Courtesy of TESLA, INC.
    G00651109Courtesy of TESLA, INC.

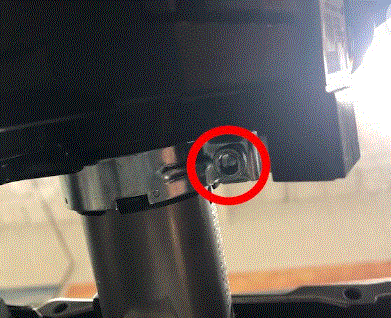

  62. Remove bolt securing SCCM to steering column
    NOTE: 1x bolt, 5mm allen, 9 Nm
    G00651110Courtesy of TESLA, INC.

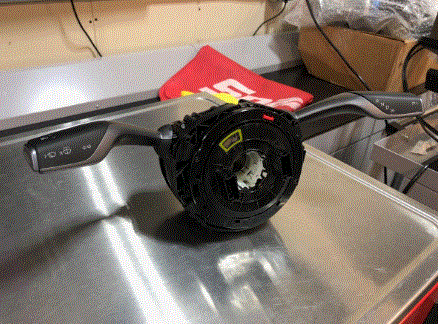

  63. Remove SCCM from steering column
    G00651111Courtesy of TESLA, INC.

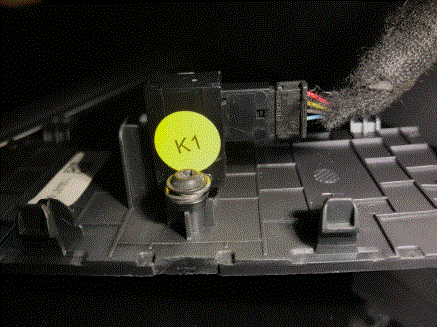

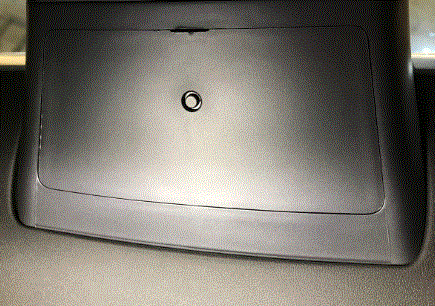

  64. Release IP service panel from IP and disconnect temperature sensor connector
    NOTE: 4x clips, 4x tabs, 1x connector
    G00651112Courtesy of TESLA, INC.
    G00651113Courtesy of TESLA, INC.

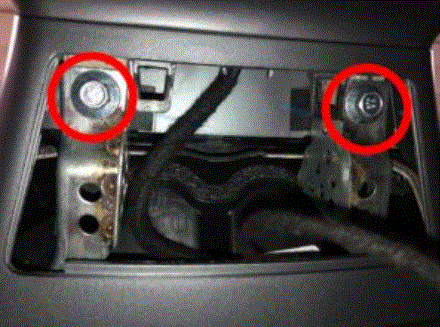

  65. Remove bolts securing center display to IP carrier
    NOTE: 2x patch bolts, 10mm, 16 Nm, Discard after removal, Slide towards rear of vehicle to remove
    G00651114Courtesy of TESLA, INC.

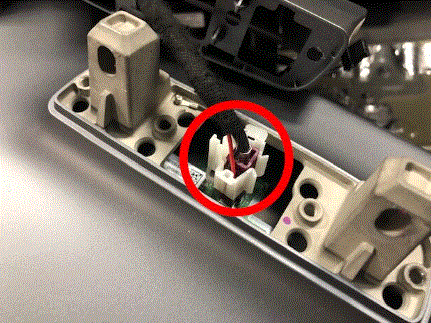

  66. Remove retaining clip from display connector
    NOTE: 1x clip
    G00651115Courtesy of TESLA, INC.

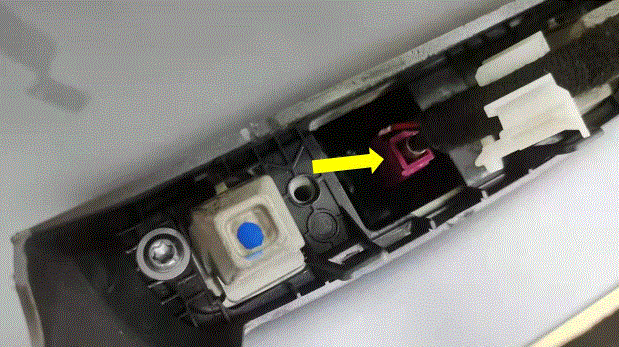

  67. Disconnect harness connector from center display
    NOTE: 1x connector
    G00651116Courtesy of TESLA, INC.

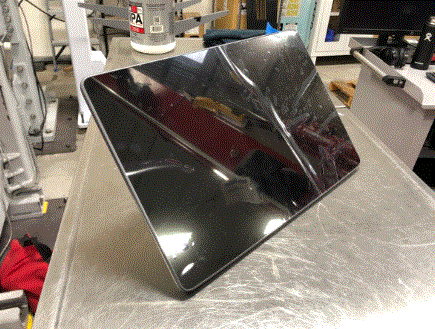

  68. Remove center display from vehicle
    G00651117Courtesy of TESLA, INC.

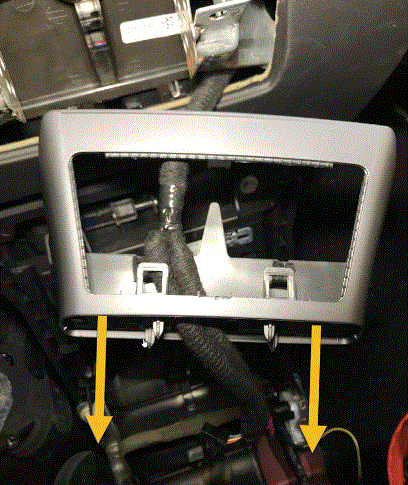

  69. Remove center display neck housing from vehicle
    G00651118Courtesy of TESLA, INC.

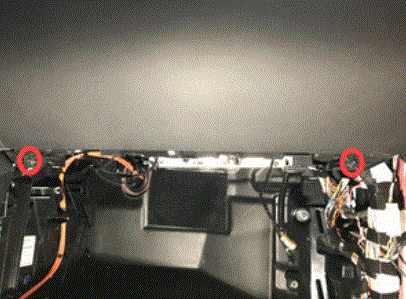

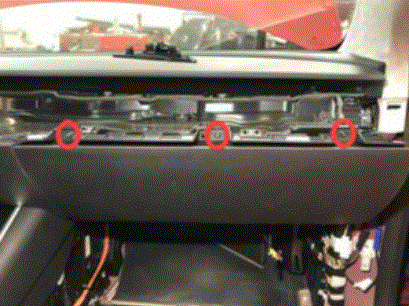

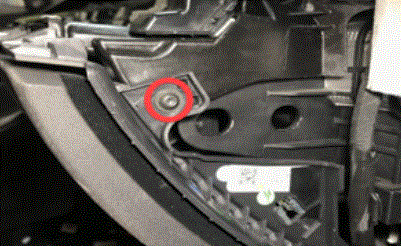

  70. Remove screws securing glove box assembly to IP carrier
    NOTE: 6x screws, T20, 2.3 Nm
    G00651119Courtesy of TESLA, INC.
    G00651120Courtesy of TESLA, INC.
    G00651121Courtesy of TESLA, INC.

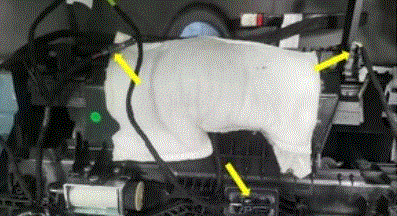

  71. Disconnect glove box assembly connectors
    NOTE: 3x connectors
    G00651122Courtesy of TESLA, INC.

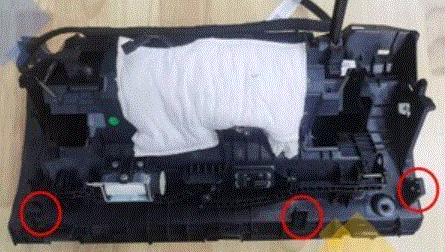

  72. Remove the glove box from IP carrier
    NOTE: 3x clips
    G00651123Courtesy of TESLA, INC.

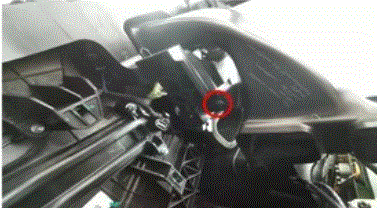

  73. Remove the passenger footwell air duct
    NOTE: 1x push clip
    G00651124Courtesy of TESLA, INC.

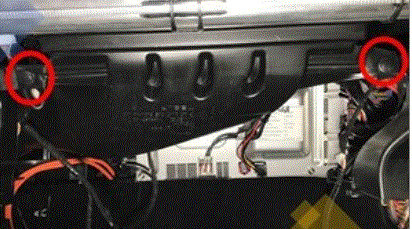

  74. Remove the RH IP air wave duct
    NOTE: 2x push clips
    G00651125Courtesy of TESLA, INC.

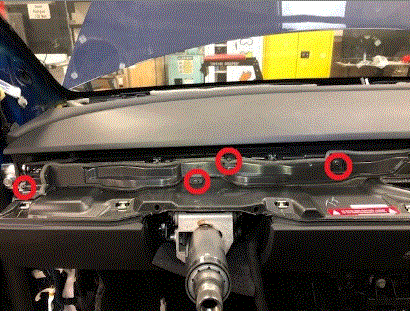

  75. Remove screws securing LH side of IP brow finisher
    NOTE: 4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws
    G00651126Courtesy of TESLA, INC.

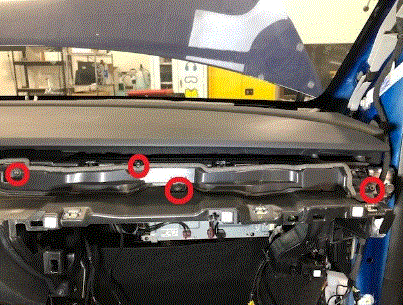

  76. Remove screws securing RH side of IP brow finisher
    NOTE: 4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws
    G00651127Courtesy of TESLA, INC.

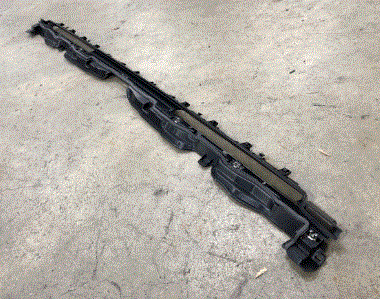

  77. Remove IP brow finisher from vehicle
    NOTE: 16x clips, Need to lift top pad up slightly to insert trim tool and release clips, Then slide IP brow finisher towards rear of vehicle
    G00651128Courtesy of TESLA, INC.

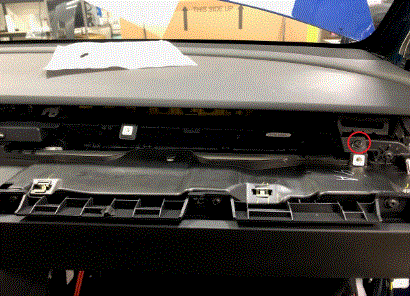

  78. Pull RH side of RH air duct out and release from IP
    NOTE: 1x screw, T20, 2.3 Nm
    G00651129Courtesy of TESLA, INC.

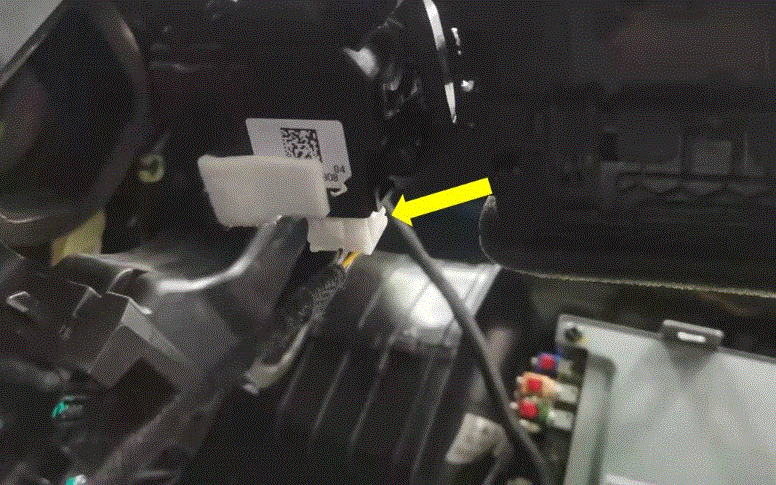

  79. Disconnect harness connector from RH air duct and remove duct
    NOTE: 1x connector
    G00651130Courtesy of TESLA, INC.

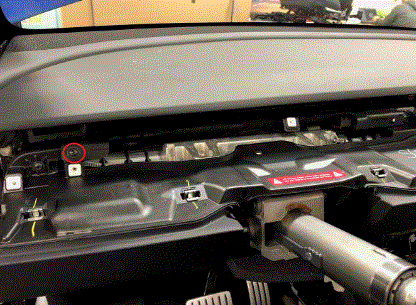

  80. Pull LH air duct out and release from IP
    NOTE: 1x screw, T20, 2.3 Nm
    G00651131Courtesy of TESLA, INC.

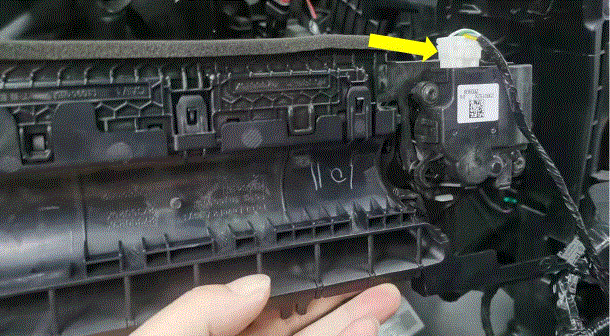

  81. Disconnect harness connector from LH air duct and remove duct
    NOTE: 1x connector
    G00651132Courtesy of TESLA, INC.

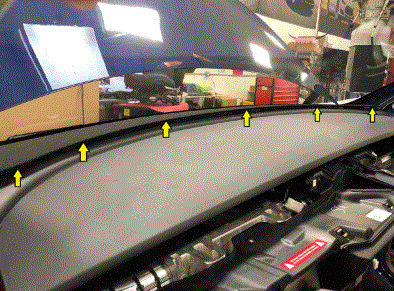

  82. Release clips securing defroster grill
    NOTE: 8x clips, Replace any damaged clips
    G00651133Courtesy of TESLA, INC.

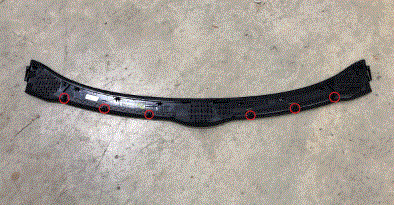

  83. Pivot rear edge of defroster grill up and release tabs from IP
    NOTE: 6x tabs
    G00651134Courtesy of TESLA, INC.

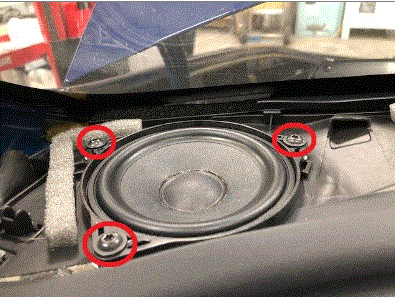

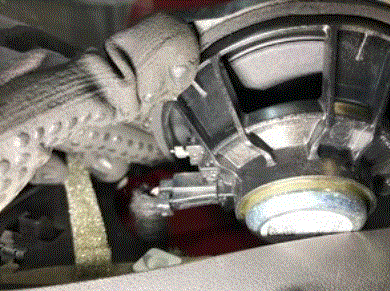

  84. Remove screws securing LH speaker to IP and remove speaker
    NOTE: 3x screws, T20, 2.3 Nm, 1x connector
    G00651135Courtesy of TESLA, INC.
    G00651136Courtesy of TESLA, INC.

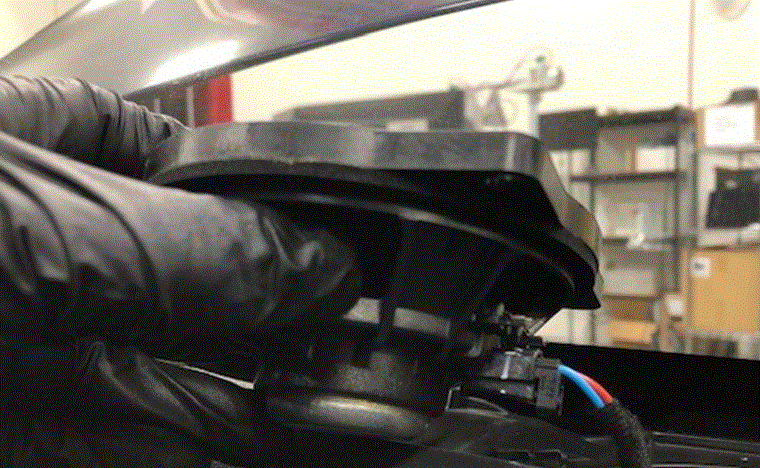

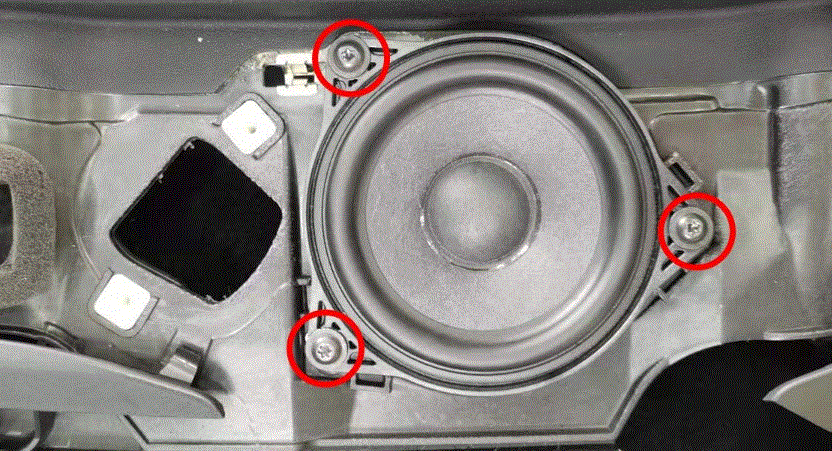

  85. Remove screws securing center speaker to IP and remove speaker
    NOTE: 3x screws, T20, 2.3 Nm, 1x connector
    G00651137Courtesy of TESLA, INC.
    G00651138Courtesy of TESLA, INC.
  86. Remove screws securing center tweeter to IP and remove speaker
    NOTE: 1x connector, 2x screws, T20, 2.3 Nm, Discard tweeter and screws after removal

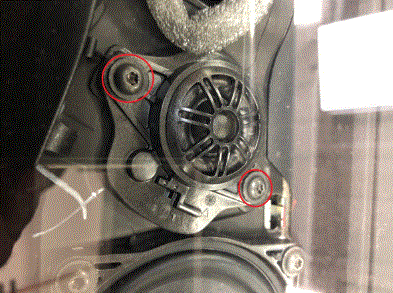

    G00651139Courtesy of TESLA, INC.

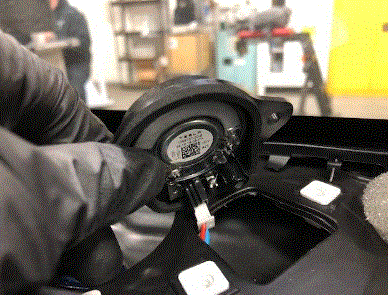

    G00651140Courtesy of TESLA, INC.

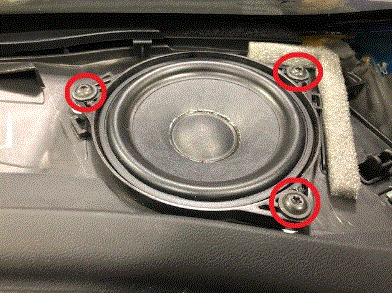

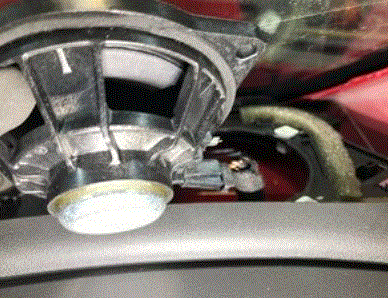

  87. Remove screws securing RH speaker to IP and remove speaker
    NOTE: 3x screws, T20, 2.3 Nm, 1x connector
    G00651141Courtesy of TESLA, INC.
    G00651142Courtesy of TESLA, INC.

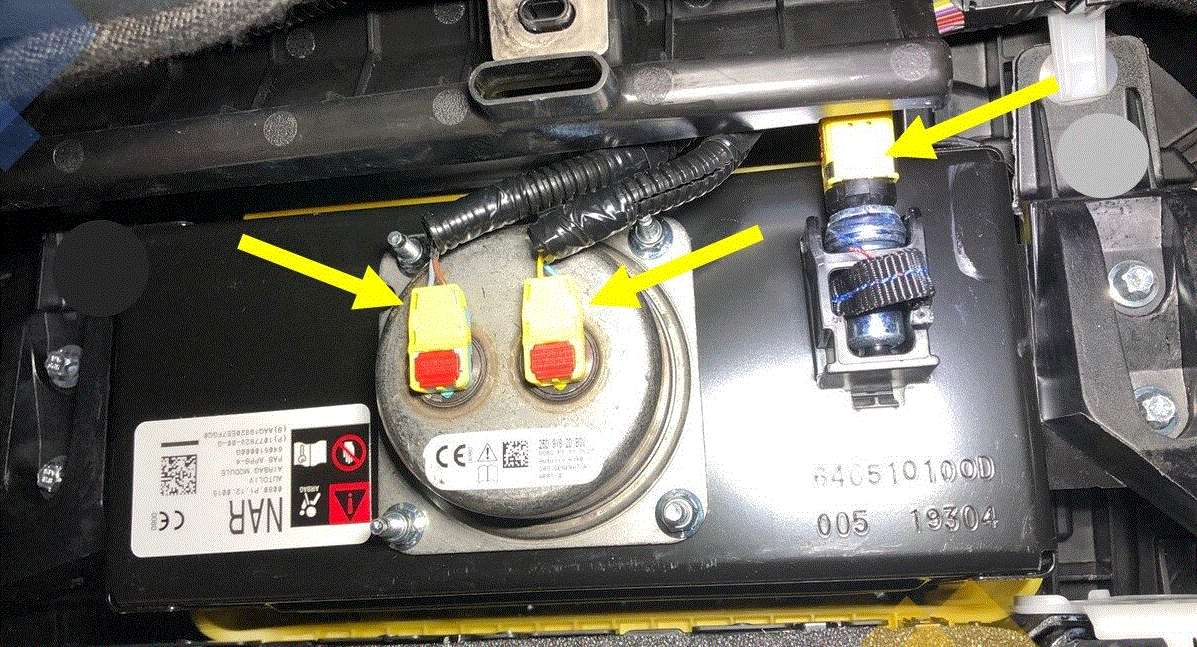

  88. Disconnect connectors for passenger air bag assembly
    NOTE: 3x connectors, 2x connectors for regions other than North America
    G00651143Courtesy of TESLA, INC.

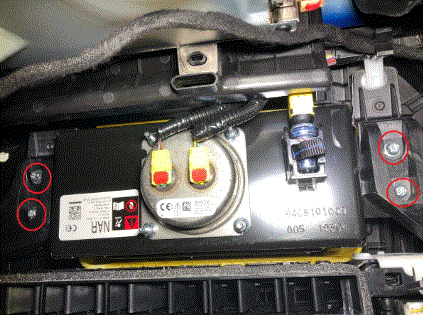

  89. Remove bolts securing passenger air bag assembly to cross car beam
    NOTE:

    4x bolts, E10 patch bolts, 8 Nm, Discard after removal

    G00651144Courtesy of TESLA, INC.
  90. Remove screws securing LH side of IP carrier to cross car beam near passenger air bag
    NOTE: 2x screws, T20, 2.3 Nm
    G00651145Courtesy of TESLA, INC.

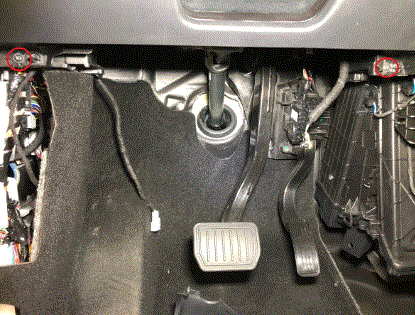

  91. Remove screws securing IP carrier to cross car beam on lower LH side
    NOTE: 2x screws, T20, 2.3 Nm
    G00651146Courtesy of TESLA, INC.

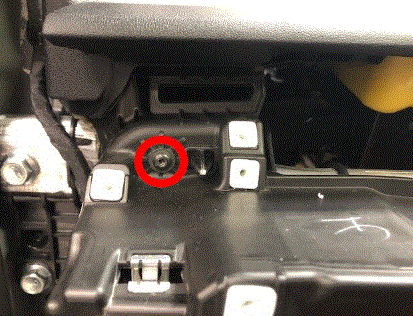

  92. Remove screw securing IP carrier to cross car beam on upper LH side
    NOTE: 1x screw, T20, 2.3 Nm
    G00651147Courtesy of TESLA, INC.

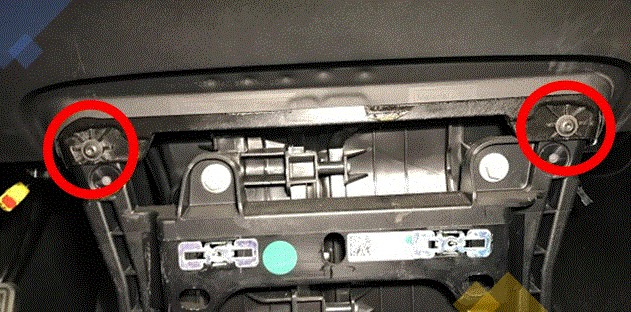

  93. Remove screws securing IP carrier to cross car beam at lower center
    NOTE: 2x screws, T20, 2.3 Nm
    G00651148Courtesy of TESLA, INC.

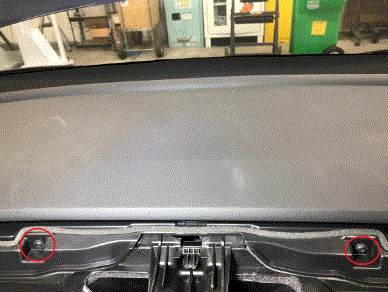

  94. Remove screws securing IP carrier to cross car beam at upper center
    NOTE: 2x screws, T20, 2.3 Nm
    G00651149Courtesy of TESLA, INC.

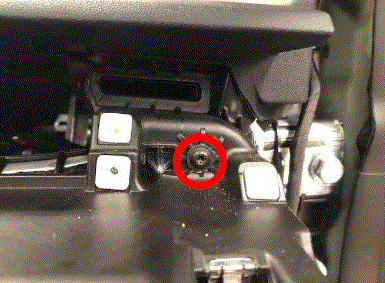

  95. Remove screw securing IP carrier to cross car beam on upper RH side
    NOTE: 1x screw, T20, 2.3 Nm
    G00651150Courtesy of TESLA, INC.

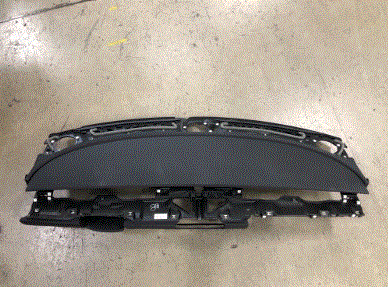

  96. Remove IP carrier from cross car beam
    NOTE: Recommend assistance, Be cautious to clear harness clipped at top center of HVAC assembly
    G00651151Courtesy of TESLA, INC.
About FixVault
