Windshield (Reuse Humidity And Temperature Sensor) (HW3) - Remove And Replace: Notes

Last modified: 17/01/2024 19:50:03

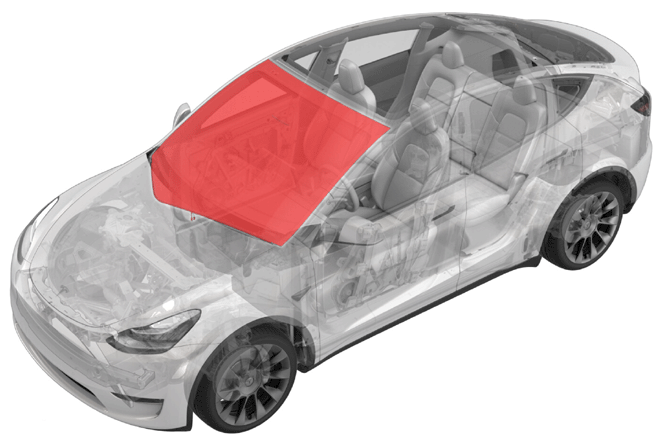

Fig 1: Windshield Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2023-04-12: Added step for jumper harness for pre-GCL vehicles.
2023-05-15: Updated Pre-GCL and GCL windshield heater connector and jumper harness disconnect/connect direction.
2023-08-02: Fixed small errors in the procedure.
2023-10-09: Added a note to remind of verifying that the rubber strip completely separates the windshield from the metal components of the body.
2024-01-18: Updated procedure photos and added missing steps about LH A-pillar trim.

CAUTION: For Europe only: Only technicians who have been trained in working with diisocyanates and have completed all required certification courses are permitted to perform procedures using urethane and other products containing diisocyanates. Proper personal protective equipment (PPE) must be worn when working with products containing diisocyanates.

1571168-00-A WRD Spider 3 Glass Removal Kit
1080594-00-A Equalizer Blade Handle
1727102-00-A M3 THS Foam Fixture
