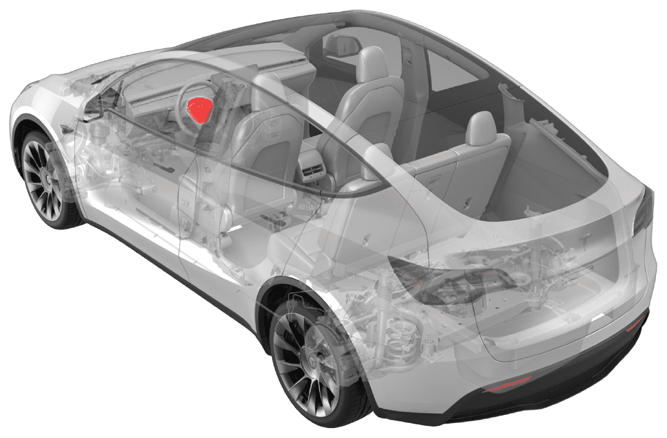

Airbag - Driver - Remove And Replace: Notes
Last modified: 08/11/2023 21:58:15
NOTE:
See Personal Protection
to make sure wearing proper PPE when performing the below procedure.
Revision History:
- 2023-03-23: Updated tool from " small flat-blade screwdrivers" to " valve core removal tool".
- 2023-03-24: Updated text and added image of holes in underside of steering wheel hub.
- 2023-06-06: Add the Valve Core Removal Tool to the tool list.
- 2023-11-09: Added a note about how to use the Valve Core Removal Tool correctly.
- 1143985-00-A Valve Core Removal ToolWARNING: Make sure 12V/LV power has been disconnected for at least 2 minutes before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see Airbag And Supplementary Restraint System (SRS) Precautions .WARNING: Supplementary restraint system (SRS) components can be hazardous if not handled properly. See AIRBAG AND SUPPLEMENTARY RESTRAINT SYSTEM (SRS) PRECAUTIONS .
