Sensor - Shotgun Accelerometer - LH - Remove And Replace: Remove
- Disconnect 12V power. See 12V/LV Power (Disconnect and Connect) .
- Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace) .

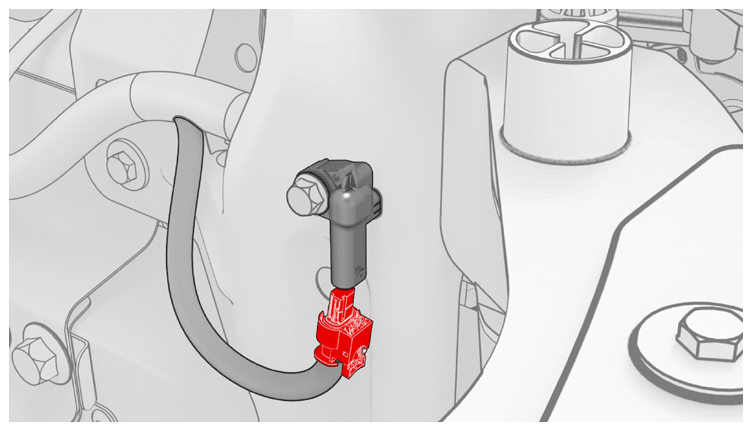

- Disconnect the electrical connector from the shotgun accelerometer sensor by pulling out the tab and then releasing the electrical connector.

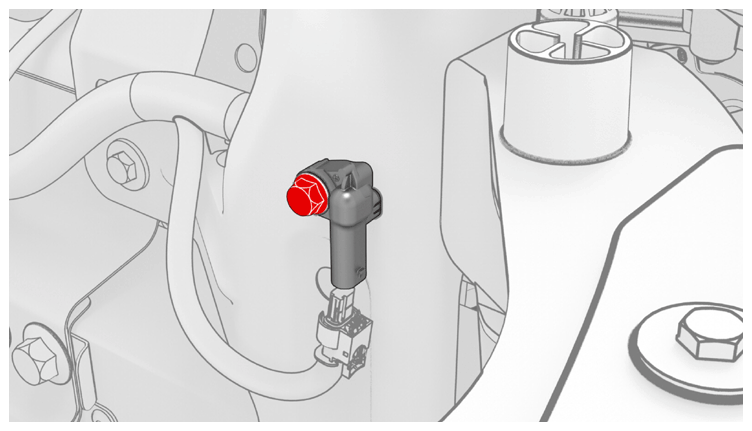

- Remove the bolt that attaches the shotgun accelerometer sensor to the vehicle, and then remove the sensor.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 1/4 in std ratchet
