Window Regulator (Recalibrate) - Module Reset/Reflashed: Procedure

  1. Get into the driver seat, and then close the door.
  2. Use the touchscreen to enable Service Mode. See SERVICE MODE .
  3. Unlock the vehicle gateway. See GATEWAY UNLOCK

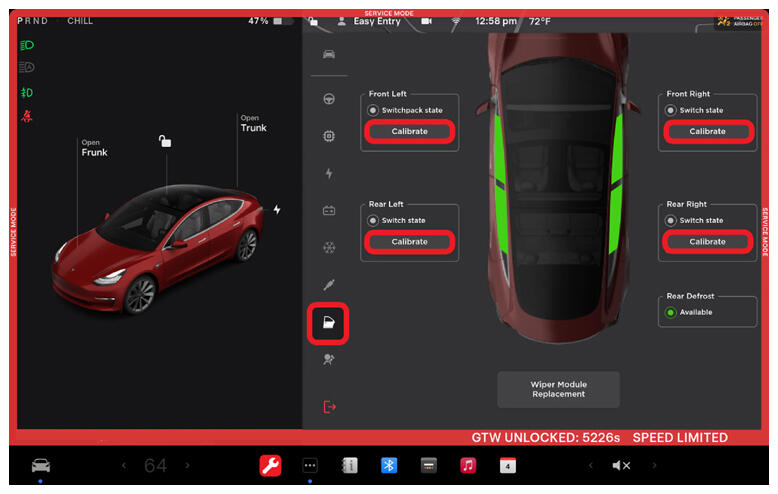

  4. On the touchscreen, touch Controls > Service Mode > Closures > Windows  , and then tap each window's Calibrate  button to calibrate the windows.
    G16588205Courtesy of TESLA, INC.
    NOTE: During window calibration, the selected window(s) will roll up and down until window calibration is complete.
    CAUTION: Pinch detection is disabled during window calibration.
  5. Exit Service Mode. See SERVICE MODE .
