Clear Forward Camera View (Precision Cleaning Of Inboard Windshield): Notes

Last modified: 01/07/2024 20:24:44

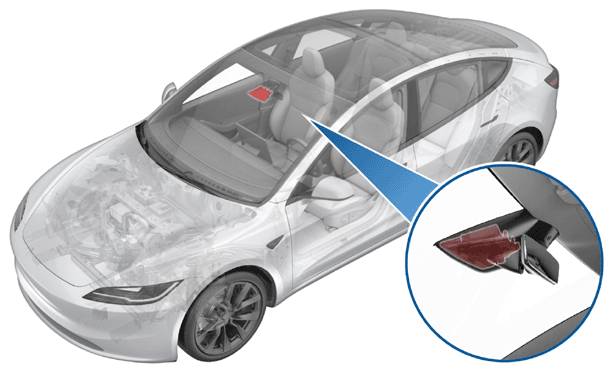

Fig 1: Clear Forward Camera View Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2024-07-02: Updated tool part numbers.
2024-06-18: Updated the inspection method and diagrams and added the tool list.
2024-03-07: Added detailed instructions on how to clean the windshield and added steps of camera inspection after cleaning.
2024-03-19: Added DAS reset steps.

Glass Cleaner:
- 1083742-02-A - Zep glass cleaner (preferred if available in your region)
- Invisible Glass - Premium Glass Cleaner
- Wurth Glass Cleaner (for China: 2092858-00-A)
Lint free Microfiber towels:
- 2084223-00-A - 6 pack
- 2084180-00-A - 120 pack
- For China: 2092859-00-A
- If the above part numbers are not available in your region, use other New, Lint Free microfiber towels.
LED flashlight:
- 1523885-00-A - LIGHT, PEN STYLE, RECHARGEABLE
