1965-71 Models: Notes

  1. - Left Low Beam.
  2. - Right Low Beam.
  3. - Tail, License Plate, and Glove Box Lights.

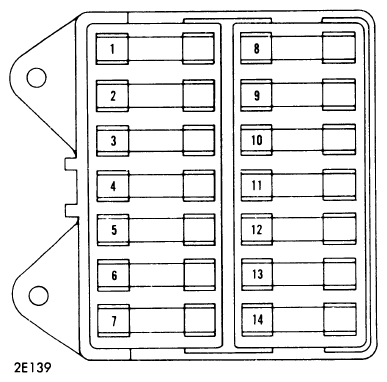

    Fig 1: 1972 Crown Fuse Block
    G09325478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. - Front Parking Lights.
  5. - Left High Beam.
  6. - Right High Beam and High Beam Indicator Light.
  7. - Power Windows.
  8. - Meter Pilot Light.
  9. - Radio.
  10. - Cigar Lighter, Clock, Inspection Light Socket, Horn, Stop, Interior, and Courtesy Lights.
  11. - Heater.
  12. - Gauges and Back-Up Lights.
  13. - Turn Signals and Voltage Regulator.
  14. - Wiper and Washer Motors.
