Repair and Diagnosis: Transmission: Clutches: Description

Clutch is a dry, single plate, diaphragm spring type. Clutch is engaged or disengaged by a hydraulic system actuated by clutch pedal. A pre-lubricated clutch released bearing is also employed.

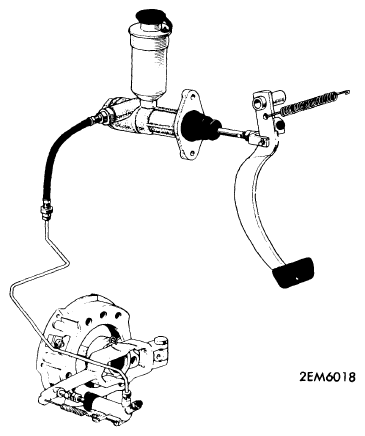

Fig 1: Clutch Components
