Distributor Diaphragm Operation

Remove distributor cap and rotor dust cover. Apply vacuum to advance mechanism and note that mechanism operates properly as vacuum is applied.

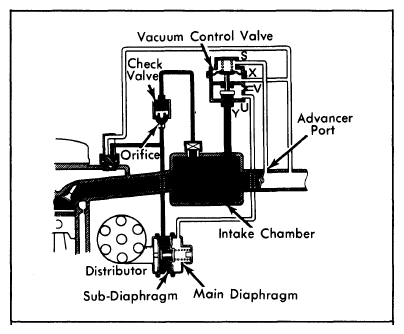

Fig 1: 1979 Cressida Spark Control

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

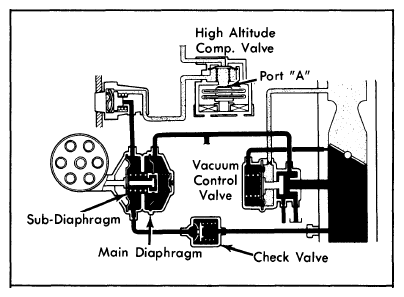

Fig 2: 1979 Land Cruiser Spark Control

Fig 3: 1979 Supra Spark Control
