Wiring Diagrams: Wiring Diagram

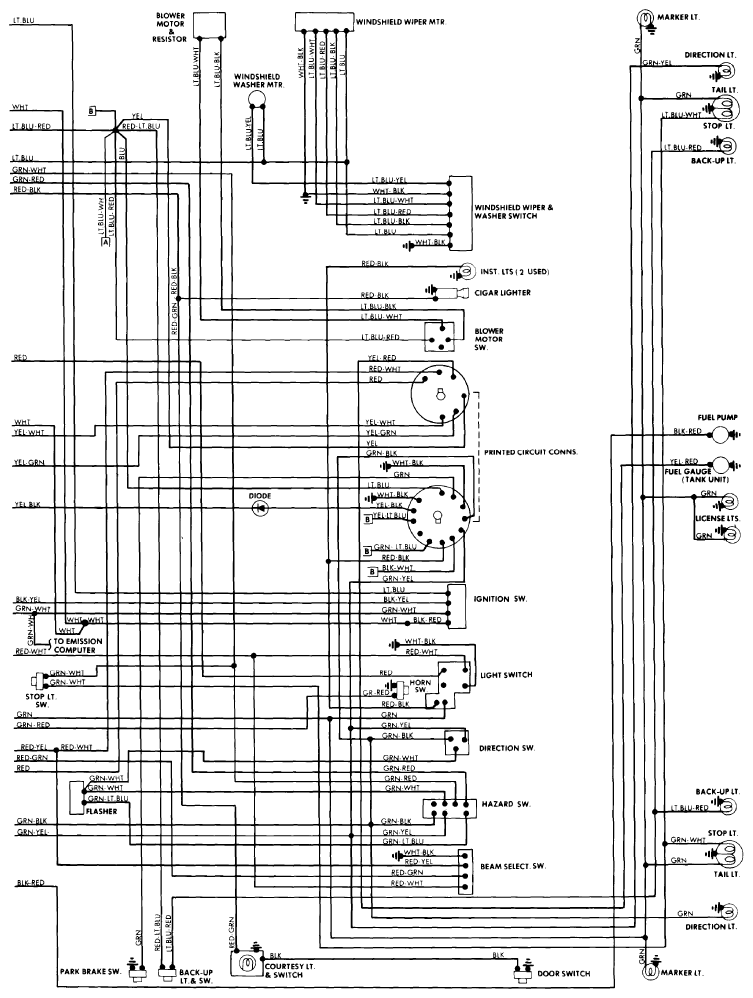

Fig 1: Wiring Diagram - Pickup (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

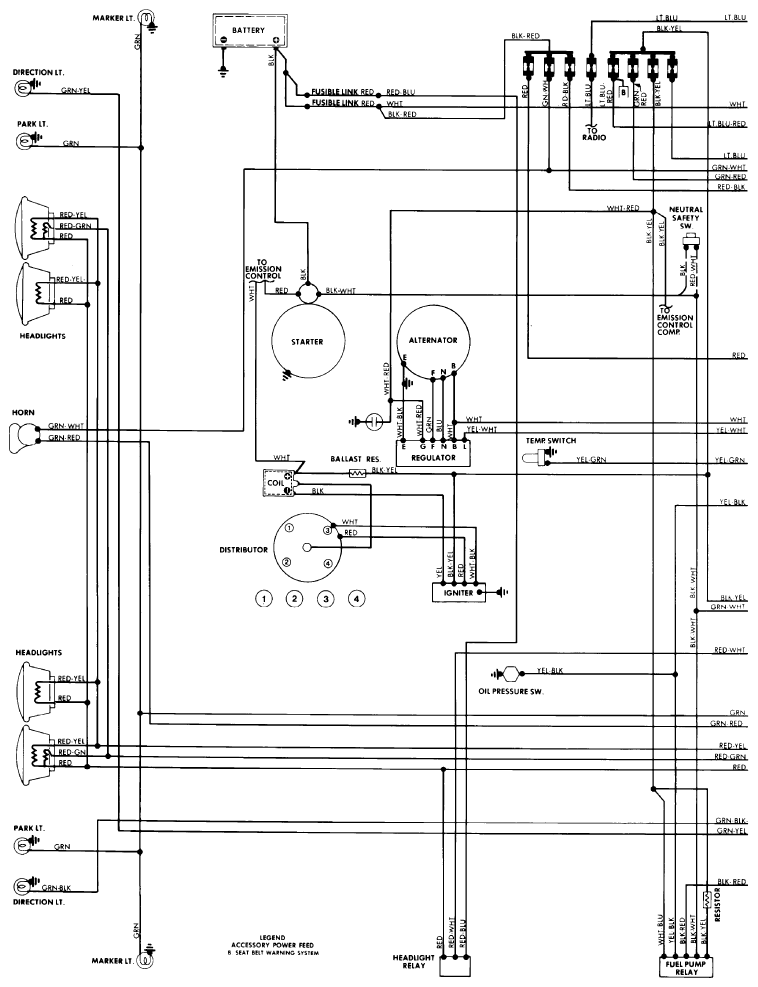

Fig 2: Wiring Diagram - Pickup (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
