Outer Vent Control Valve

With valve installed, remove hoses. Turn ignition switch off. Blow air through one side of valve. Air should pass through.

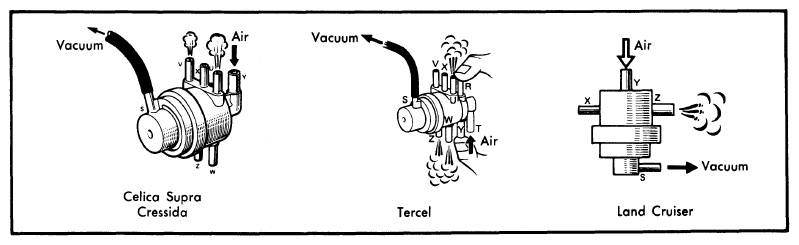

Fig 1: Testing Vacuum Control Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Turn ignition switch to "ON". Repeat air application. Air should not pass through valve.
Visually check wiring and fuse condition.
