Repair and Diagnosis: Transmission: Clutch: Clutches: Description

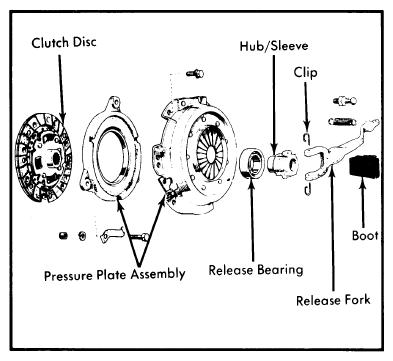

Clutch is a dry, single plate, diaphragm spring type which is hydraulically operated by a firewall mounted master cylinder and clutch housing mounted slave cylinder. The slave cylinder used on 4-WD Pickup is adjustable; all others are non-adjustable and clearance is automatically compensated for by internal design of cylinder.
