Hot Idle COMPENSATOR: Description

This unit is located on the air cleaner and works to supply additional air to the intake manifold when high temperature conditions exist. This helps maintain the proper air/fuel mixture under these conditions.

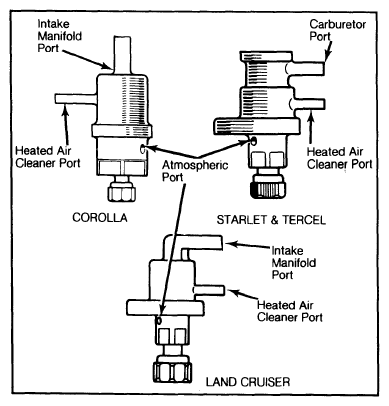

Fig 1: Hot Idle Compensator Valves
G09323357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
