Choke Unloader

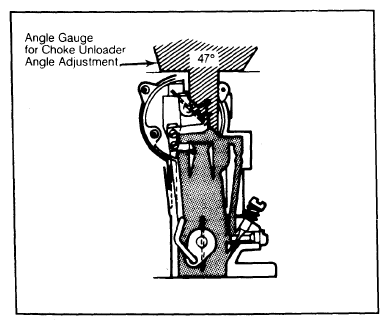

Insert angle gauge. With primary throttle valve fully open, adjust angle of choke valve to 47° from fully closed position. Bend fast idle lever to obtain correct angle. See Fig 1.
Insert angle gauge. With primary throttle valve fully open, adjust angle of choke valve to 47° from fully closed position. Bend fast idle lever to obtain correct angle. See Fig 1.
