AISAN 2-Barrel -- TOYOTA 22R Engine: Adjustments: Unloader

Fully open primary throttle valve. Insert angle gauge. Adjust choke valve angle to 45° by bending first throttle arm at "A". See Fig 1.

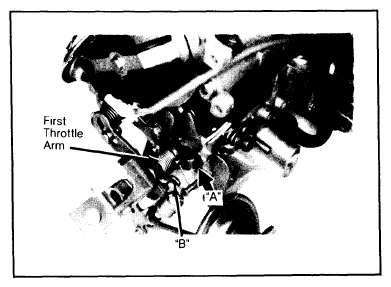

Fig 1: Choke Unloader & Throttle Valve Adjustment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
