Float Assembly

Remove pivot pin and float. Remove needle valve and seat. Remove power piston retainer, piston and spring. See Fig 1.

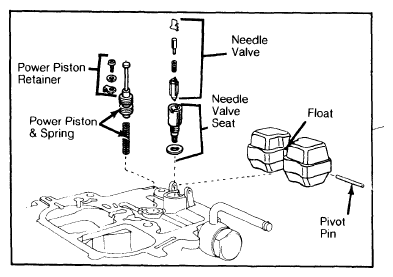

Fig 1: Exploded View of Carburetor Float Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
