Engine Oiling System

Force-feed system ensures positive lubrication through oil holes and galleries in engine block. See Fig 1.

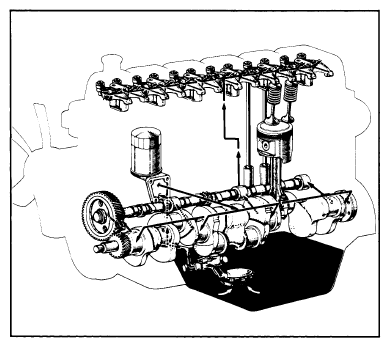

Fig 1: Toyota 2F Engine Oiling System
G09332333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
