Wiper Switch: Installation

To install, reverse removal procedure.

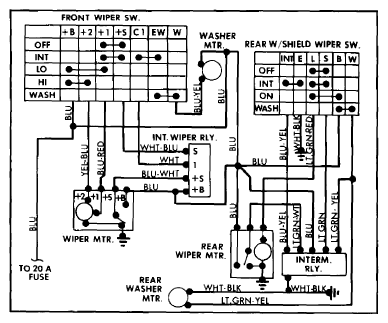

Fig 1: Celica Wiper Wiring Diagram

G09331901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

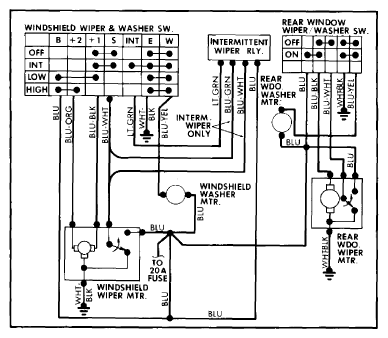

Fig 2: Corolla Wiper Wiring Diagram

G09331902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Land Cruiser FJ40 Wiper Wiring Diagram

G09331903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

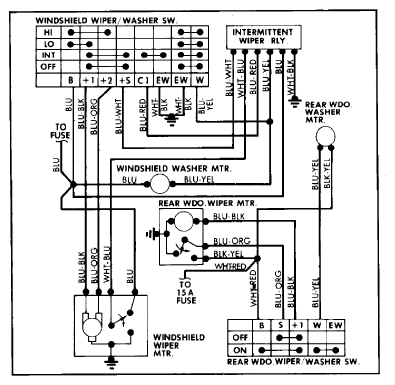

Fig 4: Cressida Wiper Wiring Diagram

G09331904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

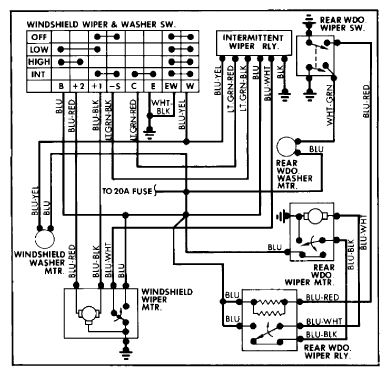

Fig 5: Corona Wiper Wiring Diagram

G09331905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

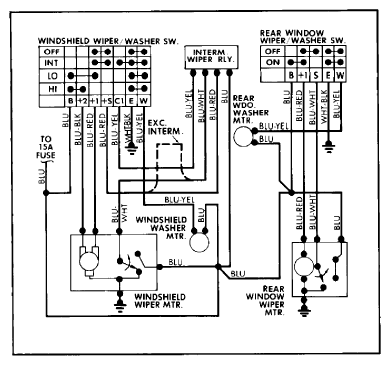

Fig 6: Land Cruiser FJ60 Wiper Wiring Diagram

G09331906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Pickup Wiper Wiring Diagram

G09331907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

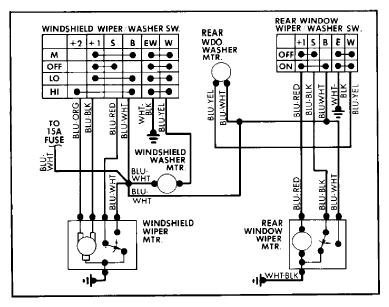

Fig 8: Starlet Wiper Wiring Diagram

G09331908

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

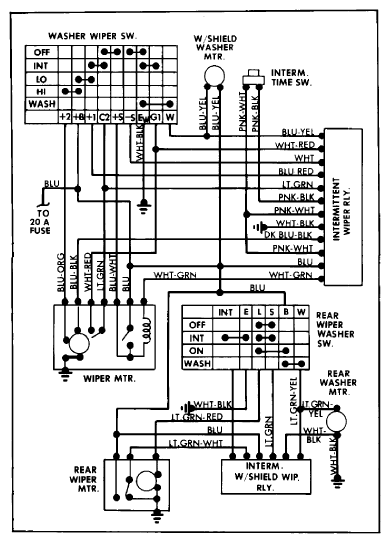

Fig 9: Supra Wiper Wiring Diagram

G09331909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

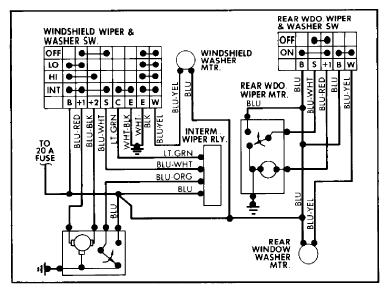

Fig 10: Tercel Wiper Wiring Diagram

G09331910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
