Float Assembly
- Remove float pivot pin, float and needle valve subassembly. Remove pump plunger, power piston and spring. Remove fast idle cam connecting link.

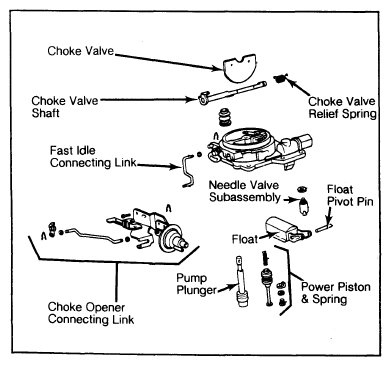

- Remove choke opener and connecting link. If necessary to replace choke valve or shaft, file off ends of choke valve set screws. Remove choke valve, shaft and relief spring. See Fig 1.
