Diagnostic Circuit Check

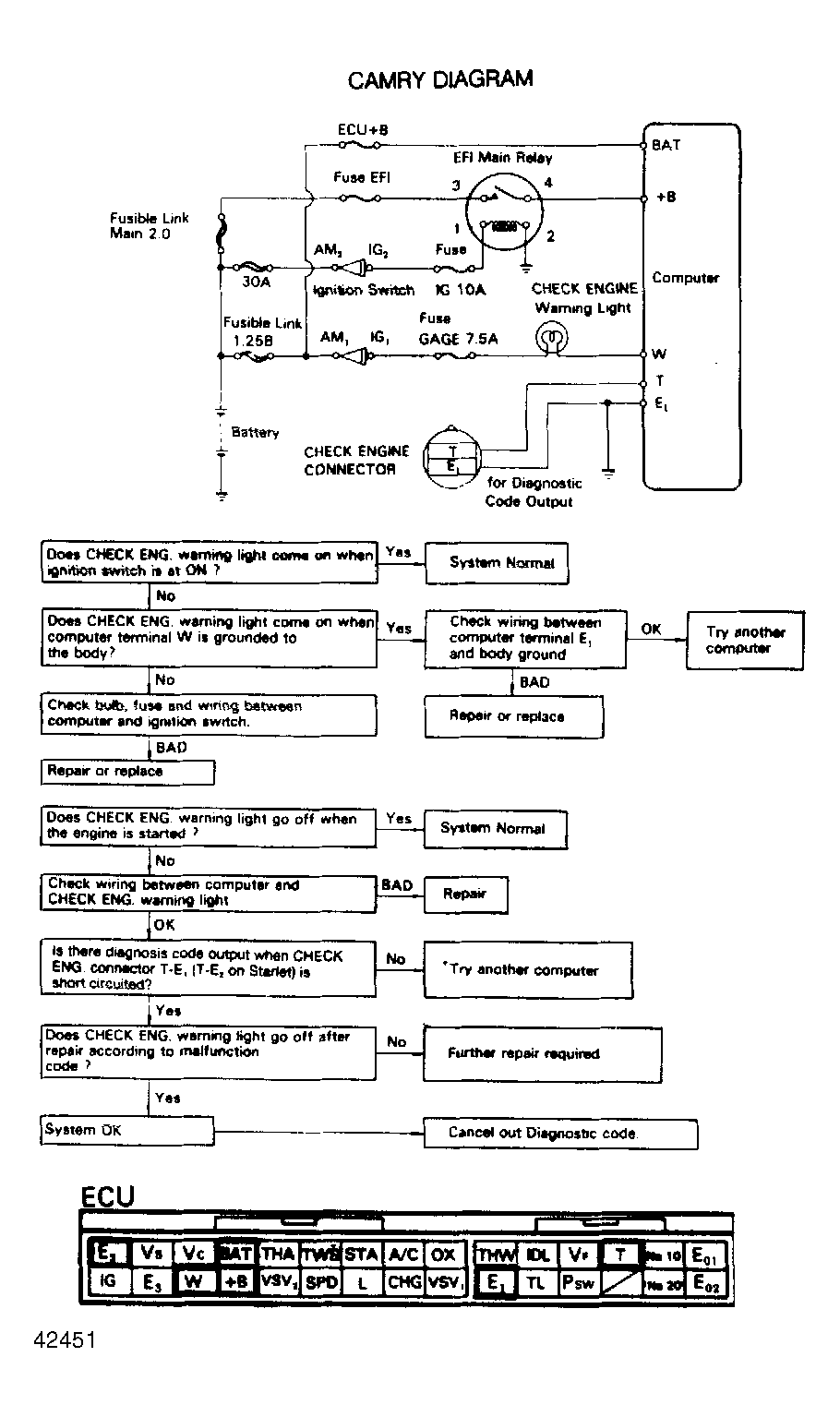

Fig 1: Camry Diagnostic Circuit Check & Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
