Diagnostic Circuit Check

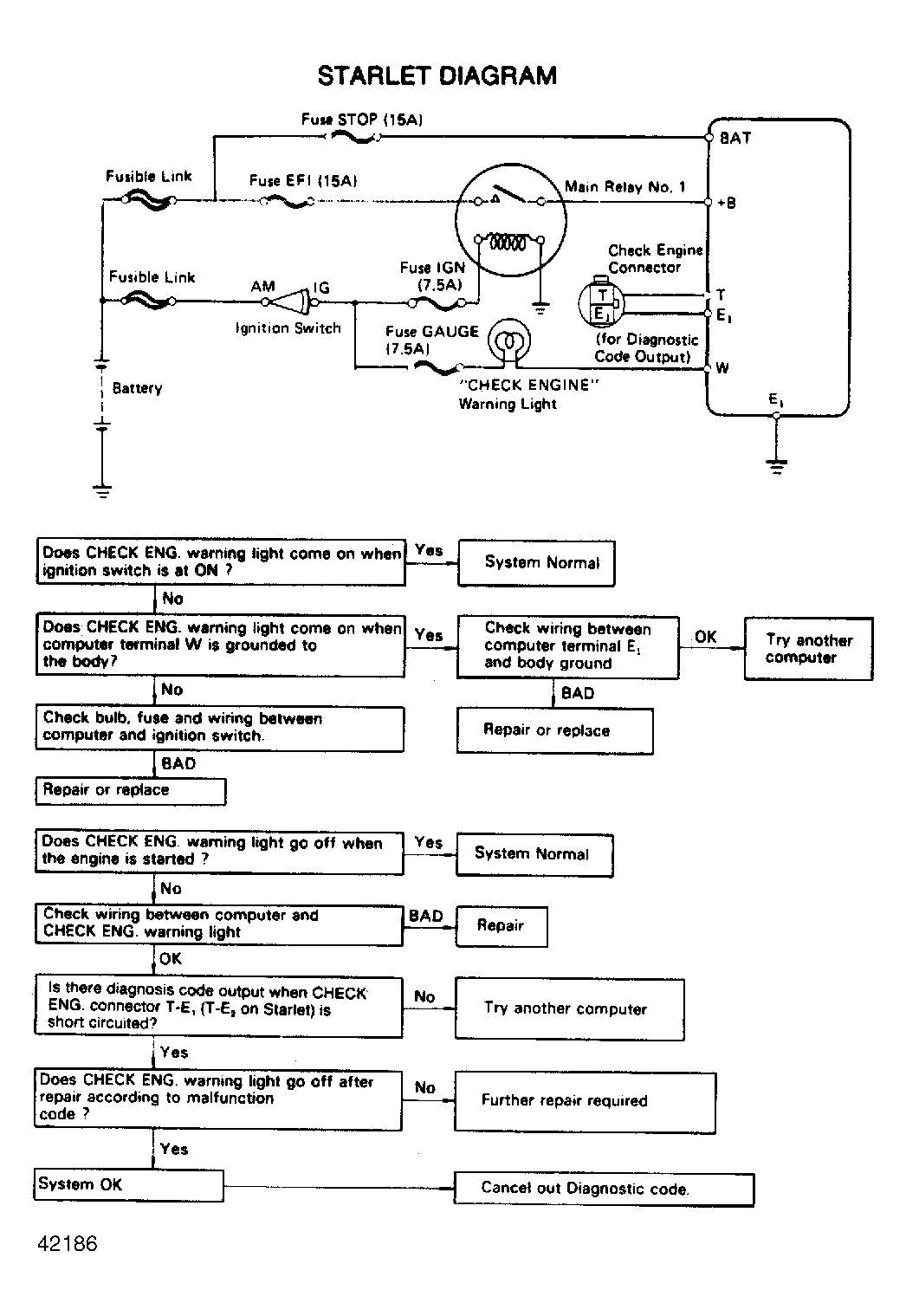

Fig 1: Starlet Diagnostic Circuit Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
