Alternator - NIPPONDENSO: Description

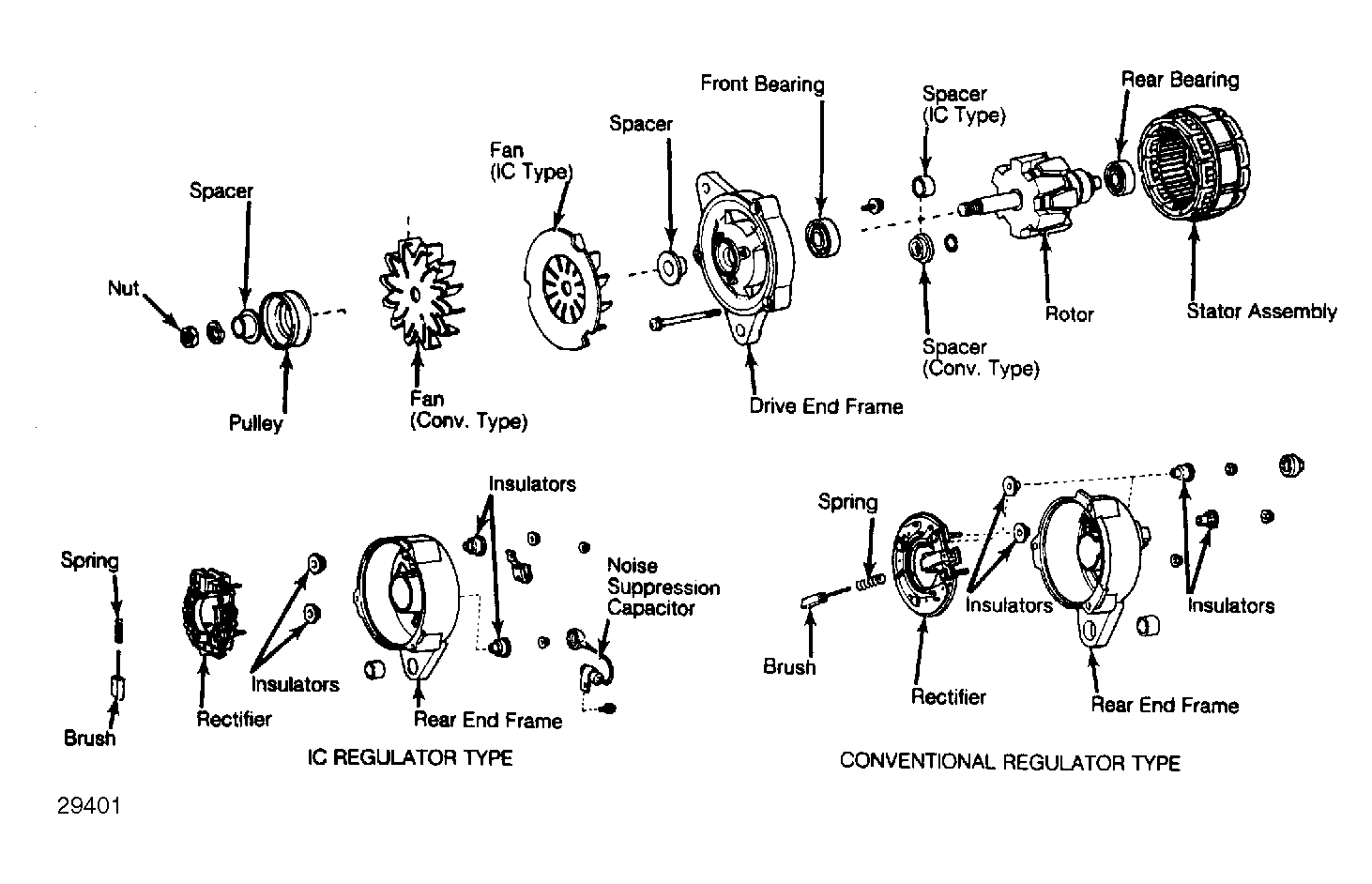

Nippondenso alternators are conventional 3-phase alternators utilizing 6 diodes (3 positive and 3 negative) to rectify current. Charge control may be by either internal Integrated Circuit (IC), or external IC or contact point type regulators.
NIPPONDENSO ALTERNATOR APPLICATION
| Model | Amps | (1) Part No. | ||
|---|---|---|---|---|
| Camry | 70 | 27060-63020 | ||
| Celica | 55 | 27060-35040 | ||
| " | 60 | 27020-35020 | ||
| Corolla | 50 | 27020-15110 | ||
| " | 55 | 27060-15030 | ||
| Cressida | 65 | 27060-43030-84 | ||
| Land Cruiser | 40 | 27020-61100 | ||
| " | 55 | 27020-61071 | ||
| Pickup (Diesel) | 55 | 27020-54080 | ||
| Pickup (Gas) | 40 | 27020-35050 | ||
| Starlet | 55 | 27060-13020 | ||
| Supra | 65 | 27060-43030-84 | ||
| Tercel (Conventional) | 50 | 27020-15120 | ||
| Tercel (IC Type) | 55 | 27060-15020 | ||
|
||||
