Trouble Code 4 - Coolant Temp. Sensor & Circuit
Trouble Code 4 - Coolant Temp. Sensor & Circuit

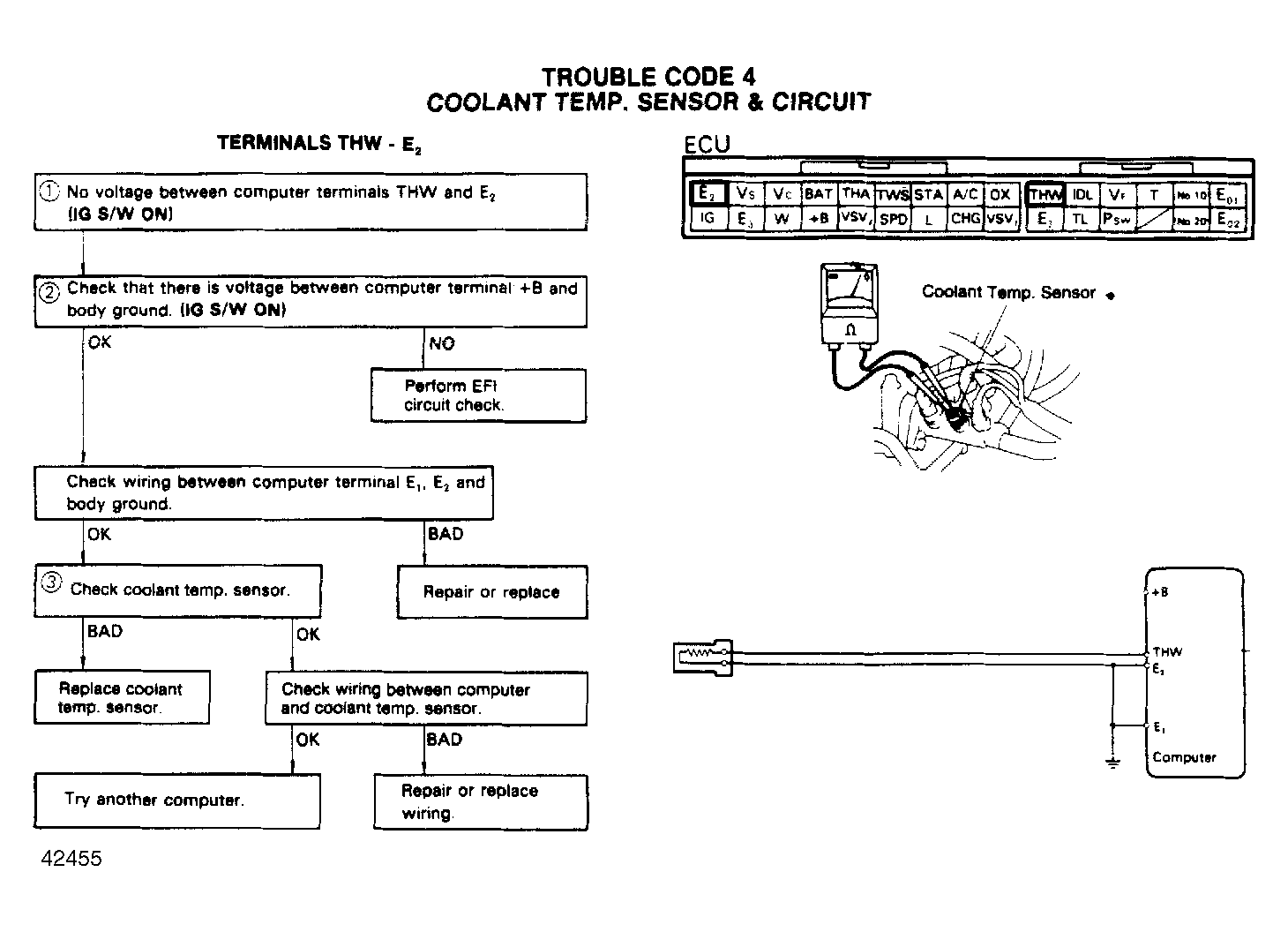

Fig 1: Trouble Code 4, Terminals THW - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
