Trouble Codes 2 & 3 - Air Flow Meter & Circuit

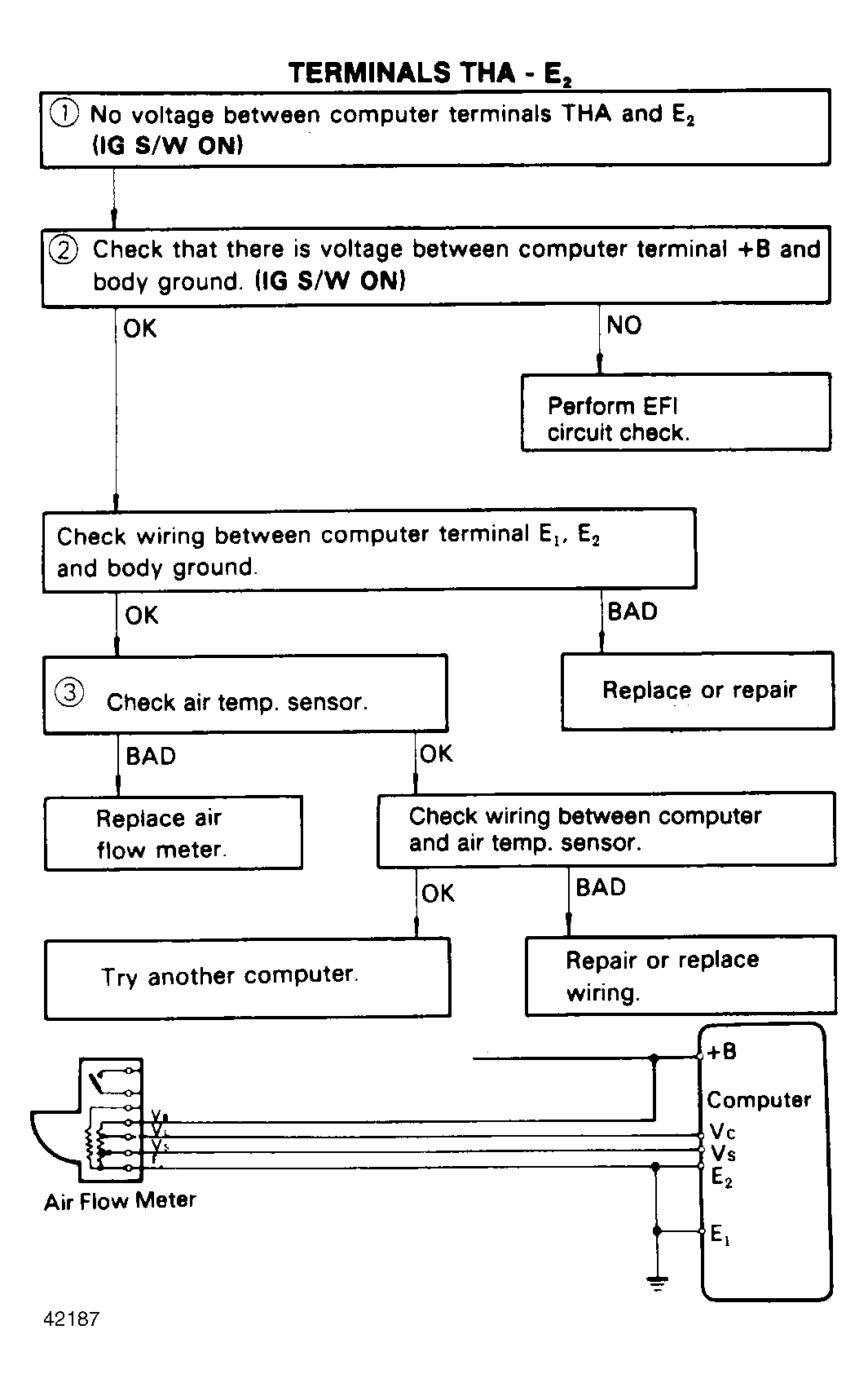

Fig 1: Trouble Codes 2 & 3, Terminals THA - E2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

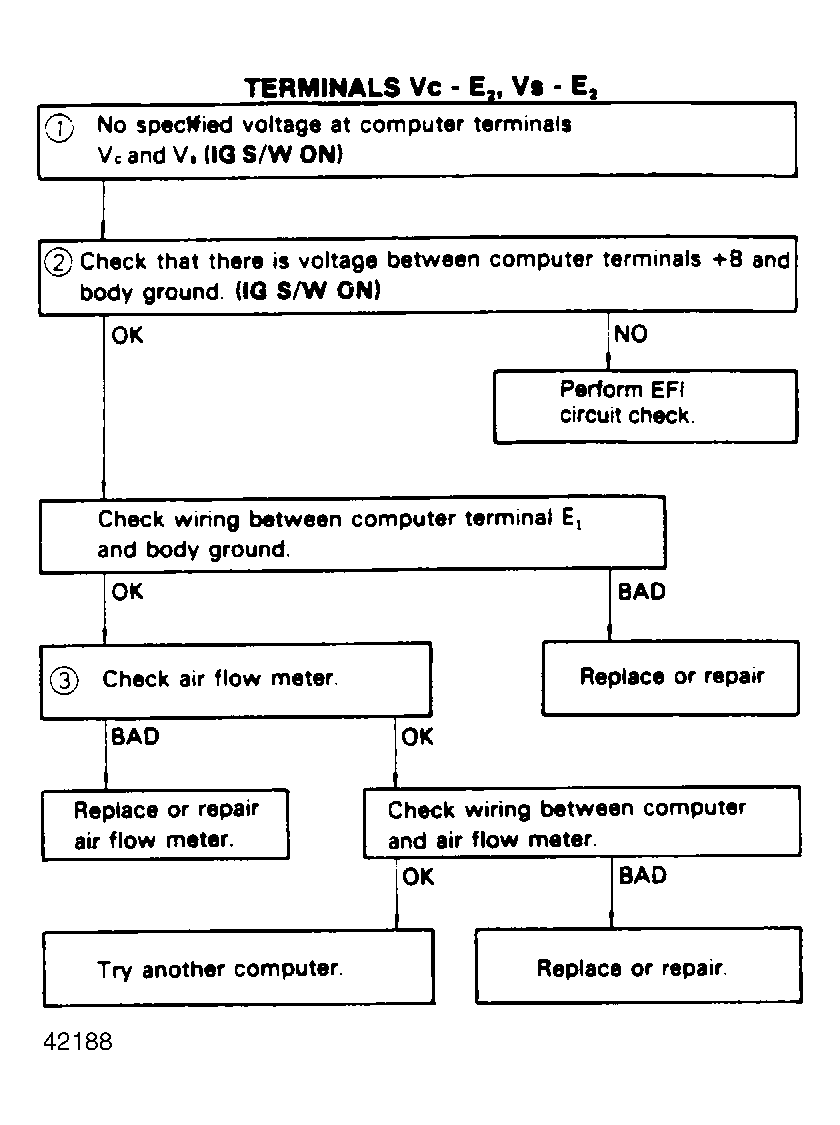

Fig 2: Trouble Codes 2 & 3, Terminals Vc - E2, Vs - E2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
