FixVault
Home
›
Toyota
›
1984
›
Celica Supra L
›
Repair and Diagnosis
›
Engine Performance
›
System
›
TCCS Engine Control System
›
Testing
›
Injector Circuits Check
Injector Circuits Check

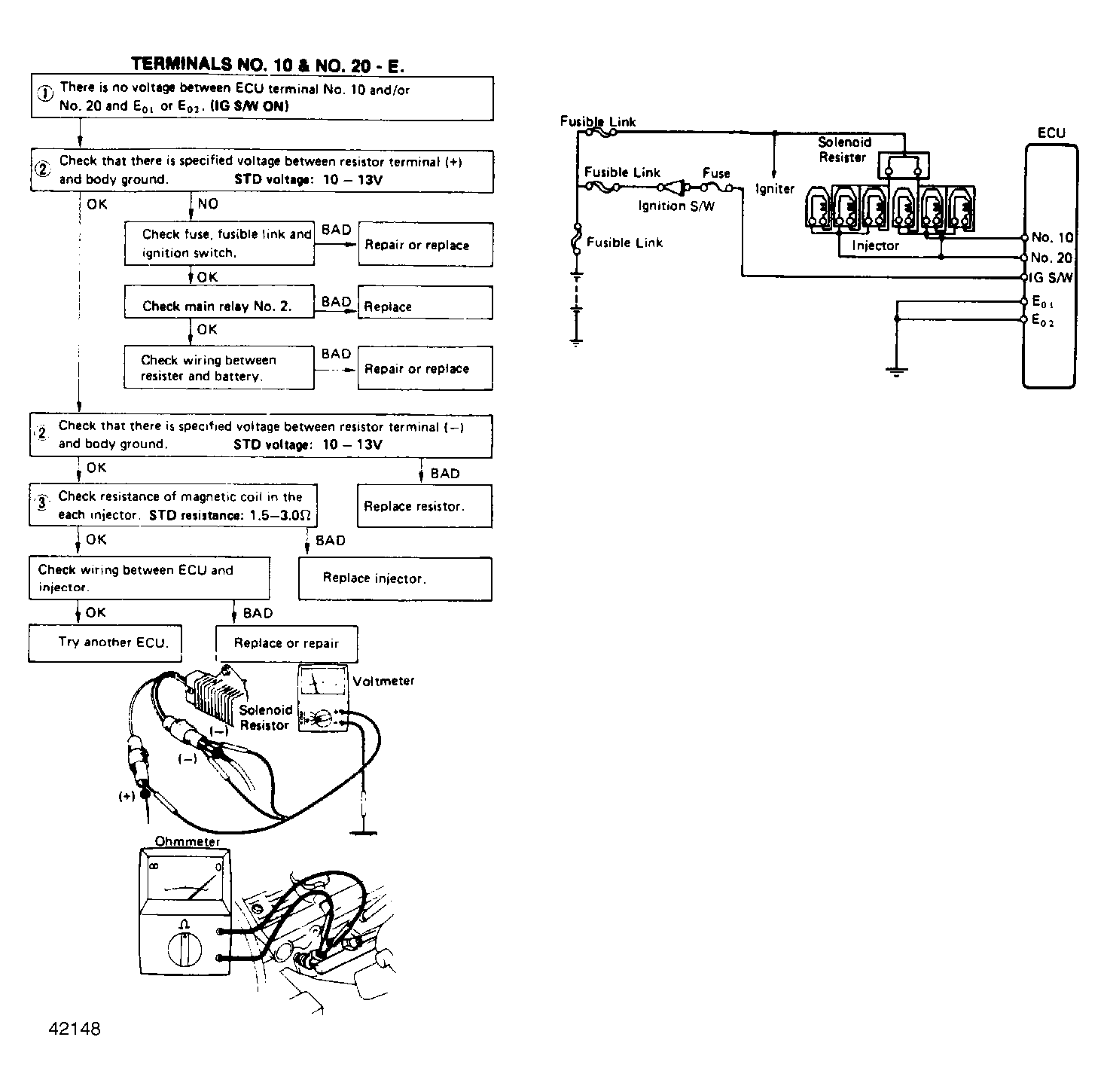

Fig 1: Injector Circuits Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
