Trouble Code 11 - Main Relay & Circuit

Fig 1: Trouble Code 11, Terminal Bat - E1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Trouble Code 11, Terminal IG S/E - E1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Trouble Code 11, Terminal +B -E1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

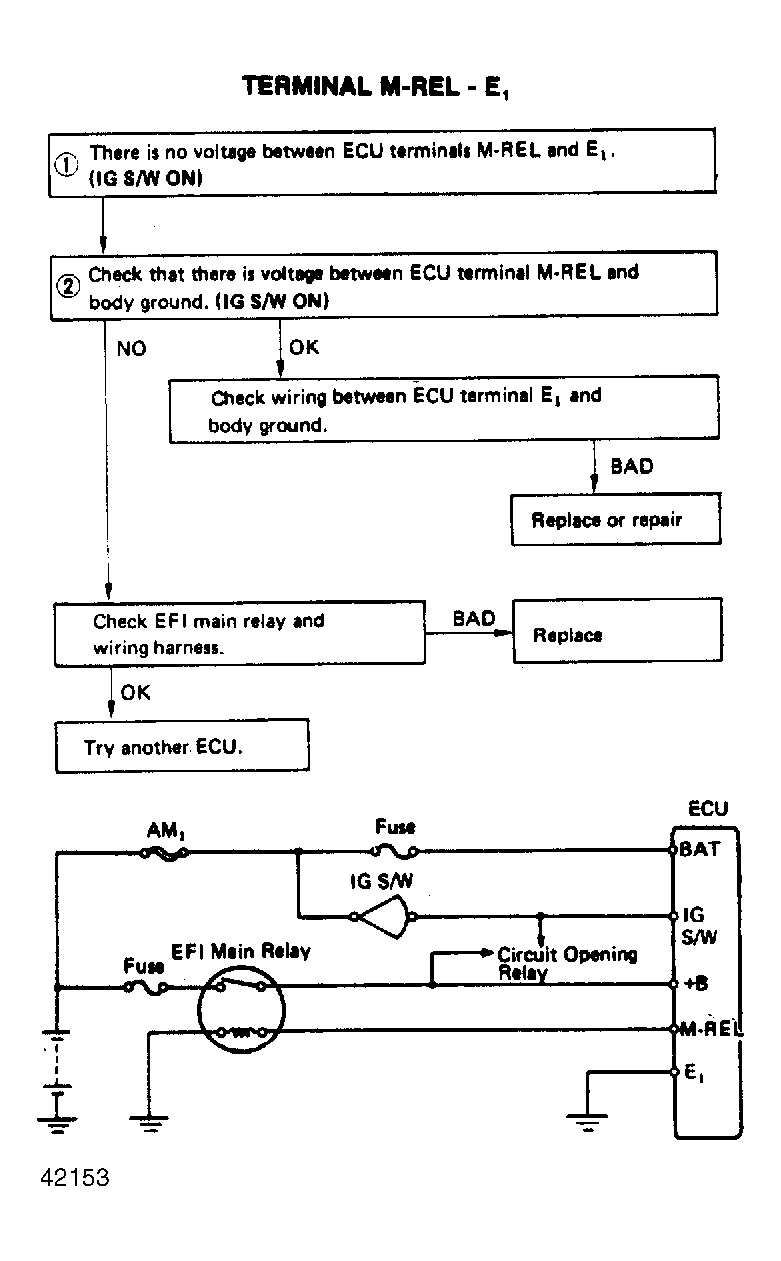

Fig 4: Trouble Code 11, Terminal M-REL - E1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
