Trouble Code 41 TPS Sensor & Circuit

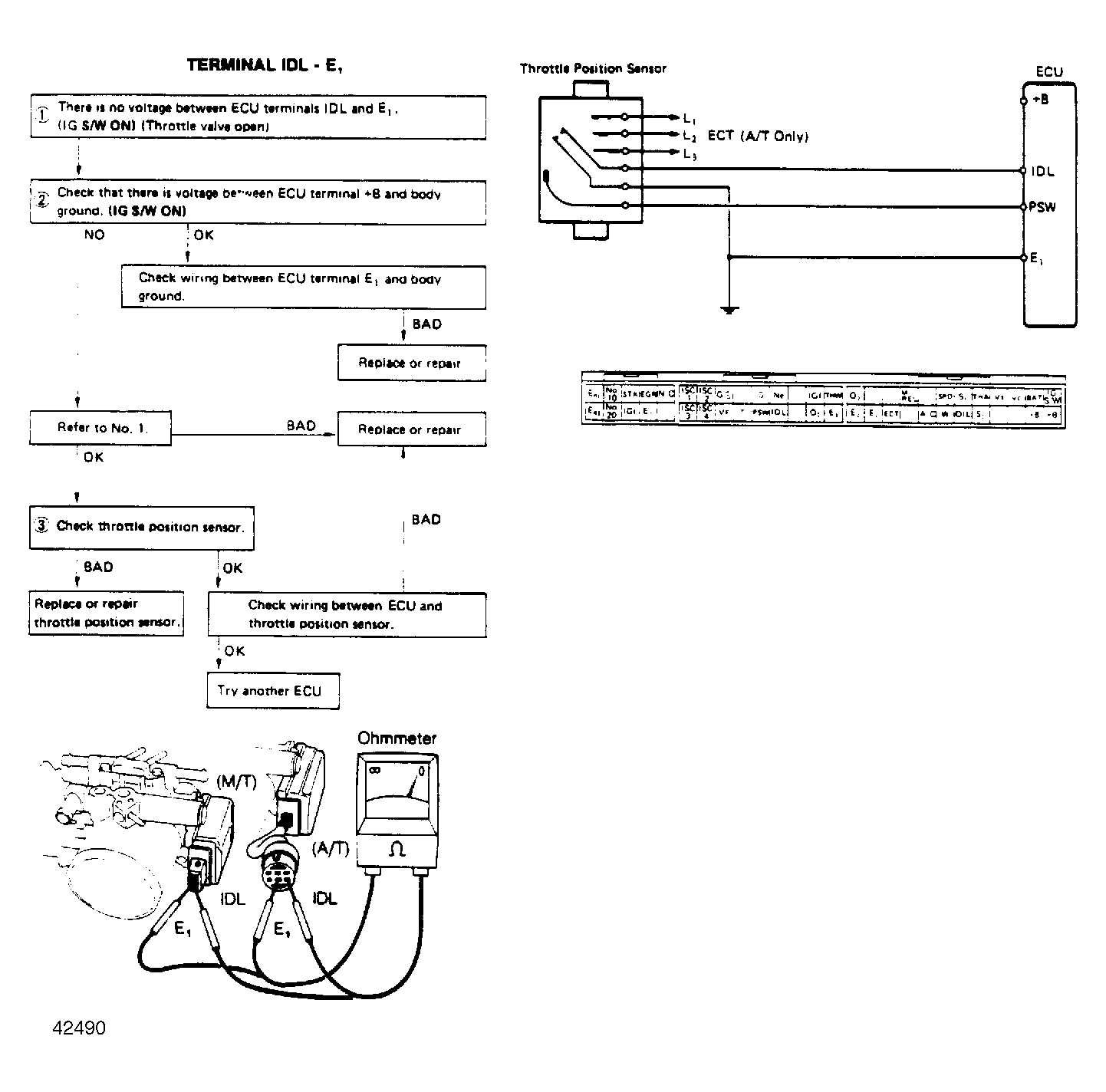

Fig 1: Trouble Code 41, Terminal IDL - E1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

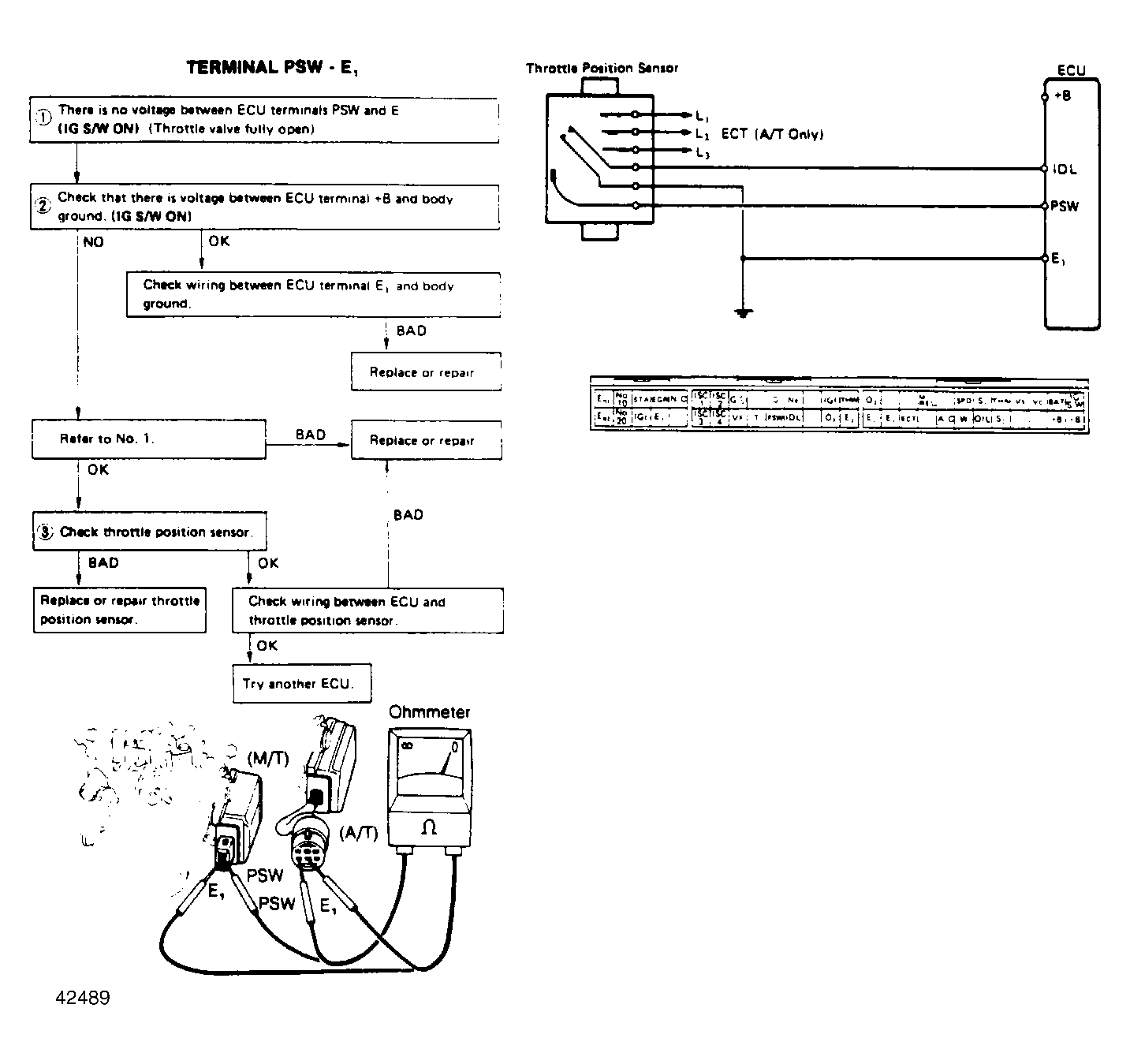

Fig 2: Trouble Code 41, Terminal PSW - E1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
