Code 5 - O2 Sensor & CKT

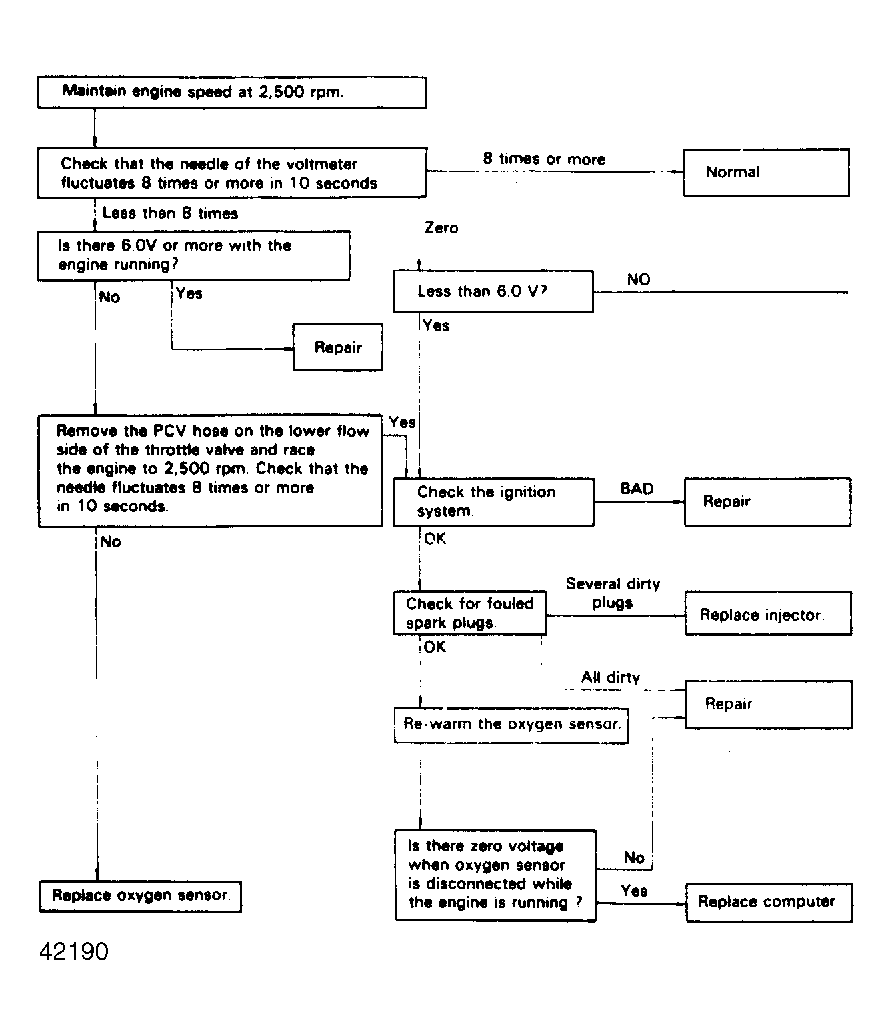

Fig 1: Trouble Code 5, Oxygen Sensor & Circuit (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

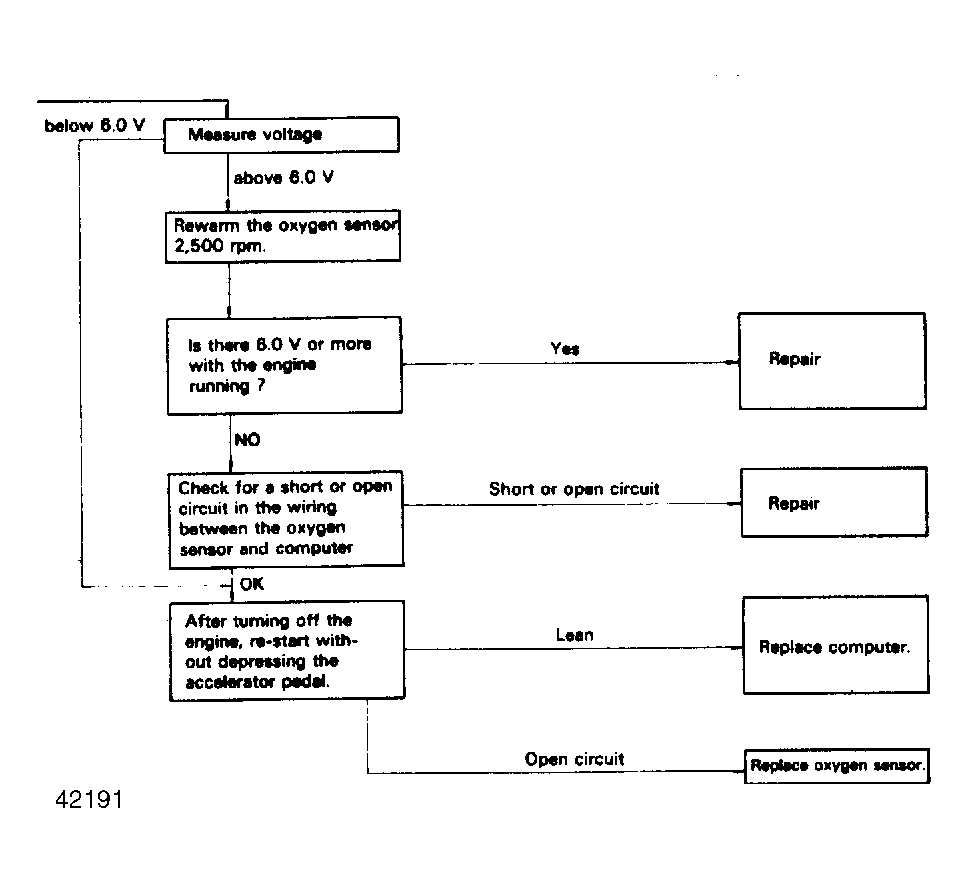

Fig 2: Trouble Code 5, Oxygen Sensor & Circuit (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
