TCCS System
›
Testing
›
"Check Engine" Light Off
"Check Engine" Light Off

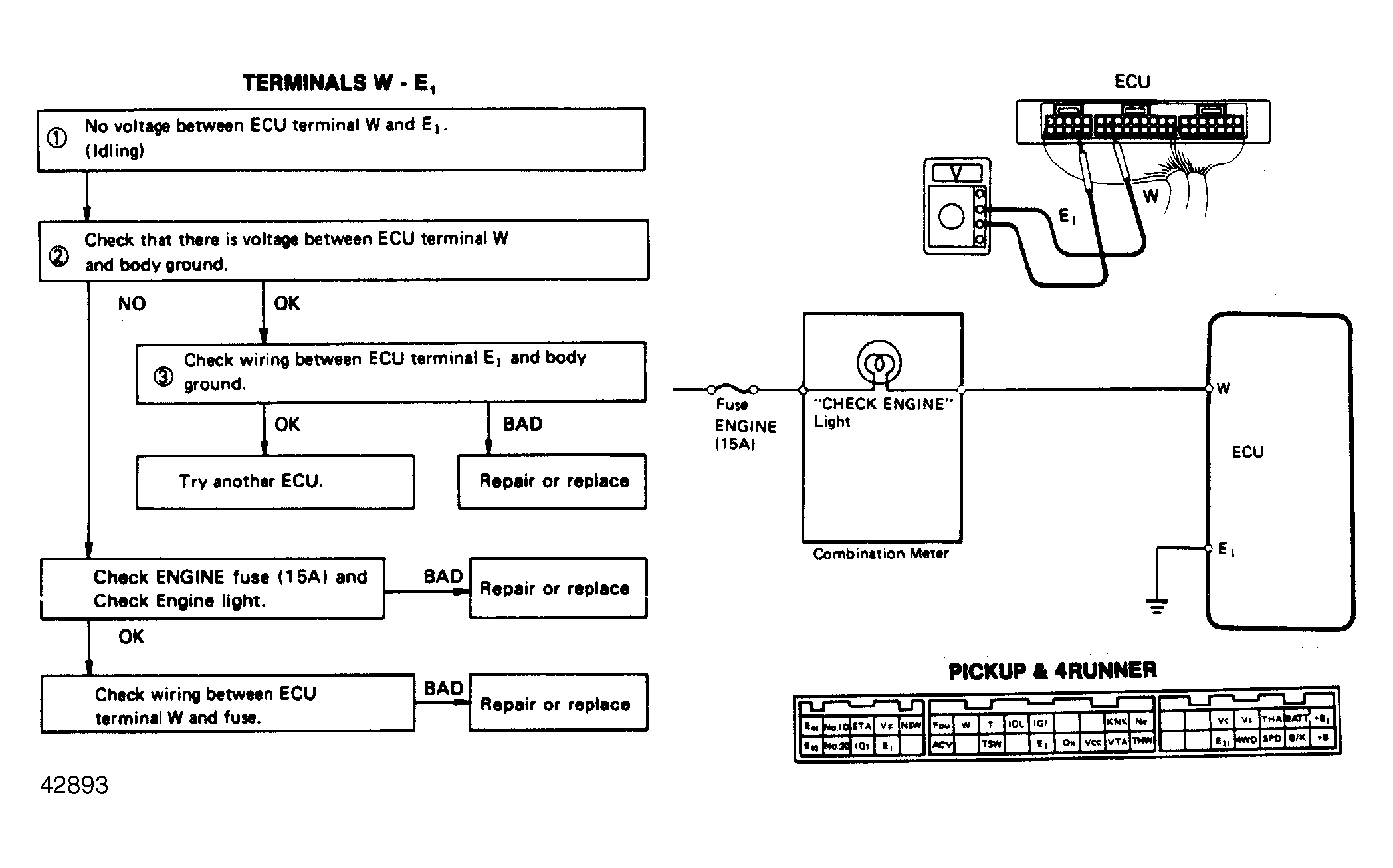

Fig 1: Terminals W - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
