Trouble Code 10 Blinks - Main Relay & Circuit
Trouble Code 10 Blinks - Main Relay & Circuit

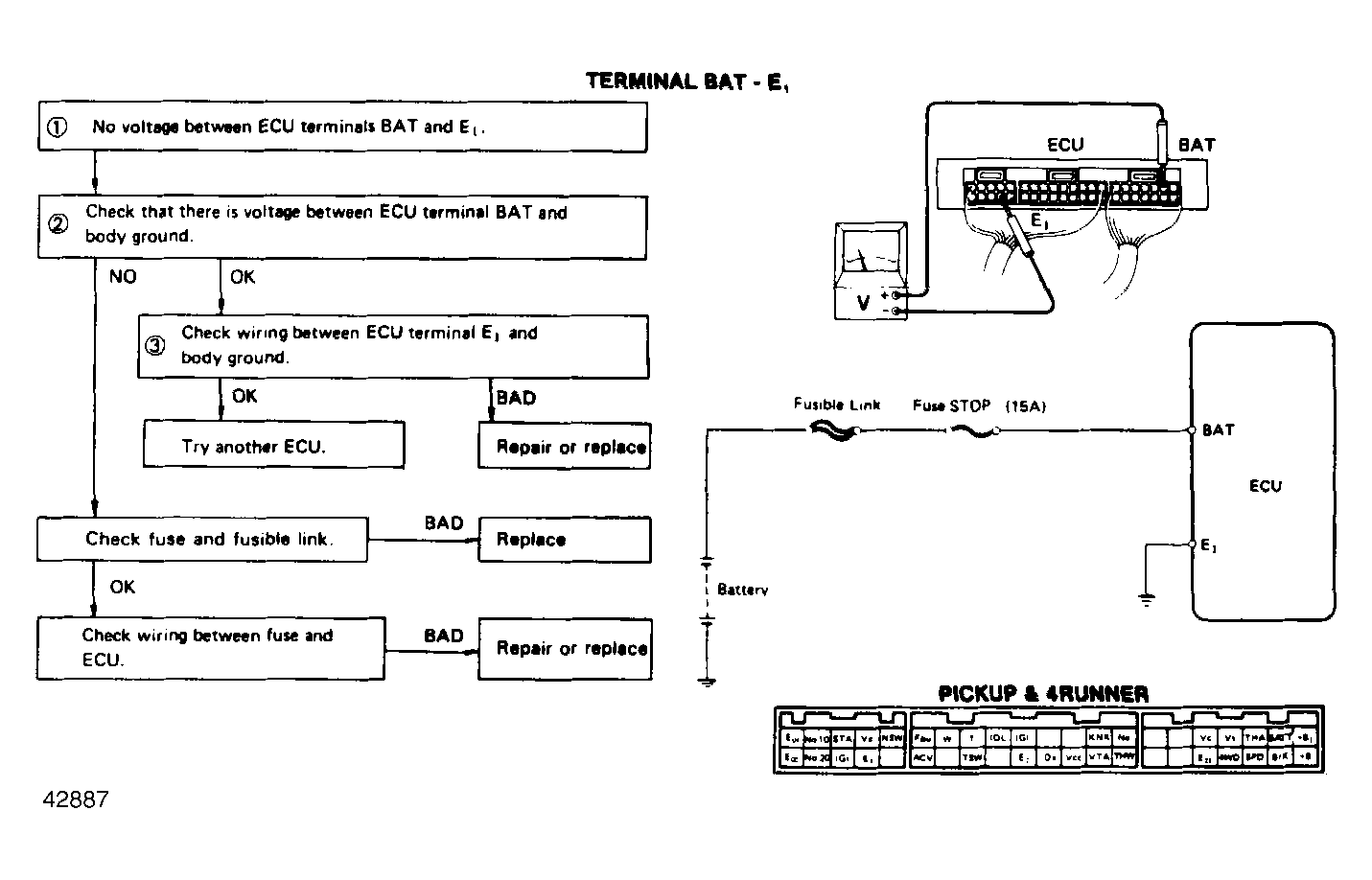

Fig 1: Terminal BAT - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
