Trouble Code 6 - Ignition Signal
Trouble Code 6 - Ignition Signal
Fig 1: Terminals IG - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

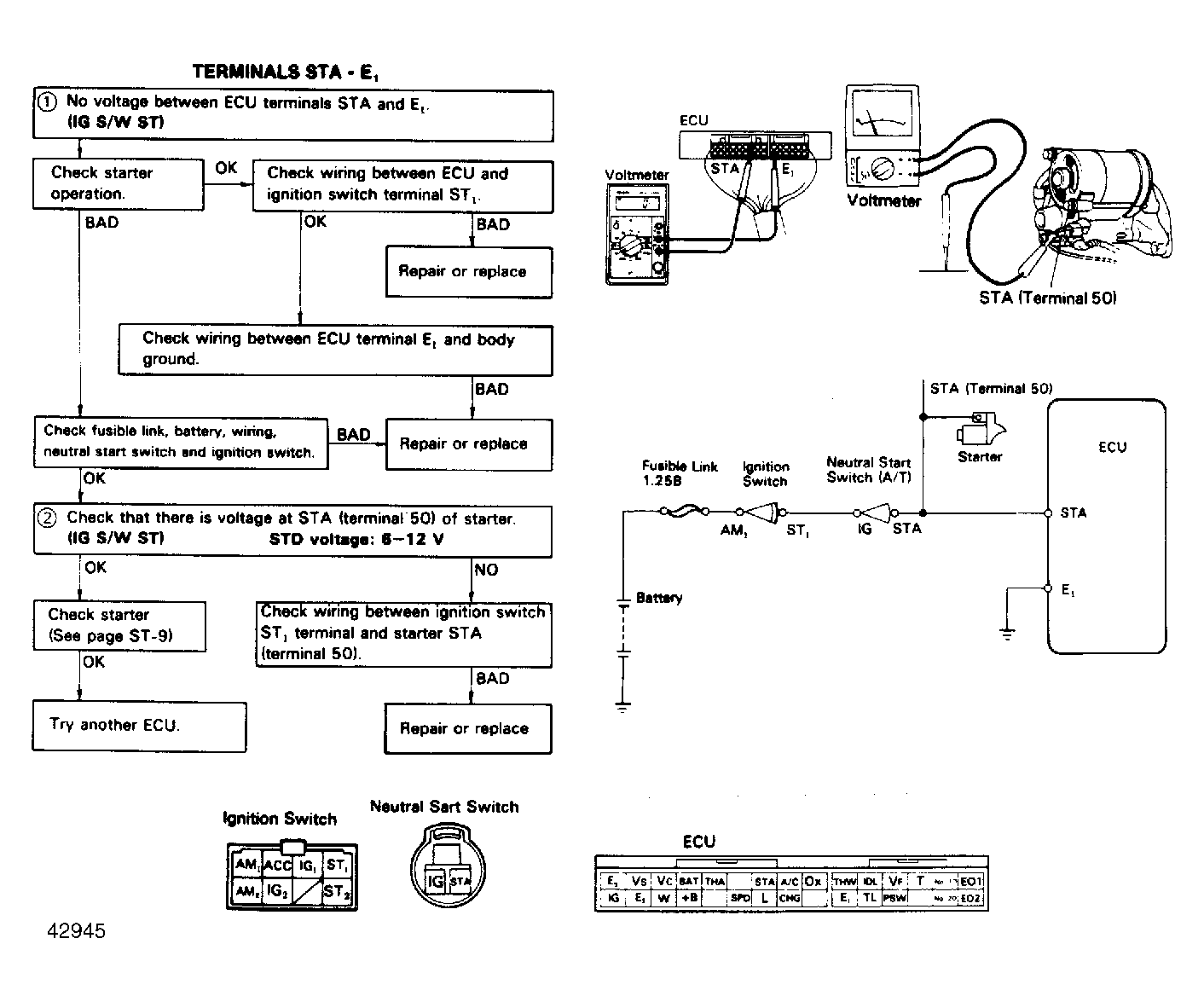

Fig 2: Terminals STA - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
