Trouble Code 6 Blinks Rpm Signal

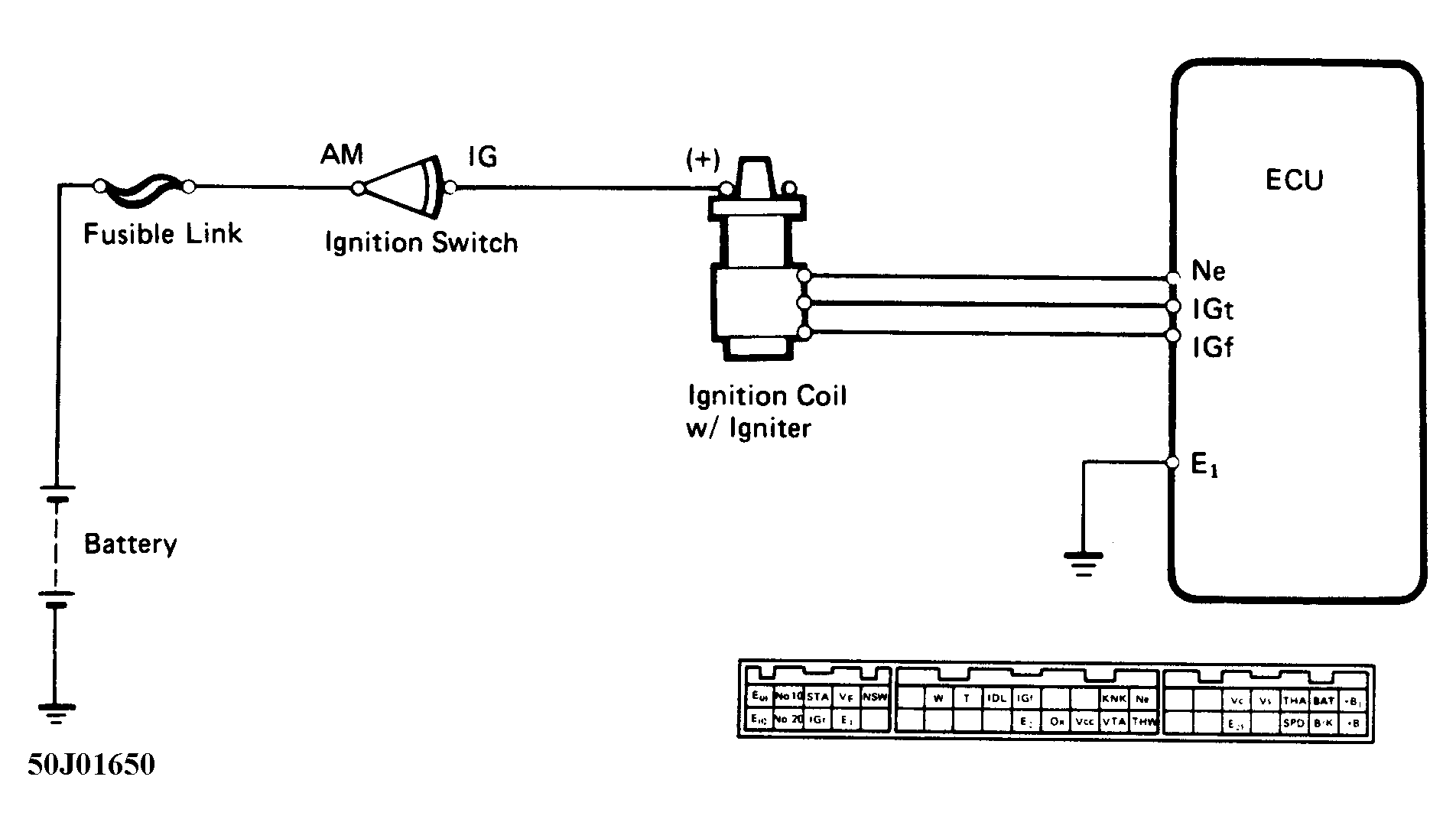

Fig 1: Trouble Code 6, Schematic, Blinks RPM Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

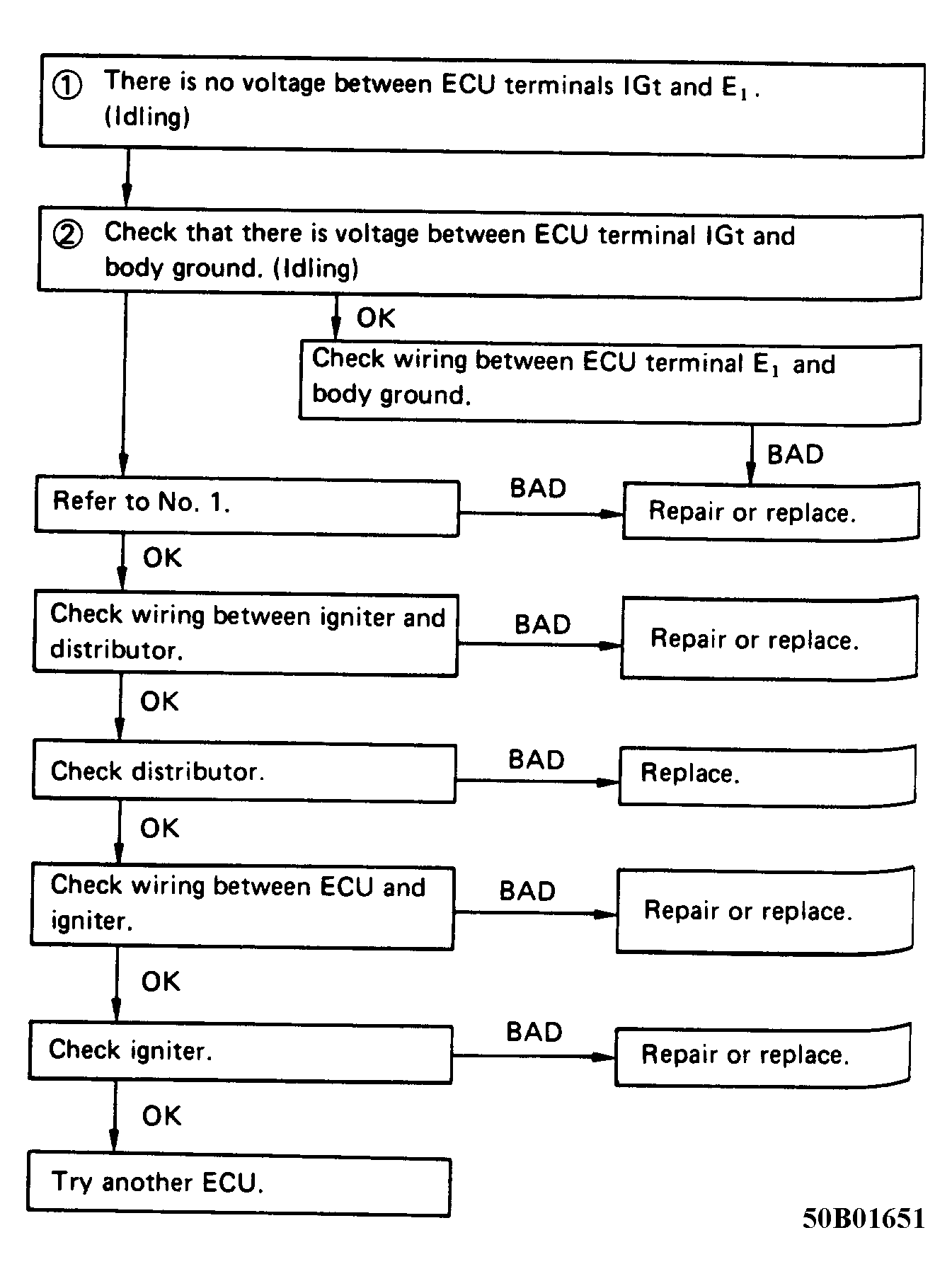

Fig 2: Trouble Code 6, Flow Chart, Blinks RPM Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
