Feedback Carburetor System
›
Wiring Diagrams
Wiring Diagrams

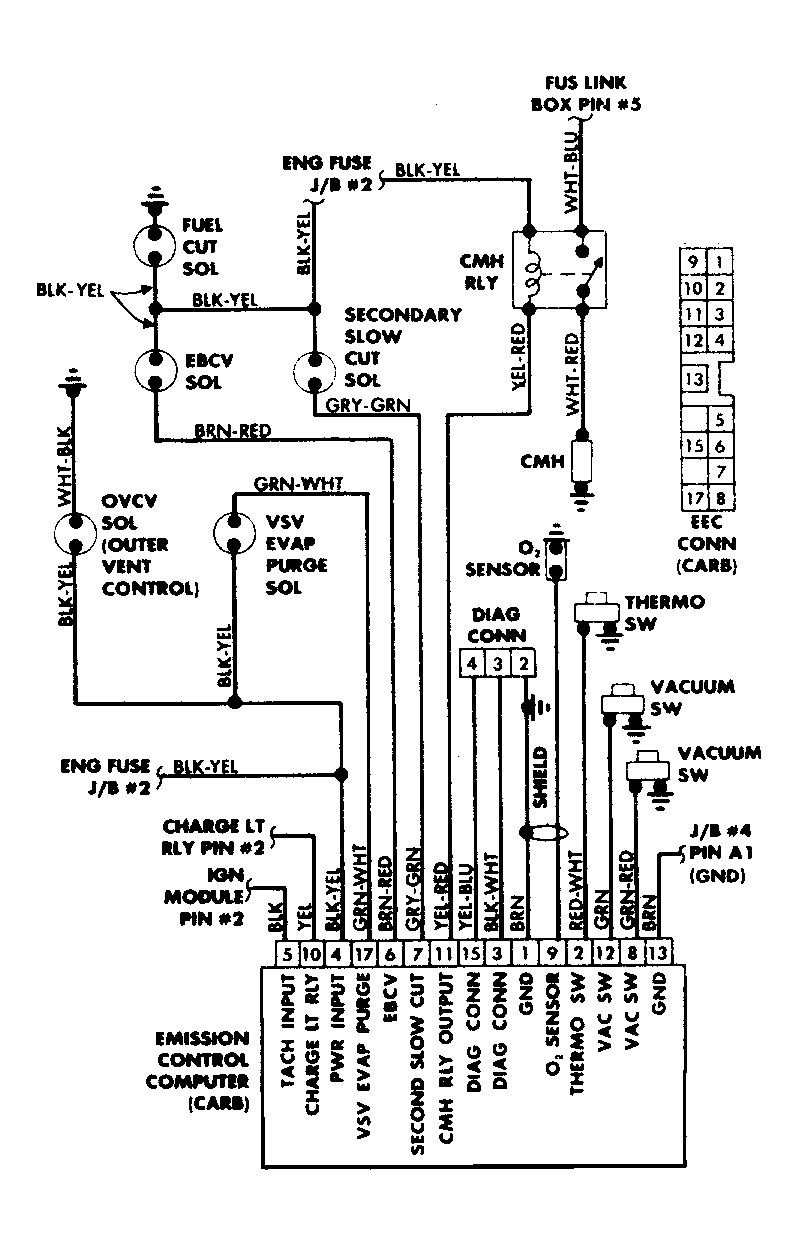

Fig 1: Computer Controlled Emission System Wiring Diagram (FWD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

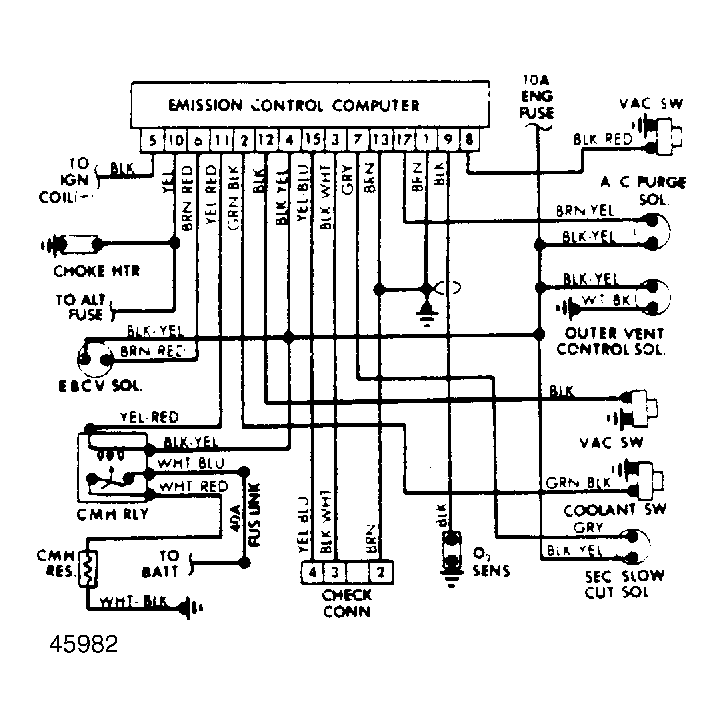

Fig 2: Computer Controlled Emission System Wiring Diagram (RWD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
