Corolla LE, 4D Sedan, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
TCCS System (RWD)
›
System Testing
›
Trouble Code 7 Blinks TPS Sensor & Circuit
Trouble Code 7 Blinks TPS Sensor & Circuit

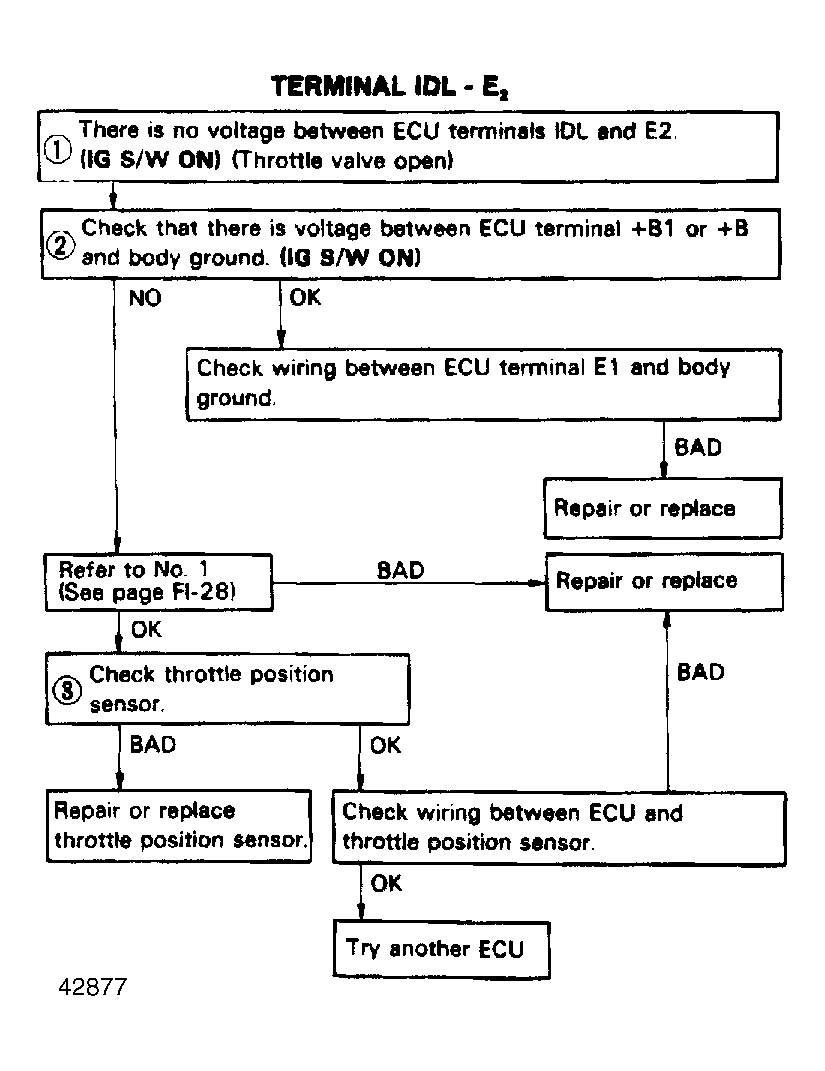

Fig 1: Terminal IDL - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

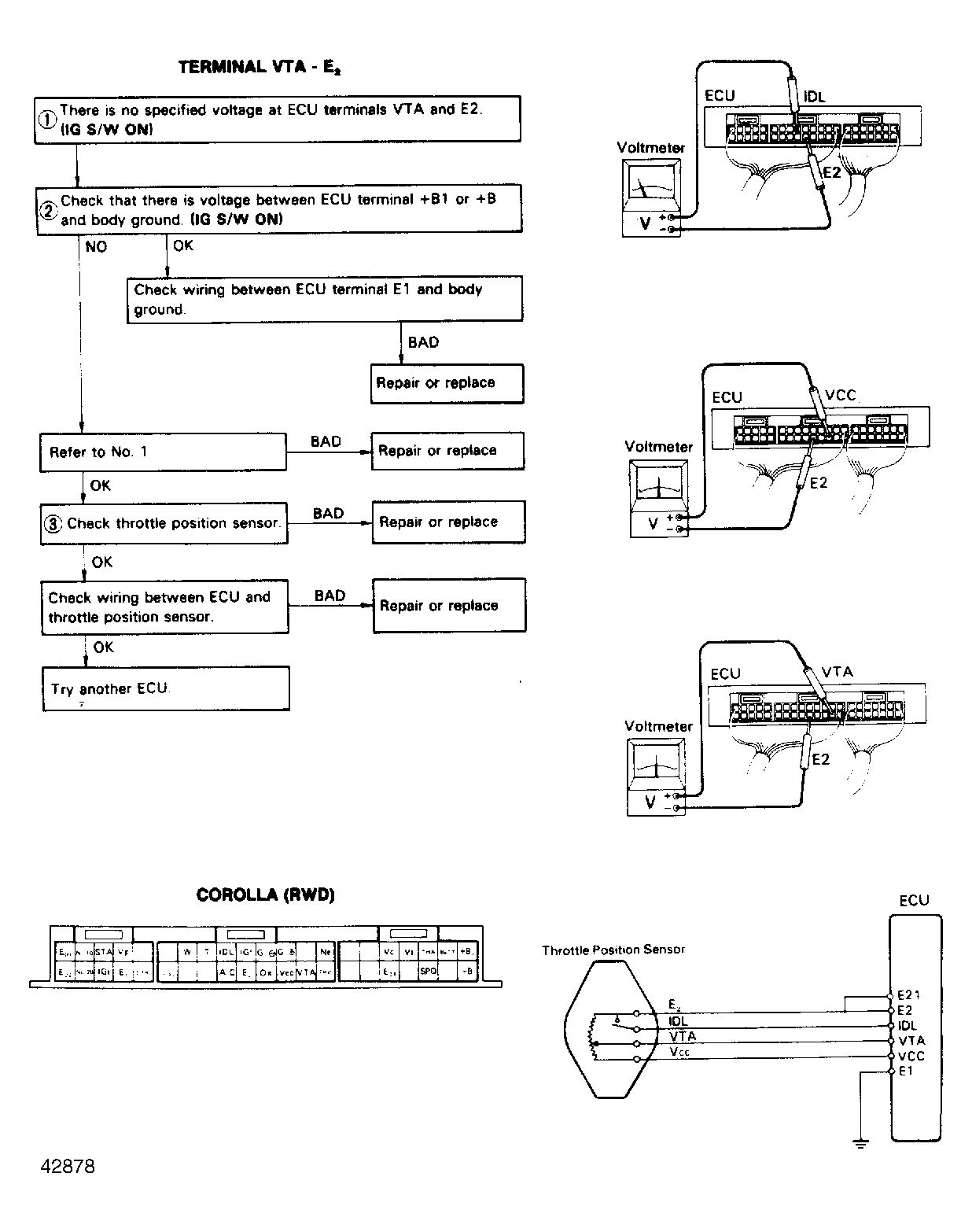

Fig 2: Terminal VTA - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
