Choke Unloader

Fully open primary throttle valve, insert angle gauge and measure choke valve angle. Angle should measure 50°. Bend primary throttle arm to adjust. See Fig 1.

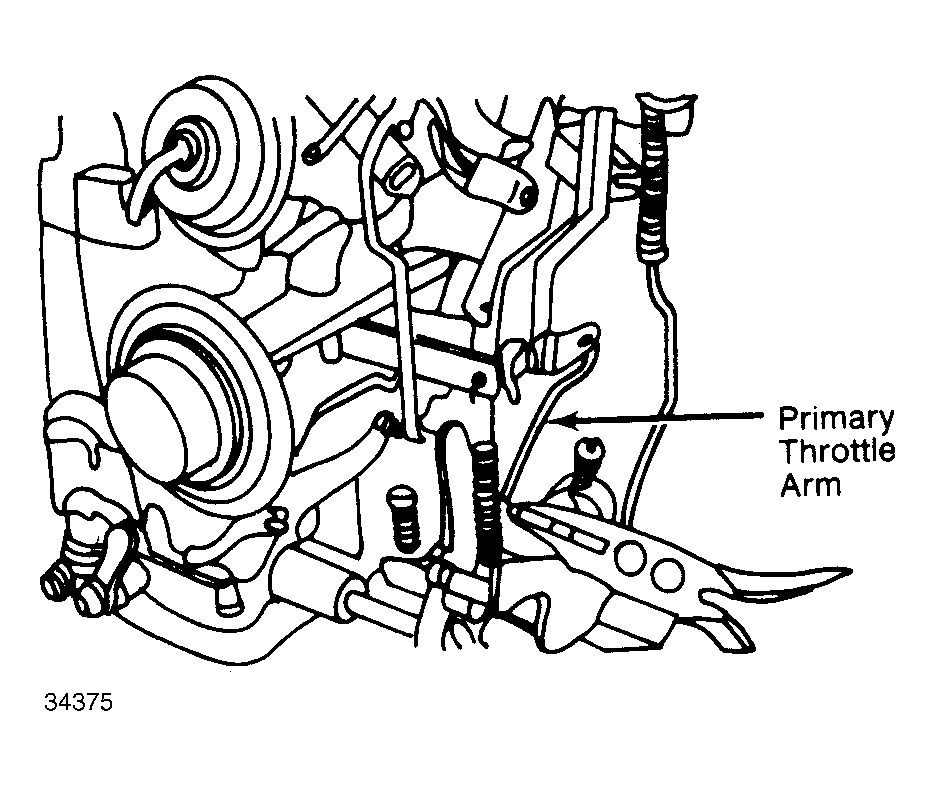

Fig 1: Choke Unloader Adjustment Bend primary throttle arm to adjust.
