Component Locations

For component location, refer to illustration. See Fig 1 and Fig 2 .

NOTE: Power door lock control relay is located in passenger door.

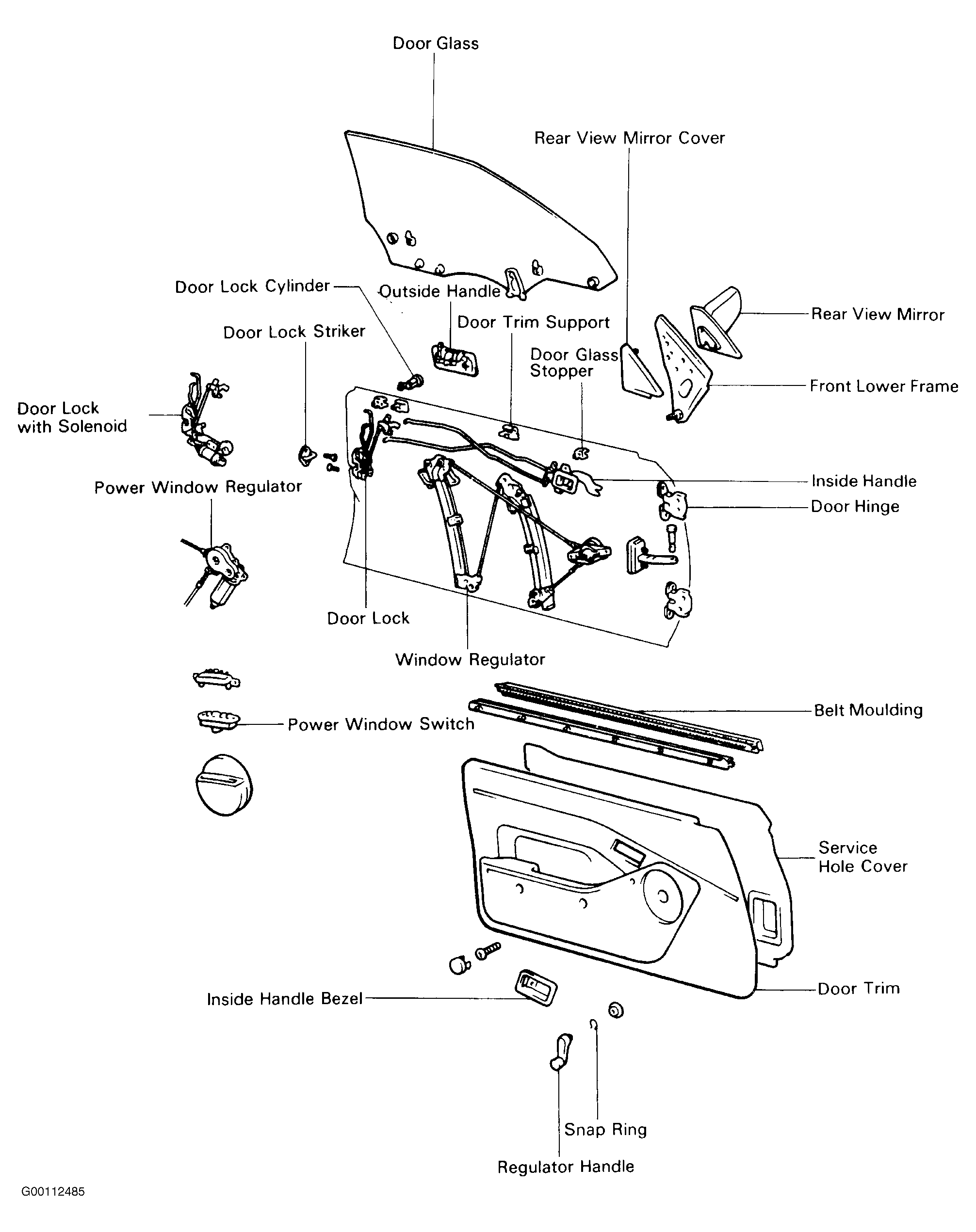

Fig 1: Exploded View Of Front Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Power Door Lock Circuit Breaker
