Trouble Code 6 Blinks Rpm Signal
Trouble Code 6 Blinks Rpm Signal

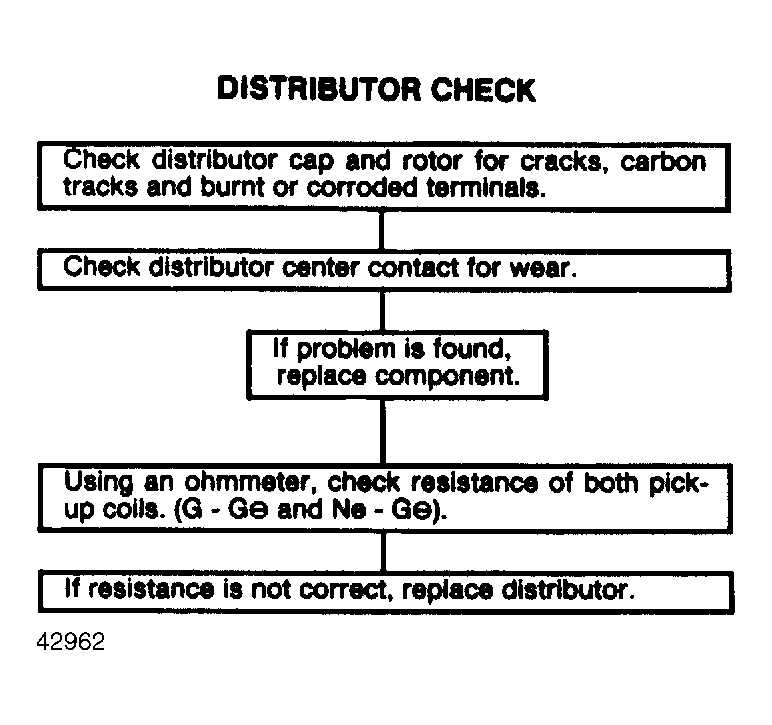

Fig 1: Distributor Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

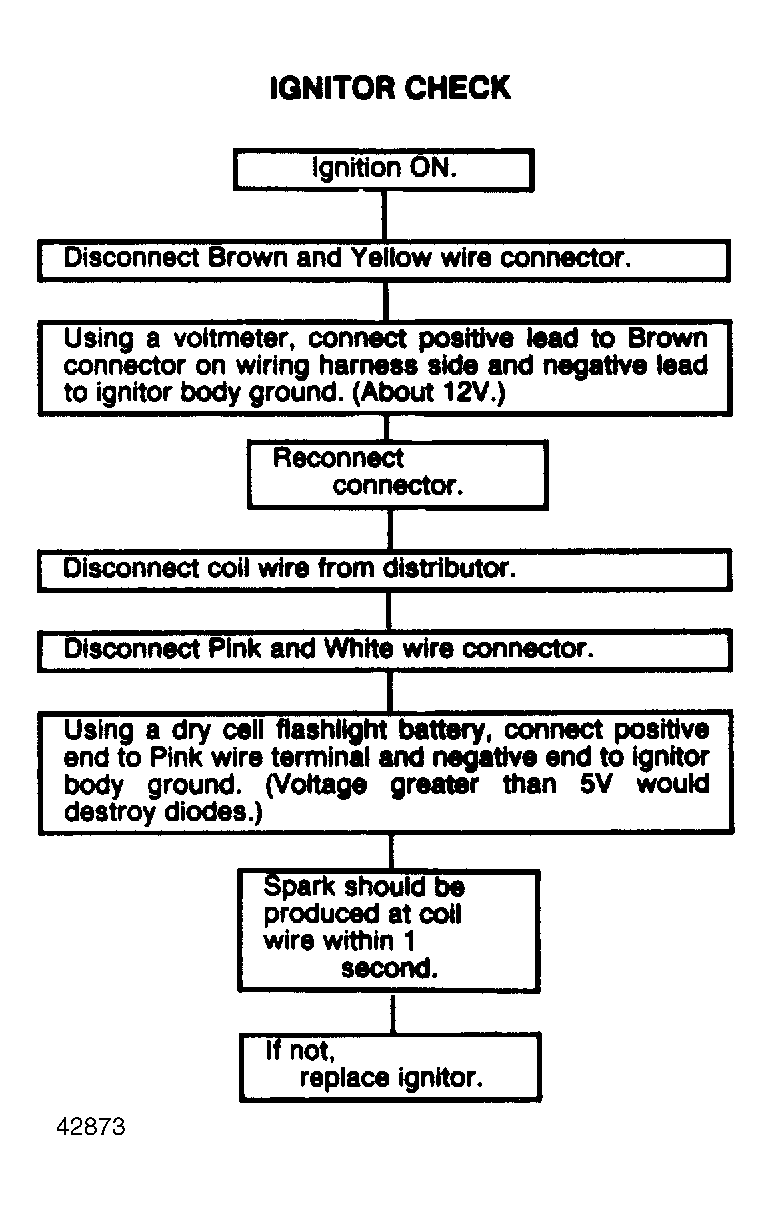

Fig 2: Ignitor Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
