Trouble Code 7 Blinks TPS Sensor & Circuit
Trouble Code 7 Blinks TPS Sensor & Circuit
Fig 1: Terminal Vcc - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

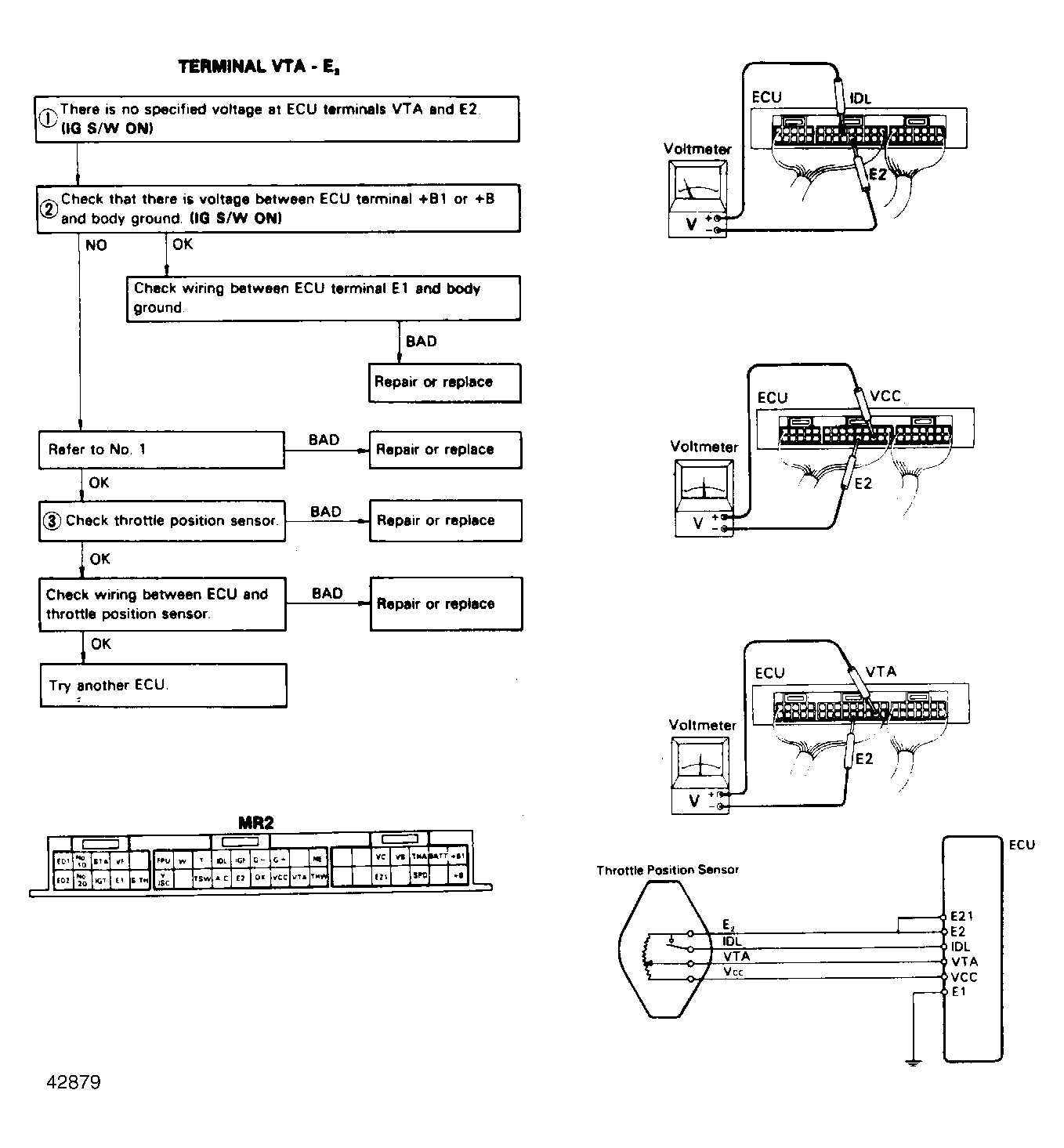

Fig 2: Terminal VTA - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
