Trouble Code 8 Blinks Intake Air Temp. Sensor & Circuit

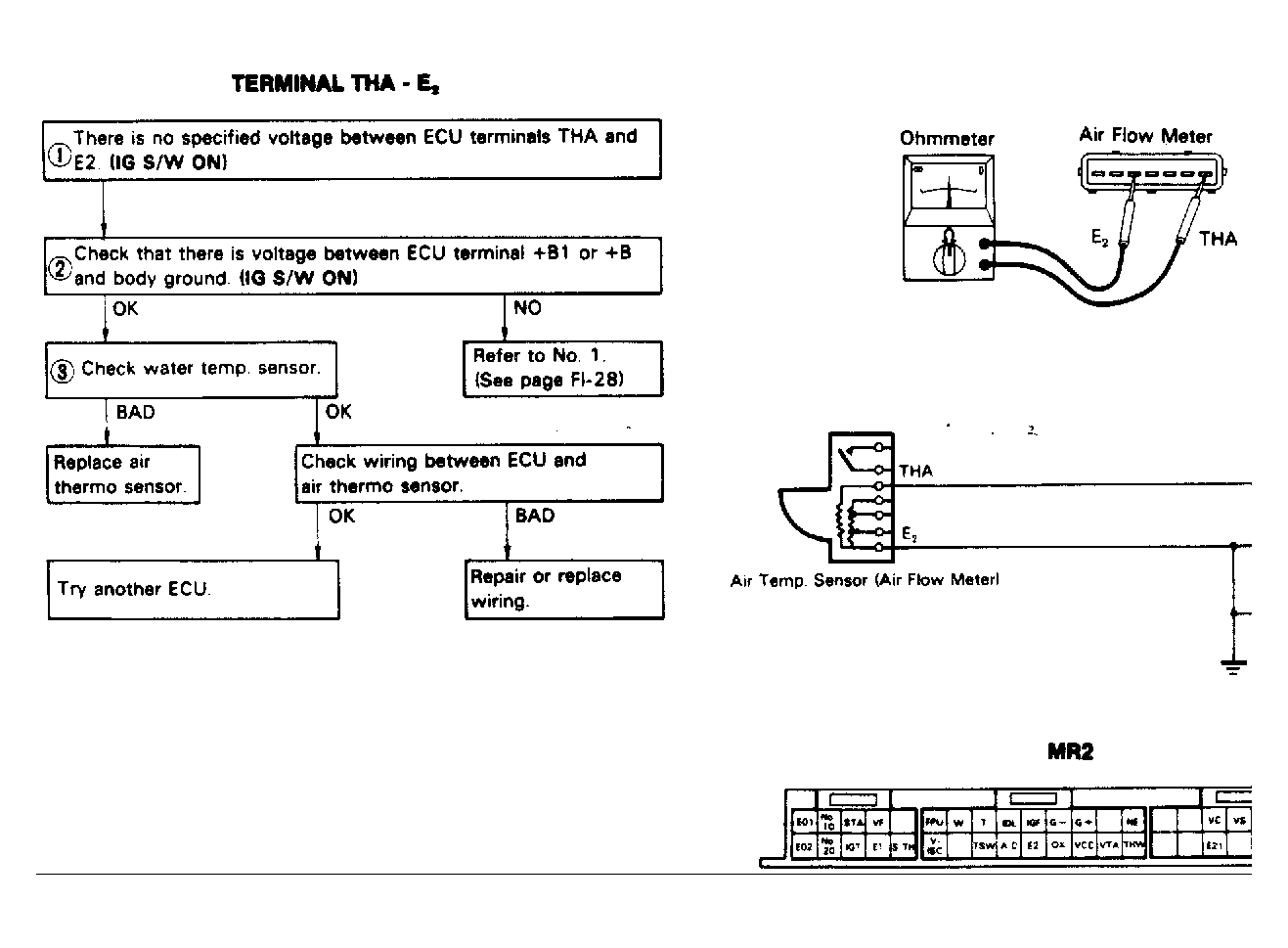

Fig 1: Terminals THA - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
