Component Locations

For component locations, refer to illustrations. See Fig 1 or Fig 2 .

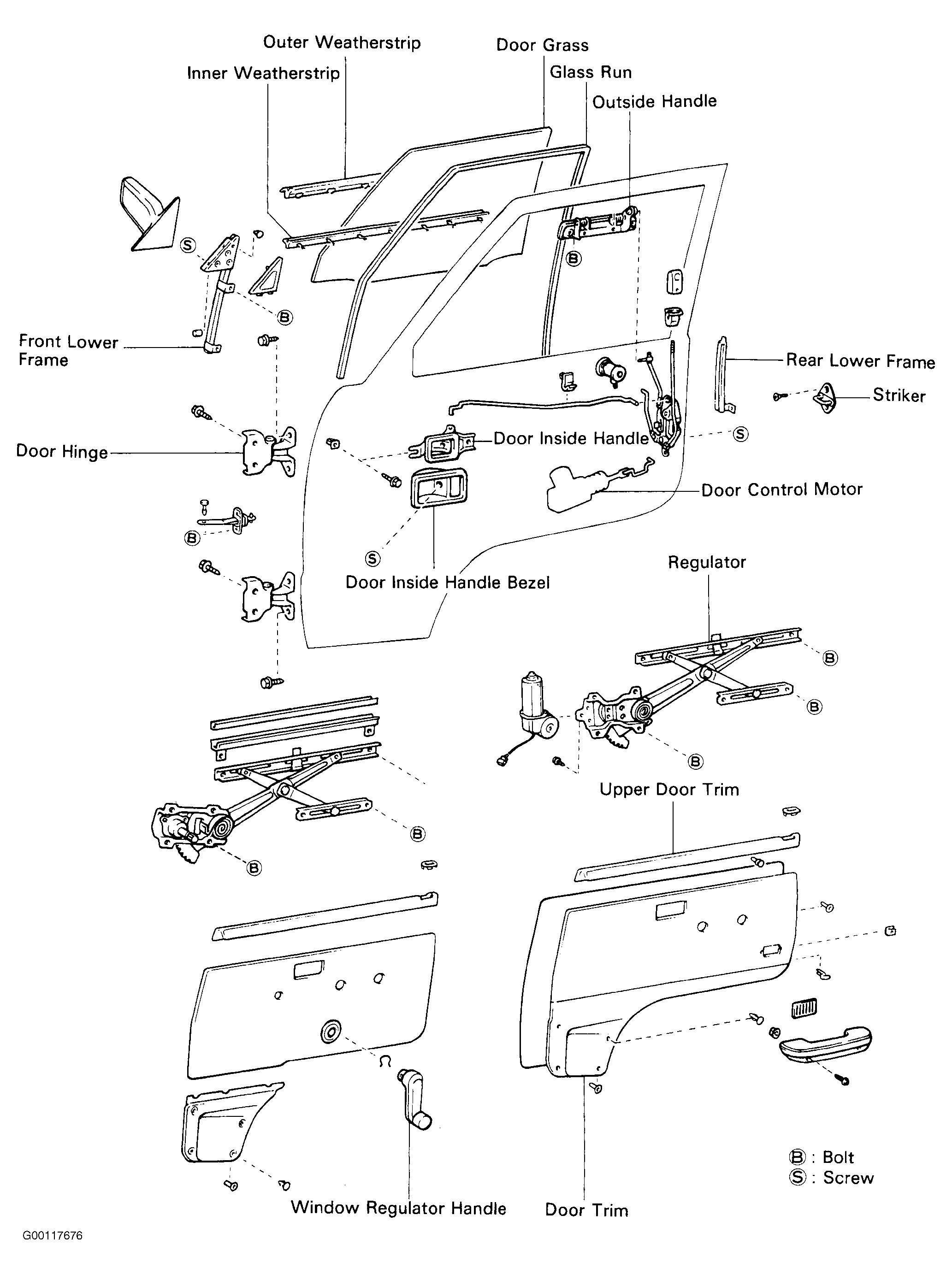

Fig 1: Locating Front Door Components (1984-85)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

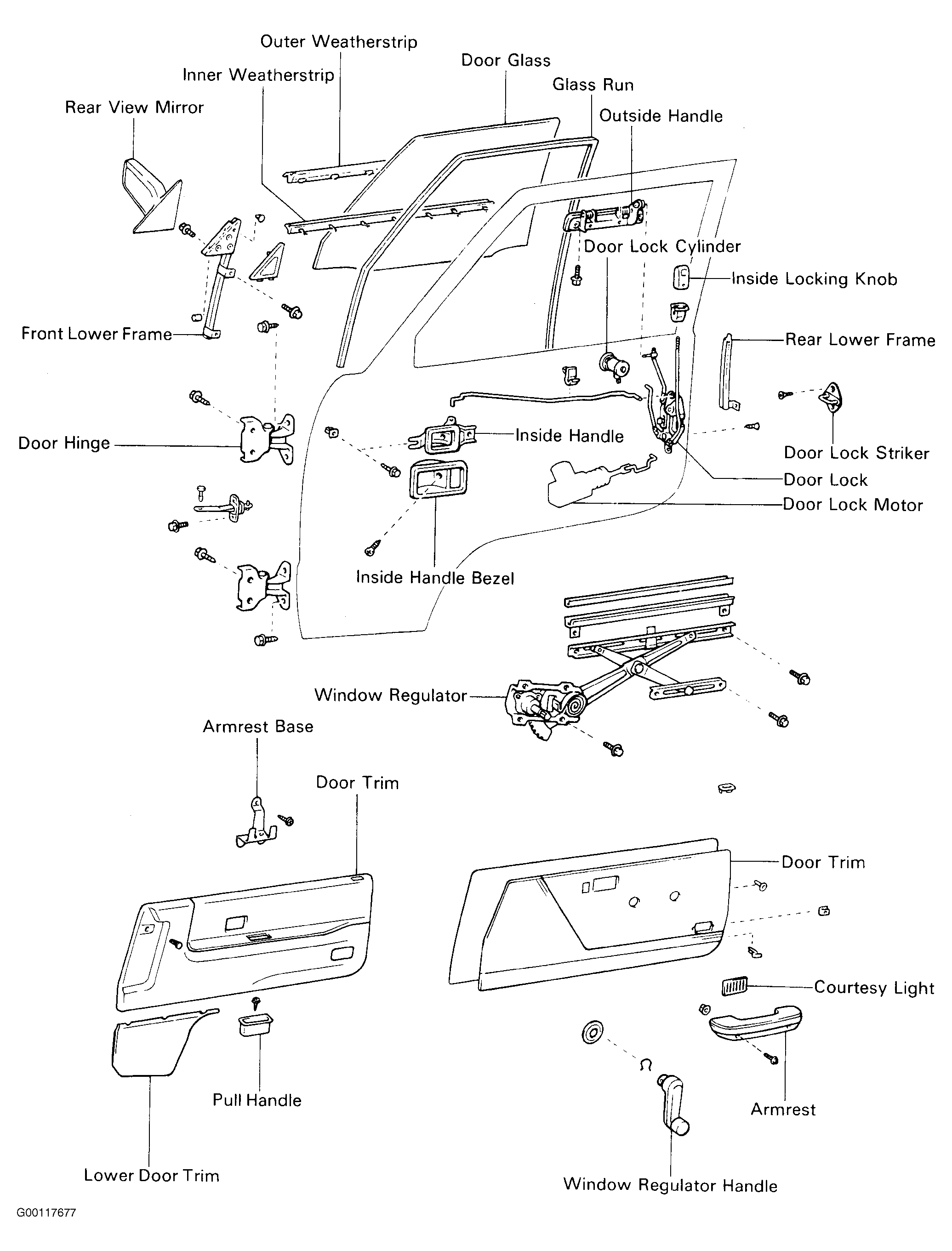

Fig 2: Locating Front Door Components (1986)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
