Charge Warning System Check
Charge Warning System Check

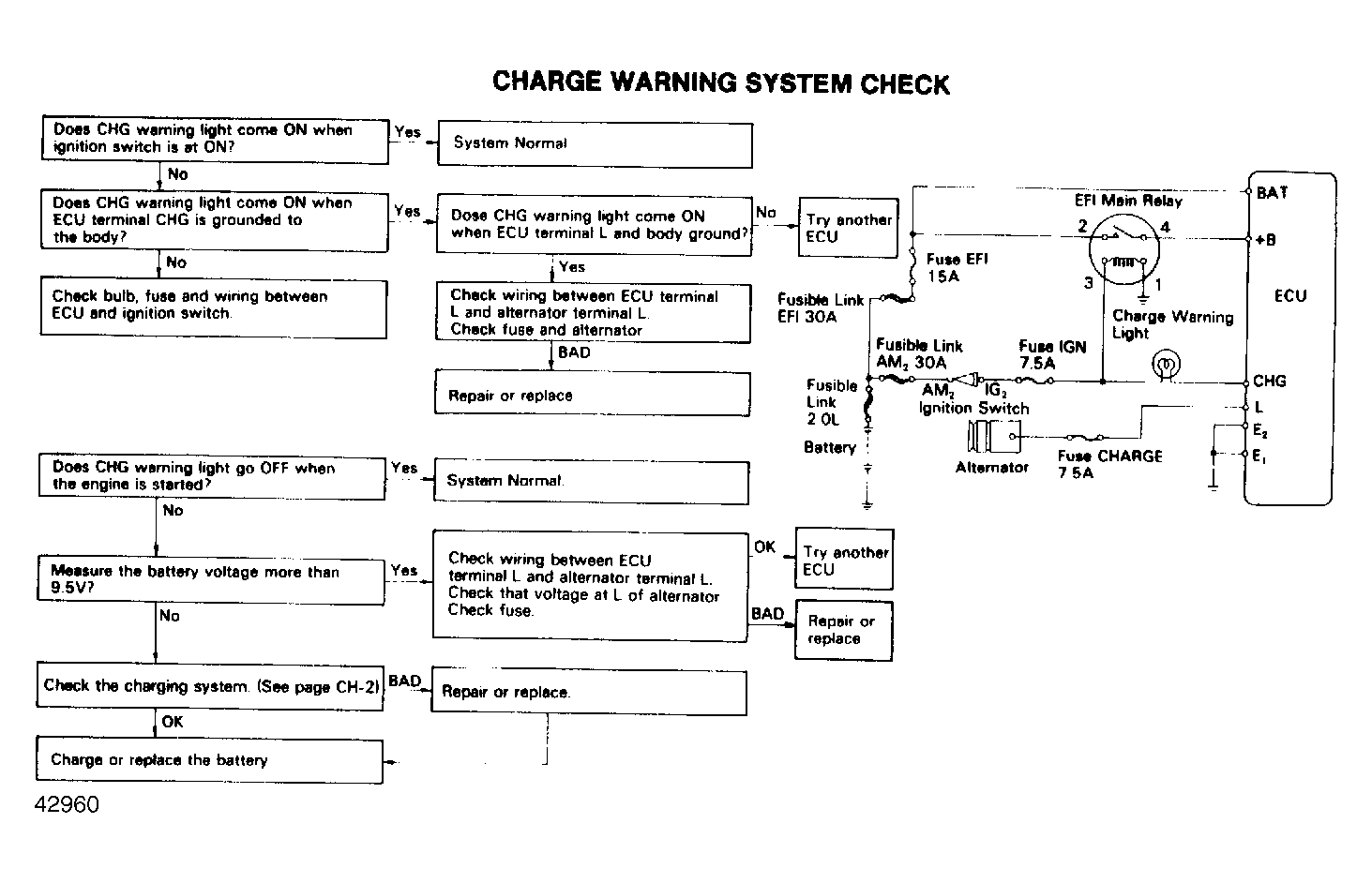

Fig 1: Charge Warning System Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
