Engine Performance
›
System
›
ECS CEC System
›
System Testing
›
EFI Circuit Check
EFI Circuit Check

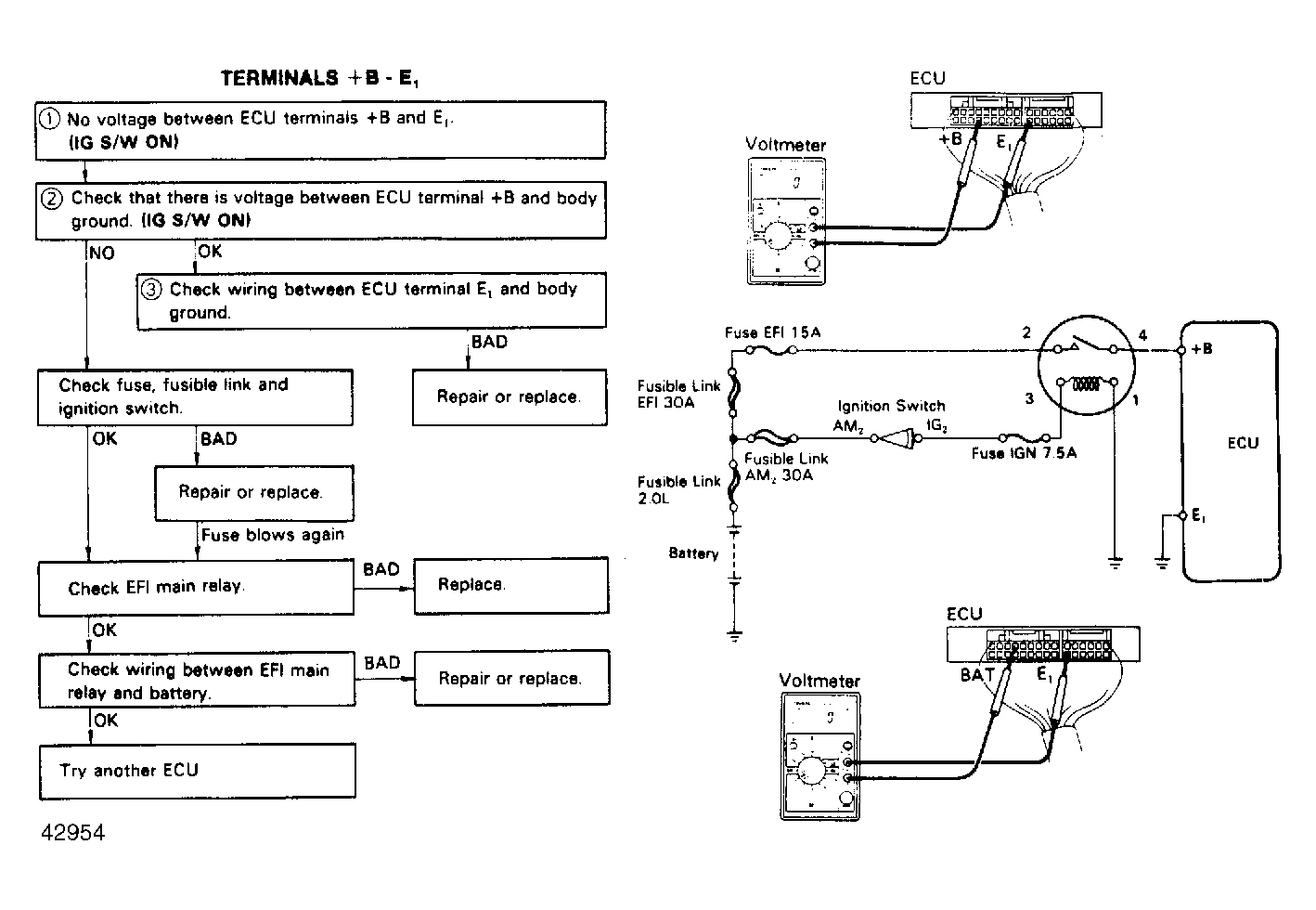

Fig 1: Terminals + B - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

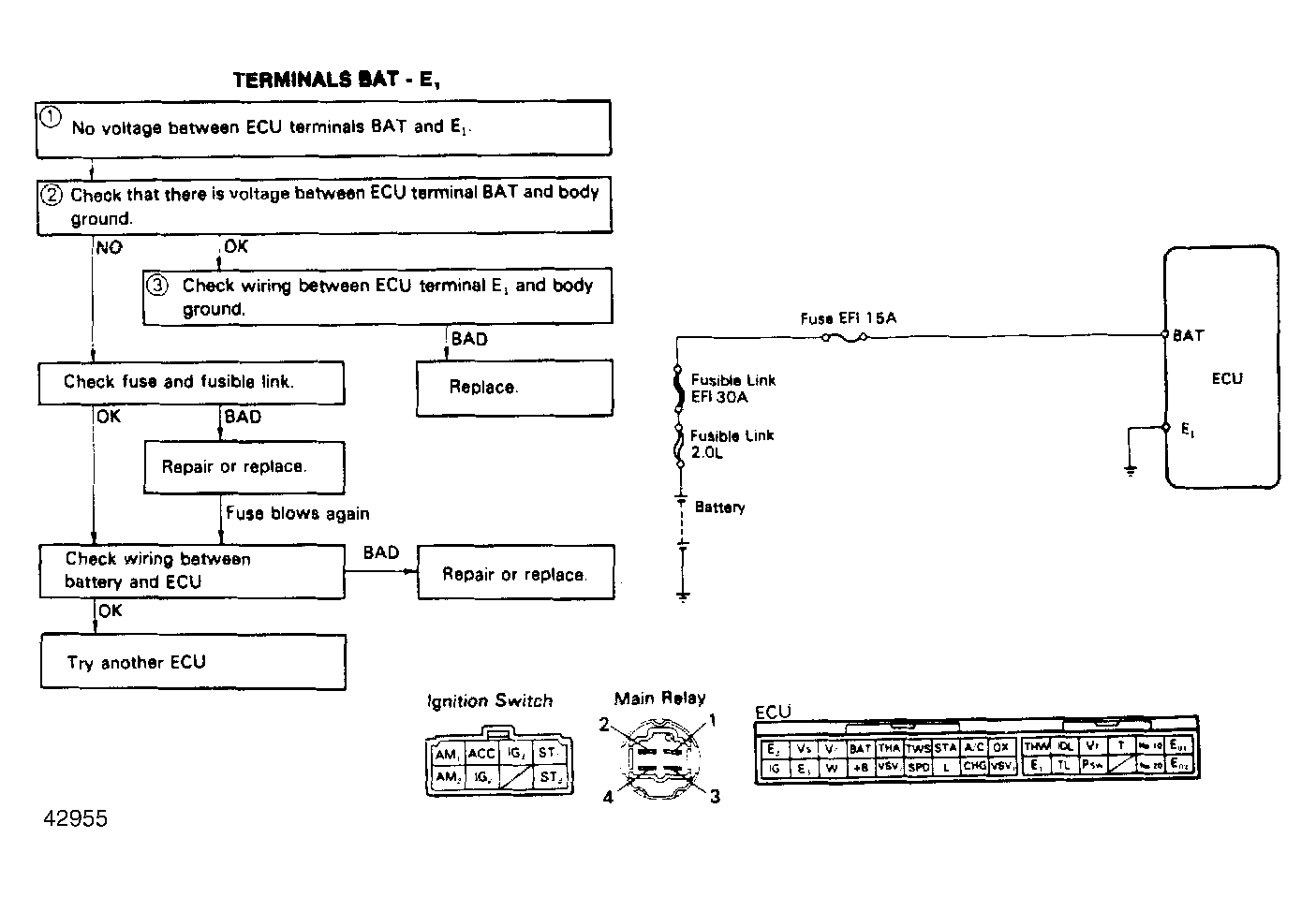

Fig 2: Terminals BAT - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
