Miscellaneous Components

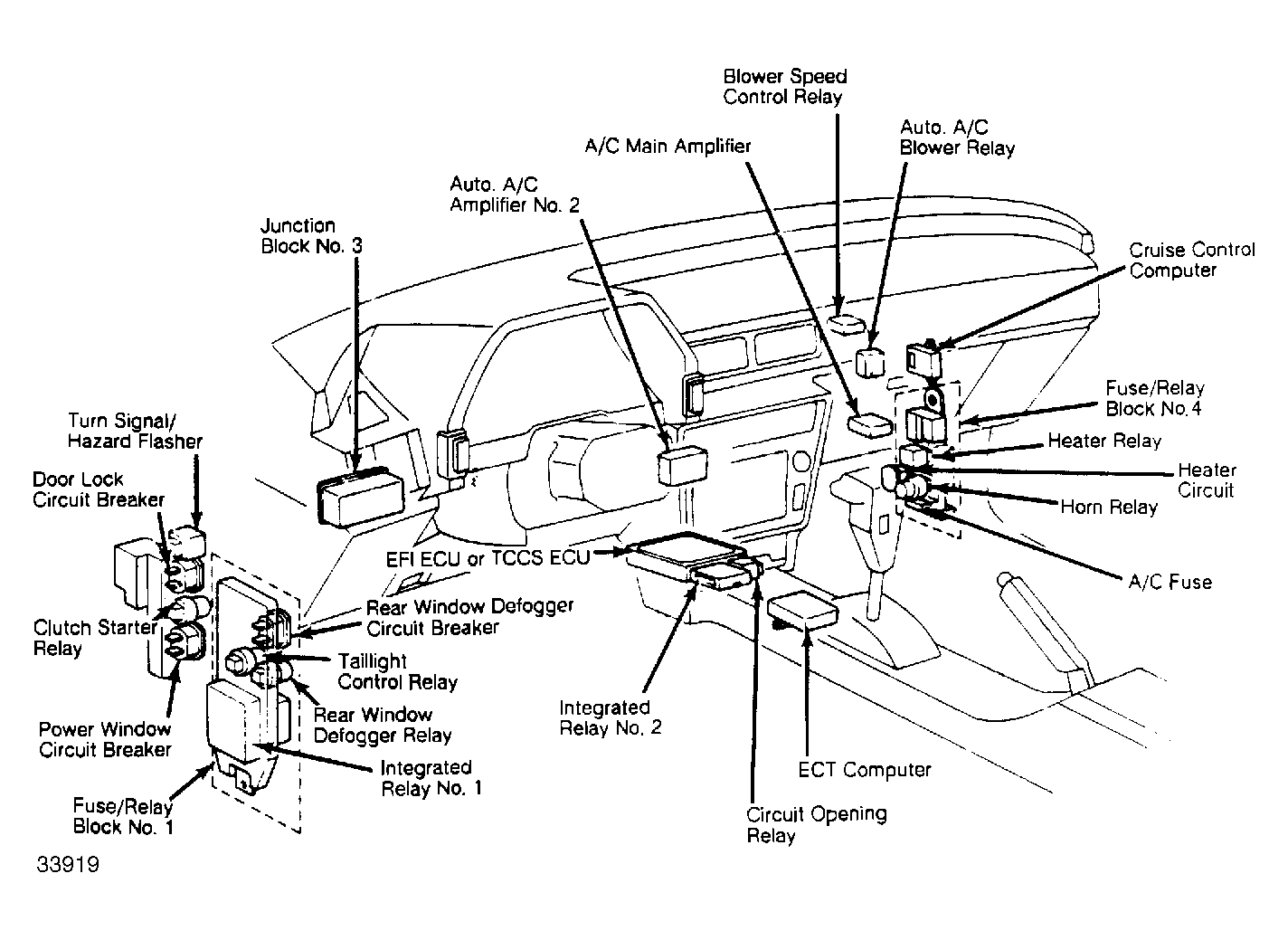

MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C Air Mix Power Servo | Behind center of the dash. | |
| A/C Fuse | On fuse/relay block No. 4. See Figure & Figure . | |
| A/C Main Amplifier | Behind the glove box, attached to front of cooling unit. See Figure. | |
| A/C Mode Servo | Behind center of the dash. | |
| A/C Recirc Mode Servo | Behind the glove box. | |
| Airflow Meter | On left side of engine compartment, near left shock tower. | |
| Auto. A/C Amplifier No. 2 | Behind center of dash, attached to front of heater unit. See Figure. | |
| Blower Resistor | Behind right side of dash, left of the evaporator housing. | |
| "CHECK ENGINE" Test Connector | Behind front left shock tower. | |
| Circuit Breakers | ||
| Door Lock | On fuse/relay block No. 1. See Figure & Figure . | |
| Heater | On fuse/relay block No. 4. See Figure & Figure . | |
| Power Window | On fuse/relay block No. 1. See Figure & Figure . | |
| Rear Window Defogger | On fuse/relay block No. 1. See Figure & Figure . | |
| Cruise Control Actuator | On right fender apron, in front of right shock tower. See Figure. | |
| EFI Resistor (Single Cam Engine) | Rear left corner of engine compartment. See Figure. | |
| Fuse/Relay Block No. 1 | Behind left kick panel. See Figure & Figure . | |
| Fuse/Relay Block No. 2 | Front left fender apron. See Figure & Figure . | |
| Fuse/Relay Block No. 4 | Behind right kick panel. See Figure & Figure. | |
| Fuse/Relay Block No. 5 | Front left side of engine compartment. See Figure & Figure . | |
| Fusible Link Box | On positive battery terminal. | |
| Junction Block No. 3 | Left side of dash. See Figure. | |
