ISC & Circuit Check

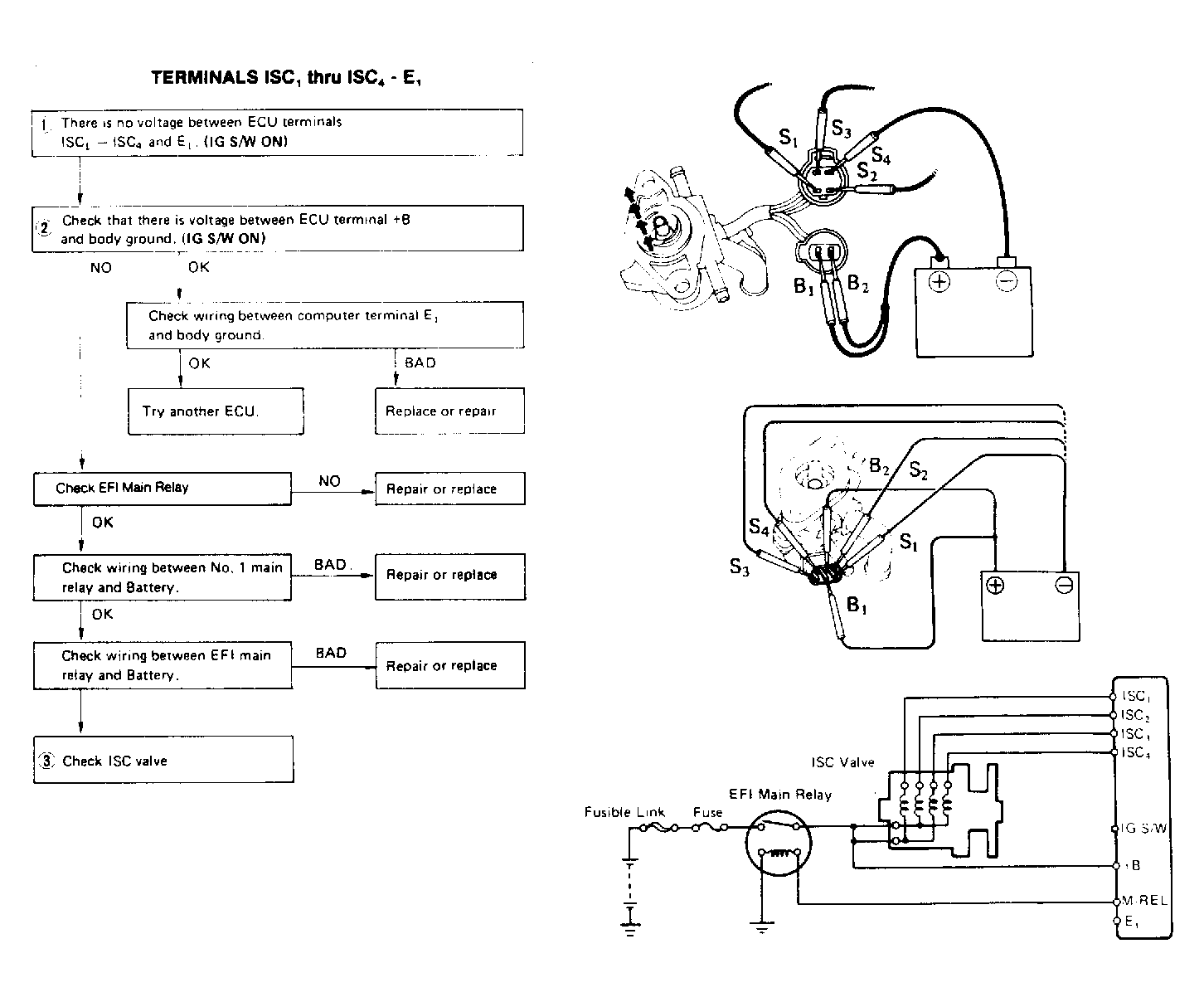

Fig 1: Celica (3S-GE) Terminals ISC1 thru ISC4 & E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
