Injector Circuits Check

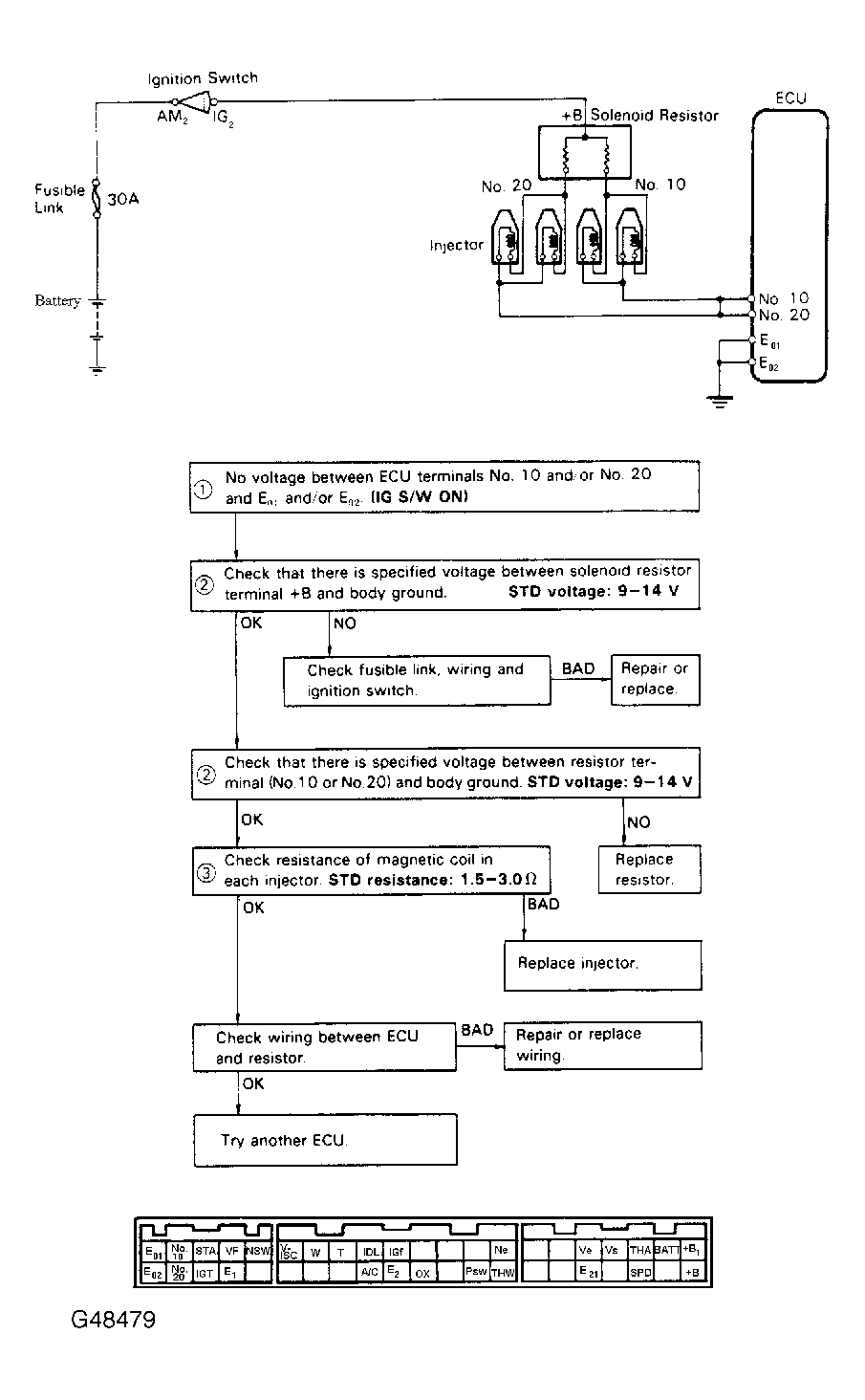

Fig 1: Celica (2S-E) Terminals No. 10 & No. 20 - E1
G48479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

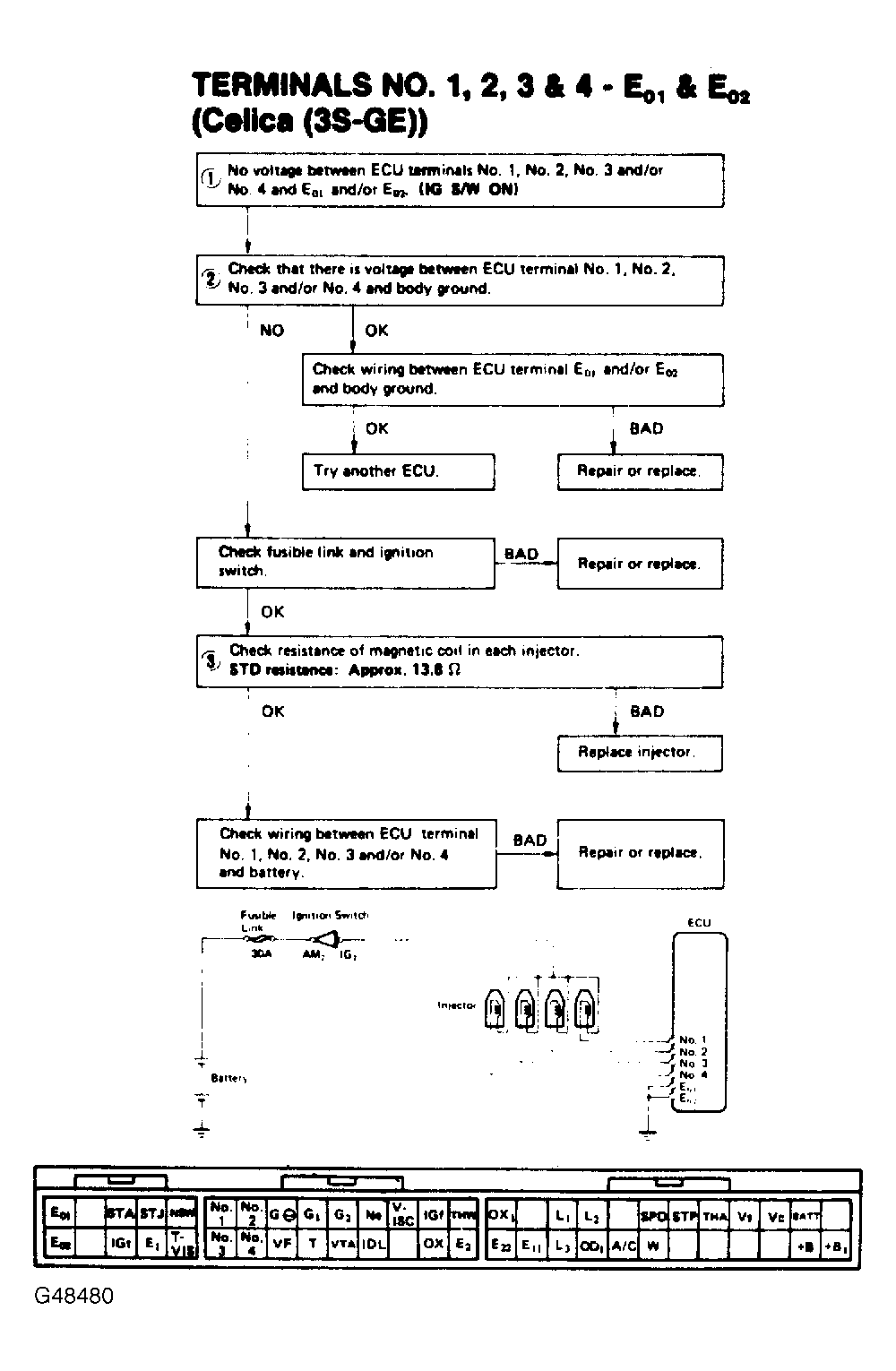

Fig 2: Celica (3S-GE) Terminals No. 1,2, 3 & 4 - E01 & E02
G48480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
