Trouble Code 10 Main Relay & Circuit
Trouble Code 10 Main Relay & Circuit

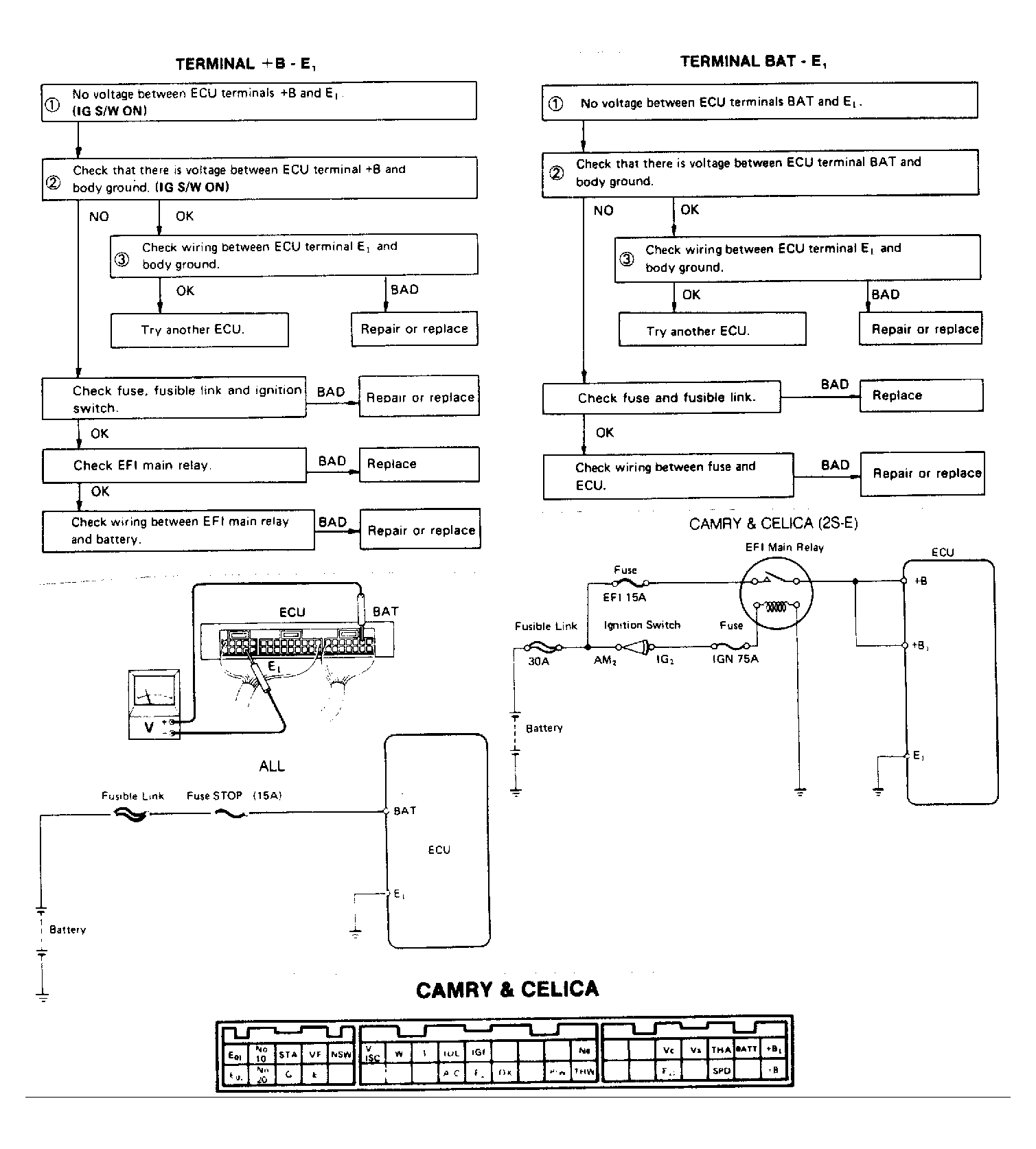

Fig 1: Terminals +B & E1 & Terminals BAT & E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
